GE...SX Series Angular Contact Spherical Plain Bearing
Features of Spherical bearing
| SPECIFICATION | |
| Model | GE25SX |
| Material | Steel / Steel |
| Inner diameter | 25mm |
| Outer diameter | 47mm |
| ball width | 15mm |
| Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
| Application | Agricultural machinery, Shock absorber, etc |
| Package | Tube, carton box, wooden box, pallet |
| Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
| OEM | Accept |
| Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |

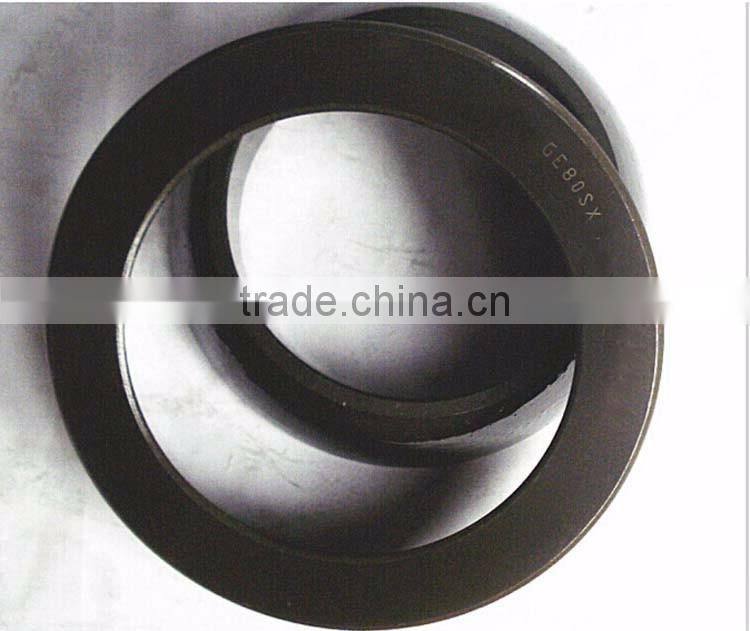

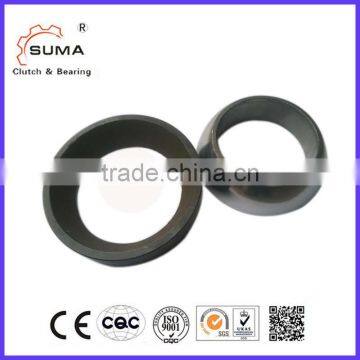

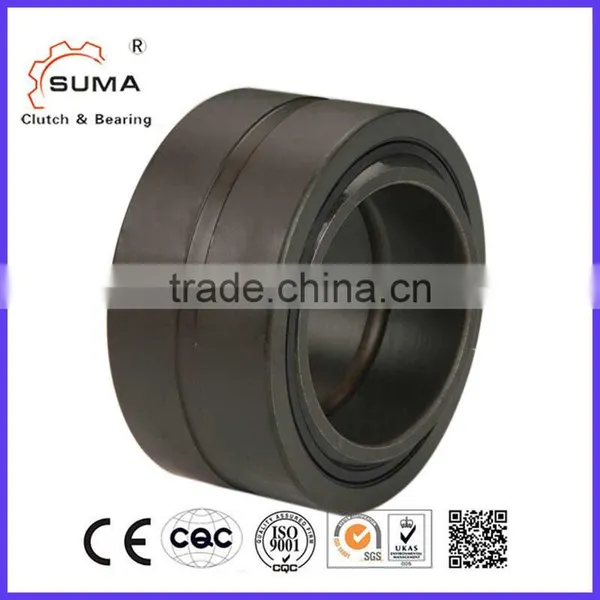

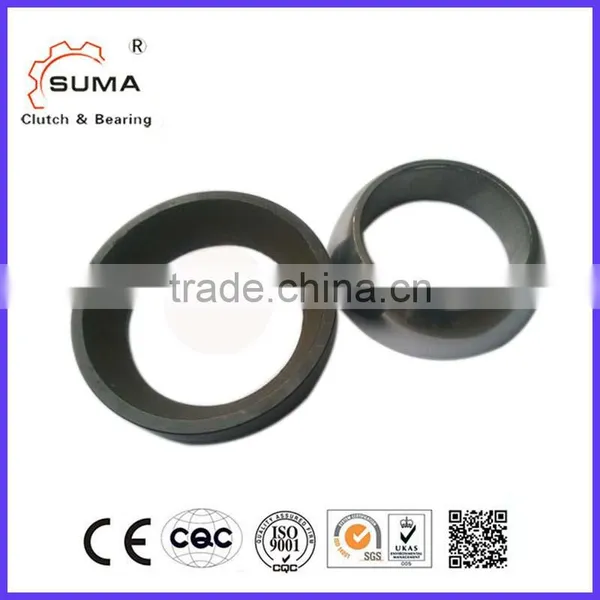

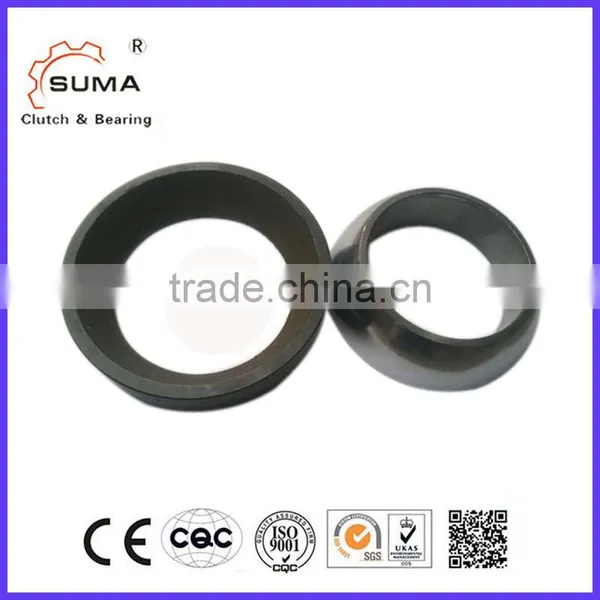

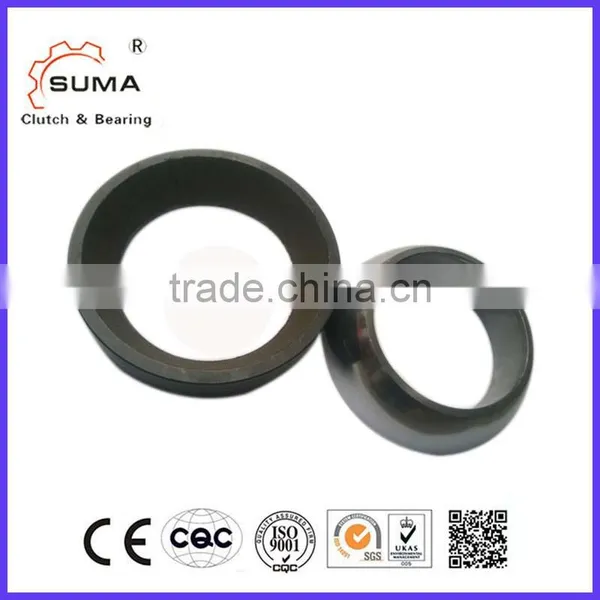

Picture of Spherical Plain Bearing

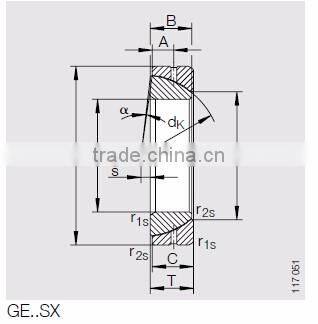

GE... SX Angular Contact Spherical Plain Bearing
| Model | Shaft Diameter | Mass | Dimensions (mm) | Basic load ratings | |||||||
| kg | d | D | T | dk | D1 | B | C | Dyn. | Stat. | ||
| Cr N | Cor . N | ||||||||||
| GE 25 SX | 25 | 0.14 | 25 | 47 | 15 | 42.5 | 31.4 | 14 | 14 | 47800 | 239000 |
| GE 28 SX | 28 | 0.18 | 28 | 52 | 16 | 47 | 35.7 | 15 | 15 | 57500 | 287000 |
| GE 30 SX | 30 | 0.21 | 30 | 55 | 17 | 50 | 36.1 | 16 | 16 | 64600 | 323000 |
| GE 35 SX | 35 | 0.27 | 35 | 62 | 18 | 56 | 42.4 | 17 | 17 | 78500 | 392000 |
| GE 40 SX | 40 | 0.33 | 40 | 68 | 19 | 60 | 46.8 | 18 | 18 | 90600 | 453000 |
| GE 45 SX | 45 | 0.42 | 45 | 75 | 20 | 66 | 52.9 | 19 | 19 | 106000 | 532000 |
| GE 50 SX | 50 | 0.46 | 50 | 80 | 20 | 74 | 59.1 | 19 | 19 | 118000 | 590000 |
| GE 55 SX | 55 | 0.68 | 55 | 90 | 23 | 80 | 62 | 22 | 22 | 149000 | 745000 |
| GE 60 SX | 60 | 0.73 | 60 | 95 | 23 | 86 | 68.1 | 22 | 22 | 160000 | 802000 |
| GE 65 SX | 65 | 0.77 | 65 | 100 | 23 | 92 | 75.6 | 22 | 22 | 173000 | 867000 |
| GE 70 SX | 70 | 1.1 | 70 | 110 | 25 | 102 | 82.2 | 24 | 24 | 208000 | 1040000 |
| GE 80 SX | 80 | 1.5 | 80 | 125 | 29 | 115 | 90.5 | 27 | 27 | 244000 | 1220000 |
| GE 90 SX | 90 | 2.1 | 90 | 140 | 32 | 130 | 103.3 | 30 | 30 | 313000 | 1560000 |
| GE100SX | 100 | 2.3 | 100 | 150 | 32 | 140 | 114.3 | 30 | 30 | 339000 | 1690000 |
| GE110SX | 110 | 3.9 | 110 | 170 | 38 | 160 | 125.8 | 36 | 36 | 469000 | 2340000 |
| GE120SX | 120 | 4 | 120 | 180 | 38 | 170 | 135.4 | 36 | 36 | 498000 | 2490000 |
| GE130SX | 130 | 6.1 | 130 | 200 | 45 | 190 | 148 | 42 | 42 | 622000 | 3110000 |
| GE140SX | 140 | 6.5 | 140 | 210 | 45 | 200 | 160.6 | 42 | 42 | 663000 | 3310000 |
| GE150SX | 150 | 7.9 | 150 | 225 | 48 | 213 | 170.9 | 45 | 45 | 764000 | 3820000 |
| GE160SX | 160 | 9.4 | 160 | 240 | 51 | 225 | 181.4 | 48 | 48 | 872000 | 4360000 |
| GE170SX | 170 | 13 | 170 | 260 | 57 | 250 | 194.3 | 54 | 54 | 1080000 | 5440000 |
| GE180SX | 180 | 17.5 | 180 | 280 | 64 | 260 | 205.5 | 61 | 61 | 1310000 | 6590000 |
| GE190SX | 190 | 18.3 | 190 | 290 | 64 | 275 | 211.8 | 61 | 61 | 1370000 | 6850000 |
| GE200SX | 200 | 23.3 | 200 | 310 | 70 | 290 | 229.2 | 66 | 66 | 1540000 | 7740000 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack spherical plain bearing ?
A: Usually spherical plain bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of spherical plain bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the spherical plain bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
