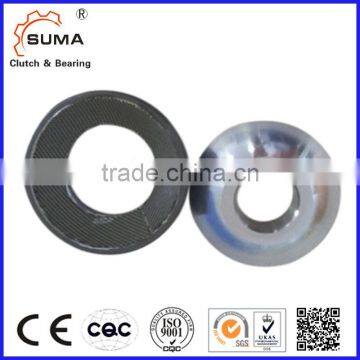

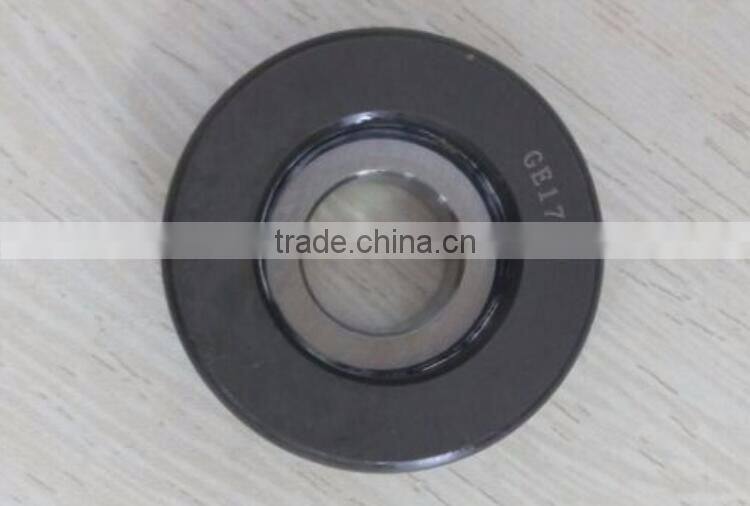

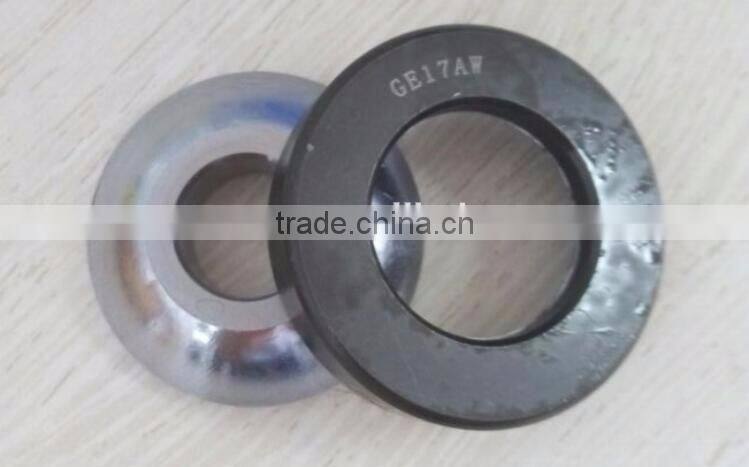

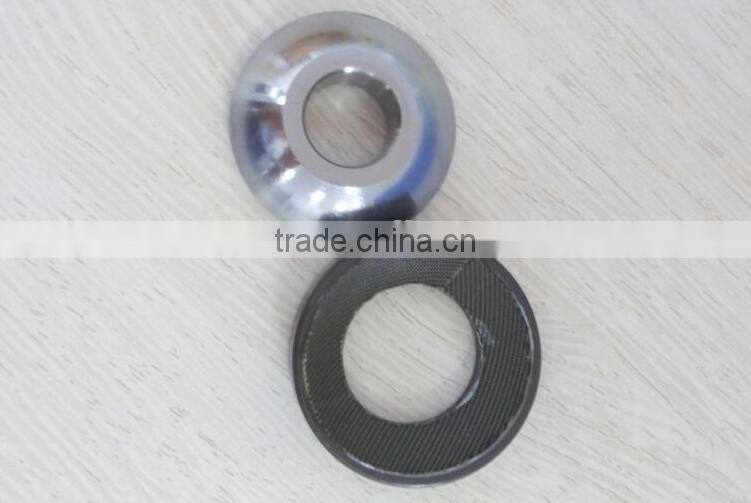

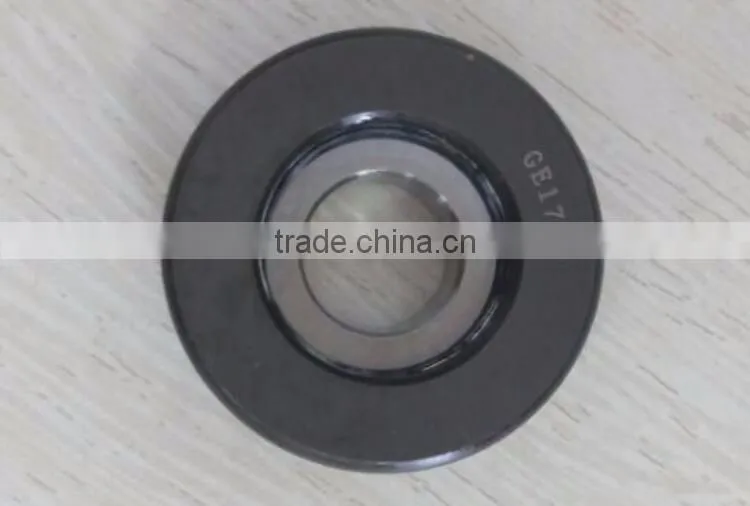

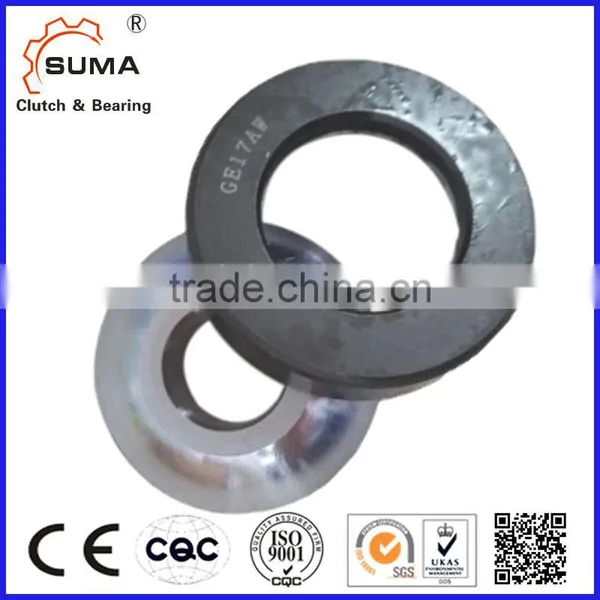

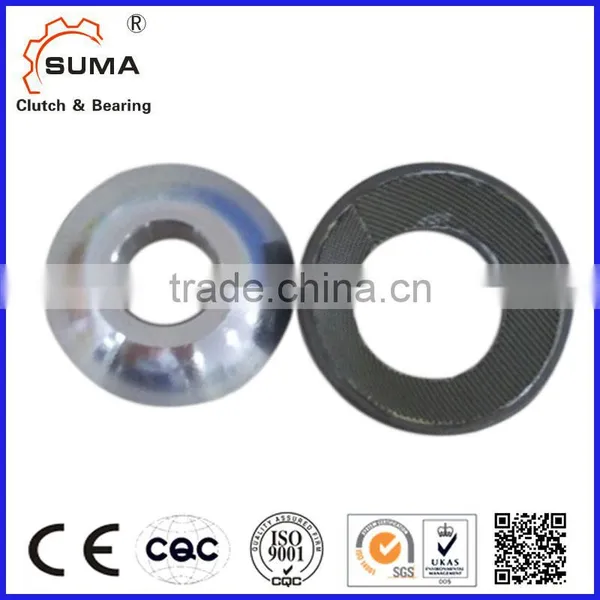

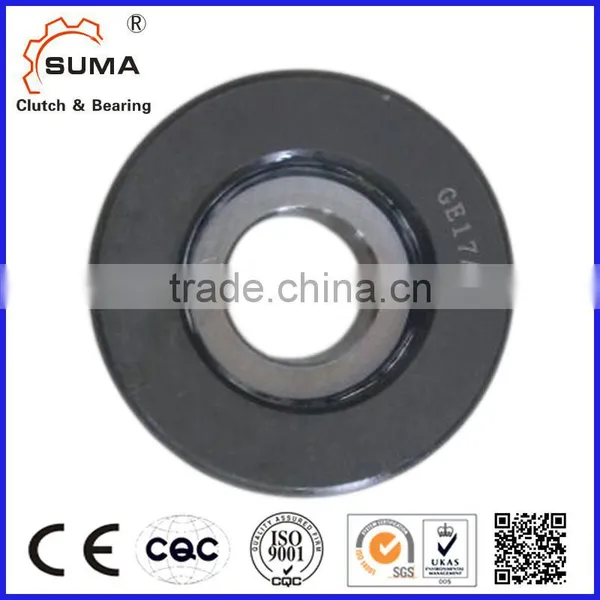

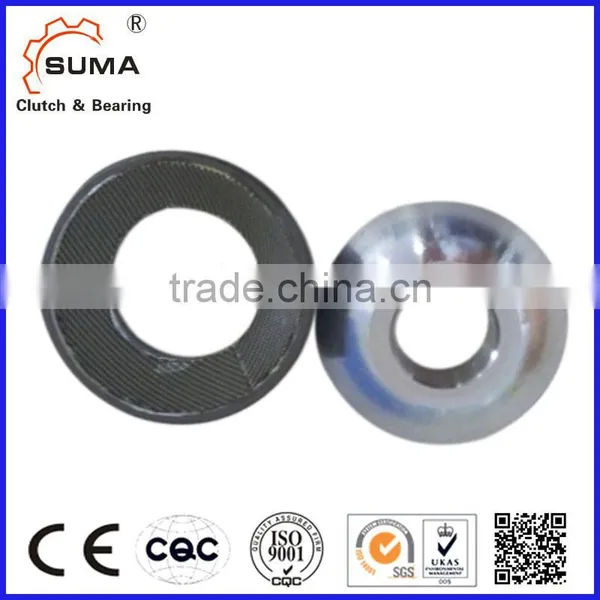

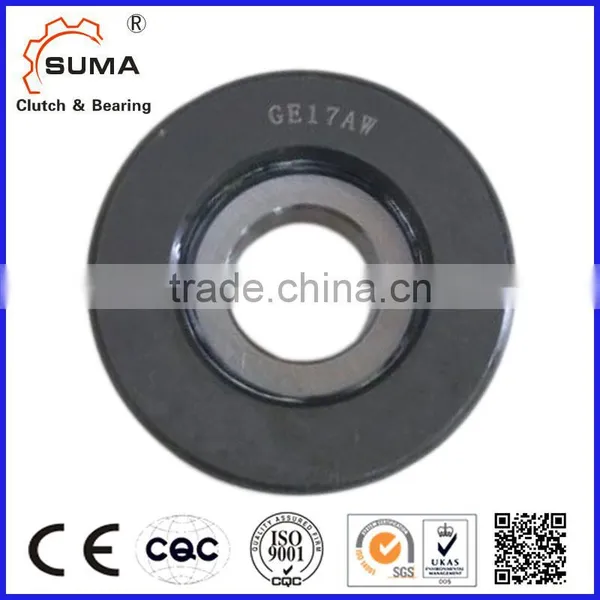

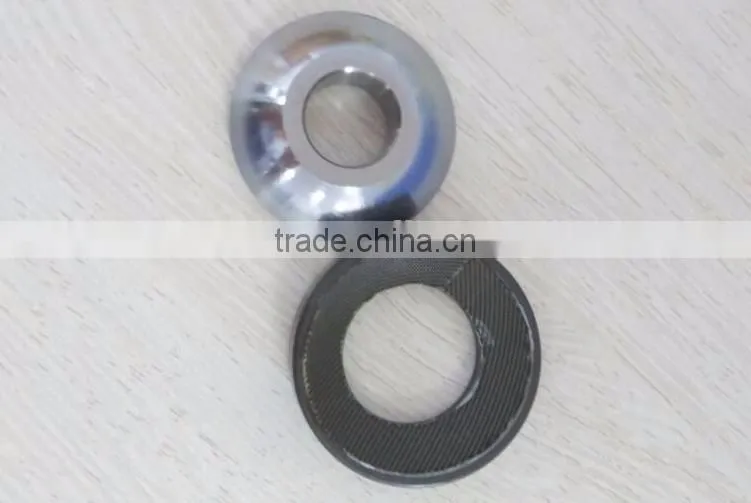

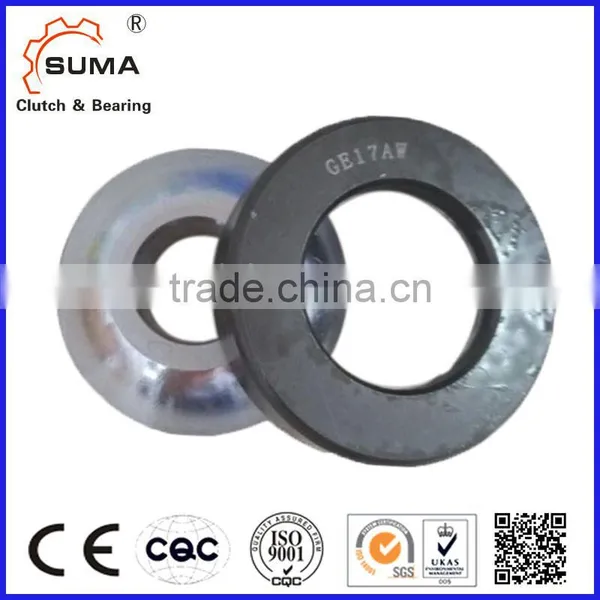

Maintenance Free Bearings Spherical Plain Thrust Bearing
GX140F GX140T
Features of spherical plain bearing GX...T
• Sliding Surface: PTFE Lined Steel Outer on Chrome Plated Ball
• Maintenance Free - Low Friction
• Suitable for single direction Axial (Thrust) Loads or combined Axial & Radial loads
Product name | spherical plain bearing |
Model | GX140F/GX140T |
Material | PTFE/FRP |
Inner diameter | 140mm |
Outer diameter | 260mm |
Thickness | 61mm |
Seals | No |
Weight | 39.82kg |
Application | Hydraulic cylinder, auto shock absorber,chemical equipment |
Package | Wooden box, white tube, etc |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of spherical plain thrust bearings for your choice
| Part # | Ref # | Dimensions (mm) | Load Ratings kN | Weight LBS | |||||||||||
| d | D | B | C | H | dk | S | d1 | D1 | rs,r1s | a | Dynamic | Static | |||
| max | min | min | |||||||||||||
| GX 10F | GX10T | 10 | 30 | 7.5 | 7 | 9.5 | 32 | 7 | 27.5 | 15.5 | 0.6 | 5 | 45 | 90 | 0.079 |
| GX 12F | GX12T | 12 | 35 | 9.5 | 9.3 | 13 | 38 | 8 | 32 | 18 | 0.6 | 5 | 65 | 130 | 0.158 |
| GX 15F | GX15T | 15 | 42 | 11 | 10.8 | 15 | 46 | 10 | 39 | 22.5 | 0.6 | 6 | 95 | 190 | 0.237 |
| GX 17F | GX17T | 17 | 47 | 11.8 | 11.2 | 16 | 52 | 11 | 43.5 | 27 | 0.6 | 4 | 110 | 220 | 0.3 |
| GX 20F | GX20T | 20 | 55 | 14.5 | 13.8 | 20 | 60 | 12.5 | 50 | 31 | 1 | 5 | 150 | 300 | 0.541 |
| GX 25F | GX25T | 25 | 62 | 16.5 | 16.7 | 22.5 | 68 | 14 | 58.5 | 34.5 | 1 | 5 | 245 | 490 | 0.913 |
| GX 30F | GX30T | 30 | 75 | 19 | 19 | 26 | 82 | 17.5 | 70 | 42 | 1 | 5 | 335 | 670 | 1.35 |
| GX 35F | GX35T | 35 | 90 | 22 | 20.7 | 28 | 98 | 22 | 84 | 50.5 | 1 | 5 | 490 | 980 | 2.15 |
| GX 40F | GX40T | 40 | 105 | 27 | 21.5 | 32 | 114 | 24.5 | 97 | 59 | 1 | 6 | 675 | 1350 | 3.5 |
| GX 45F | GX45T | 45 | 120 | 31 | 25.5 | 36.5 | 128 | 27.5 | 110 | 67 | 1 | 6 | 915 | 1830 | 4.93 |
| GX 50F | GX50T | 50 | 130 | 33 | 30.5 | 42.5 | 139 | 30 | 120 | 70 | 1 | 6 | 1040 | 2080 | 6.91 |
| GX 60F | GX60T | 60 | 150 | 37 | 34 | 45 | 160 | 35 | 140 | 84 | 1 | 6 | 1400 | 2800 | 10.19 |
| GX 70F | GX70T | 70 | 160 | 42 | 36.5 | 50 | 176 | 35 | 153 | 94.5 | 1 | 3 | 1590 | 3180 | 11.81 |
| GX 80F | GX80T | 80 | 180 | 43.5 | 38 | 50 | 197 | 42.5 | 172 | 107.5 | 1 | 4 | 1980 | 3920 | 15.2 |
| GX 100F | GX100T | 100 | 210 | 51 | 46 | 59 | 222 | 45 | 198 | 127 | 1.1 | 4 | 2270 | 4540 | 24 |
| GX 120F | GX120T | 120 | 230 | 53.5 | 50 | 64 | 250 | 52.5 | 220 | 145 | 1.1 | 3 | 2560 | 5720 | 30.58 |
| GX 140F | GX140T | 140 | 260 | 61 | 54 | 72 | 274 | 52.5 | 243 | 177 | 1.5 | 3 | 3050 | 6100 | 39.82 |
| GX 160F | GX160T | 160 | 290 | 66 | 58 | 77 | 313 | 65 | 271 | 200 | 1.5 | 2 | 3520 | 6250 | 51.04 |
| GX 180F | GX180T | 180 | 320 | 74 | 62 | 86 | 340 | 67.5 | 299 | 225 | 1.5 | 4 | 4070 | 7220 | 68 |
| GX 200F | GX200T | 200 | 340 | 80 | 66 | 87 | 365 | 70 | 320 | 247 | 1.5 | 4780 | 9150 | 75.24 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the spherical plain thrust bearing gx140t?
A: Usually spherical plain thrust bearing gx140t are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of spherical plain thrust bearing gx140t from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the spherical plain thrust bearing gx140t in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 5-7 days after your order is confirmed.
