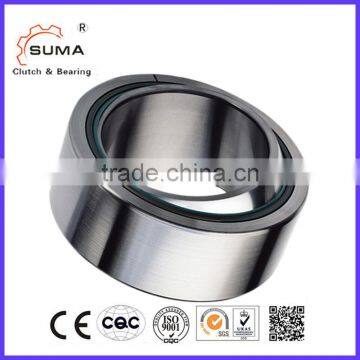

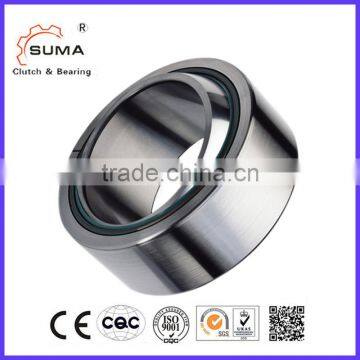

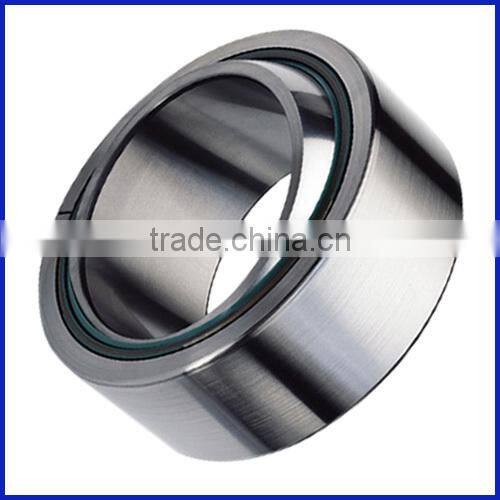

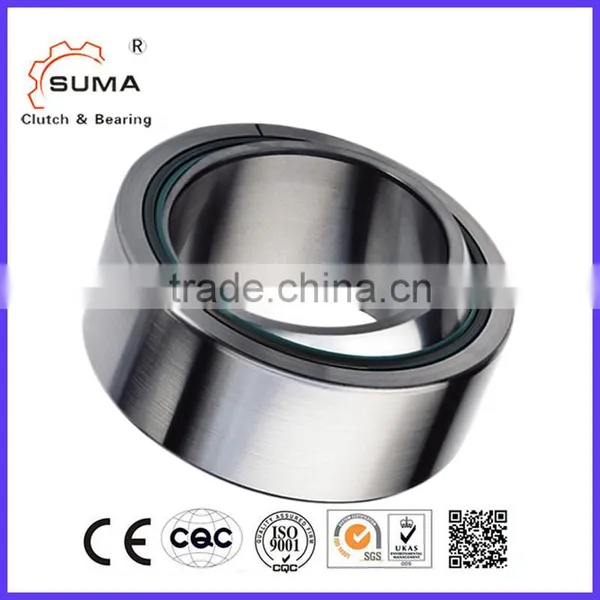

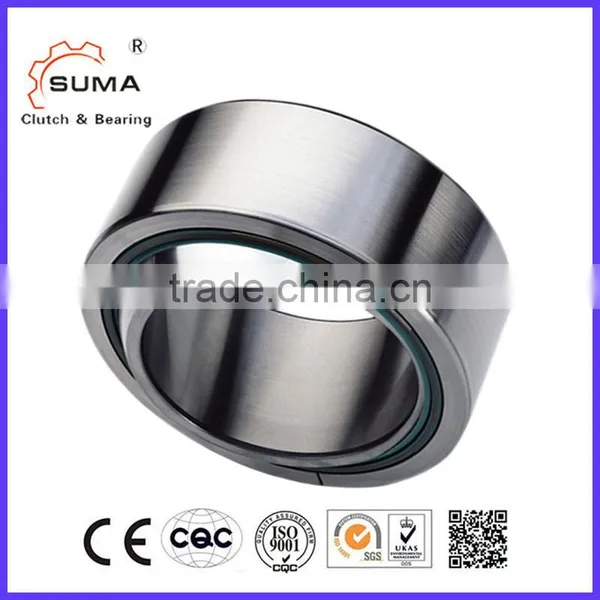

GEC GEH...C Series Bearing Spherical Plain Bearing GE15C
Features of spherical plain bearings ge15c
Inner Ring structure:
GEC and GECJ2 series are both bearing steel, throguh hardened and ground, sliding surface hard chromium plated.
Outer Ring strucutre:
GEC : Steel backsing with PTFE sintered bronze layor pressed around the inner ring, with a butt joint.
GECJ2: Steel backing with PTFE sintered bronze sleeve pressed around the inner ring without a butt joint.
Product name |
spherical plain bearings |
Model |
GE15C |
Material |
STEEL/PTFE |
Inner diameter |
15mm |
Outer diameter |
36mm |
Thickness |
23mm |
Seals |
No |
Weight |
0.032kg |
Application |
Hydraulic cylinder, auto shock absorber,chemical equipment |
Package |
Wooden box, white tube, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
2-4 days for the sample, 7 days for big order |

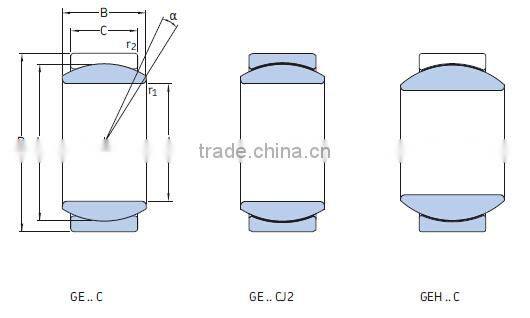

Catalogue of spherical plain bearings ge15c for your choice
| Model | Dimensions | Angle of tilt | Basic load ratings | Mass | ||||
| d | D | B | C | α | C | C0 | ||
| mm | mm | mm | mm | degrees | Nm | Nm | kg | |
| GE4C | 4 | 12 | 5 | 3 | 16 | 2.16 | 5.4 | 0.003 |
| GE6C | 6 | 14 | 6 | 4 | 13 | 3.6 | 9 | 0.004 |
| GE8C | 8 | 16 | 8 | 5 | 15 | 5.85 | 14.6 | 0.008 |
| GE10C | 10 | 19 | 9 | 6 | 12 | 8.65 | 21.6 | 0.012 |
| GEH10C | 22 | 12 | 7 | 18 | 11.4 | 28.5 | 0.02 | |
| GE12C | 12 | 22 | 10 | 7 | 10 | 11.4 | 28.5 | 0.017 |
| GEH12C | 26 | 15 | 9 | 18 | 18 | 45 | 0.03 | |
| GE15C | 15 | 36 | 23 | 9 | 8 | 18 | 45 | 0.032 |
| GEH15C | 30 | 16 | 10 | 16 | 22.4 | 56 | 0.05 | |
| GE17C | 17 | 30 | 14 | 10 | 10 | 22.4 | 56 | 0.05 |
| GEH17C | 35 | 20 | 12 | 19 | 31.5 | 78 | 0.09 | |
| GE20C | 20 | 35 | 16 | 12 | 9 | 31.5 | 78 | 0.065 |
| GEH20C | 42 | 25 | 16 | 17 | 51 | 127 | 0.16 | |
| GE25C | 25 | 42 | 20 | 16 | 7 | 51 | 127 | 0.12 |
| GEH25C | 47 | 28 | 18 | 17 | 65.5 | 166 | 0.2 | |
| GE30C | 30 | 47 | 22 | 18 | 6 | 65.5 | 166 | 0.16 |
| GE35CJ2 | 35 | 55 | 25 | 20 | 6 | 80 | 200 | 0.23 |
| GE40CJ2 | 40 | 62 | 28 | 22 | 7 | 100 | 250 | 0.32 |
| GE45CJ2 | 45 | 68 | 32 | 25 | 7 | 127 | 320 | 0.46 |
| GE50CJ2 | 50 | 75 | 35 | 28 | 6 | 156 | 390 | 0.56 |
| GE60CJ2 | 60 | 90 | 44 | 36 | 6 | 245 | 610 | 1.1 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the spherical plain bearings ge15c?
A: Usually lubricated radial spherical plain bearings ge15c are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of spherical plain bearings ge15c from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the spherical plain bearings ge15c in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 5-7 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
