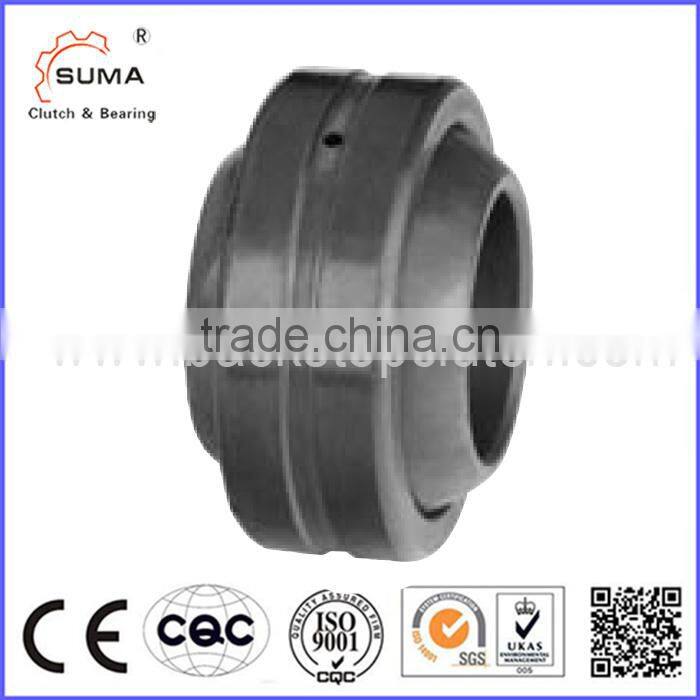

| GEH4E spherical bearing for transportation equip | ||
| Details | ||
| Model | GEH4E | |
| Material | GCr15 | |
| Type | spherical plain bearing | |
| Inner Diameter | 4mm | |
| Outer Diameter | 14mm | |
| Weight | 0.011lbs | |
| Width | 7mm | |
| Load Rating | Dynamic | 3.4KN |
| Static | 17KN | |
| Application | gearboxes;shaft drives;electrical machine;other machine | |
Specifications
1. Wider Inner Ring & larger OD – Capable of greater misalignment
2. Sliding Surface: Steel on Steel - MoS2 treated
3. Single Fracture Design
4. Relubricatable through annular grooves & oil holes in inner & outer rings (ES – Suffix)
Main Technical Specifications
| Part # | Ref # | Dimensions (mm) | Load Ratings kN | Weight LBS | ||||||||
| d | D | B | C | dk | rs | ris | a | Dynamic | Static | |||
| min | min | « | ||||||||||
| GEH4E | GEG4E | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 20 | 3.4 | 17 | 0.011 |
| GEH5E | GEG5E | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.018 |
| GEH6E | GEG6E | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.025 |
| GEH8E | GEG8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 8.1 | 40 | 0.03 |
| GEH10E | GEG10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 10 | 53 | 0.046 |
| GEH12E | GEG12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 16 | 84 | 0.073 |
| GEH15ES | GEG15ES | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 21 | 106 | 0.108 |
| GEH17ES | GEG17ES | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.183 |
| GEH20ES | GEG20ES | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 48 | 240 | 0.337 |
| GEH25ES | GEG25ES | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 62 | 310 | 0.45 |
| GEH30ES | GEG30ES | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 79 | 399 | 0.67 |
| GEH35ES | GEG35ES | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 99 | 495 | 0.9 |
| GEH40ES | GEG40ES | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 127 | 637 | 1.19 |
| GEH45ES | GEG45ES | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 156 | 780 | 1.57 |
| GEH50ES | GEG50ES | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 2.51 |
| GEH60ES | GEG60ES | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 4.5 |
| GEH70ES | GEG70ES | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 6.6 |
| GEH80ES | GEG80ES | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 8 |
| GEH90ES | GEG90ES | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 11.5 |
| GEH100ES | GEG100ES | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 13.3 |
| GEH110ES | GEG110ES | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 21.3 |
| GEH120ES | GEG120ES | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 30.8 |
| GEH140ES | GEG140ES | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 42 |
| GEH160ES | GEG160ES | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 1530 | 7650 | 44 |
| GEH180ES | GEG180ES | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 2120 | 10600 | 71 |
| GEH200ES | GEG200ES | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 2320 | 11600 | 99 |
| GEH220ES | GEG220ES | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 2550 | 12700 | 112.5 |
| GEH240ES | GEG240ES | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 3030 | 15190 | 143 |
| GEH260ES | GEG260ES | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 3570 | 17850 | 182 |
| GEH280ES | GEG280ES | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 3800 | 19100 | 214 |
| Changzhou Suma Precsion Machinery Co.,Ltd |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
