RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-1
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-2
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-3
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-4
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-5
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 thumbnail-6
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-1
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-2
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-3
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-4
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-5
RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90 photo-6
US$ 50 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA of water pump bearing
Bore Size:
20, 130
Outside Diameter:
90, 322
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for water pump bearing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA of water pump bearing
Bore Size 20, 130
Outside Diameter 90, 322
Model Number RSCI of water pump bearing
Precision Rating P6
Seals Type Sealed
Place of Origin Jiangsu, China

 RSCI 90 Water Pump Bearing Sprag Freewheels

Overrunning Clutch RSCI90



Product Description

 RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

Features of overrunning clutch rsci

RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. It is a non self-supported type. So, bearings must be provided to ensure concerntricity of the inner and outer races and support axial and radial loads.

Product name

clutch release bearing rsci

Model

RSCI 90

Material

GCr15

Inner diameter

90mm

Outer diameter

230mm

Torque capacity

5600Nm

Weight

17.4kg

Structure

Sprag type without bearing supported

Application

Reducer, Pump Machine, Air blower, Gearbox

Package

Wooden box

Payment terms

TT, L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order



Catalogue of bearing for overrunning clutch rsci for your choice  RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

Type Size   Speeds

Num

ber

   Weight
RSCI dH7 TKN1) nmax2) nimin3) nimax4) D5) D1h6 D2H7 D3 D4 z L I I1 m I2 I3 RSCI F8
[mm] [Nm] [min-1] [min-1] [min-1] [mm] [mm] [mm] [mm]     [mm] [mm] [mm] [mm] [mm] [mm] [kg] [kg]
20 212 315 750 15000 90 36 66 78 M6 6 35 35 25 5 8 16 1.5 0.3
25 319 300 725 14000 95 40 70 82 M6 6 35 35 25 5 8 16 1.6 0.4
30 375 290 700 11000 100 45 75 87 M6 6 35 35 25 5 8 16 1.8 0.4
35 550 280 670 11000 110 50 80 96 M6 8 35 35 25 5 8 16 2.1 0.5
40 800 260 630 8000 125 60 90 108 M8 8 35 35 25 5 10 21 2.7 0.7
45 912 255 610 7000 130 65 95 112 M8 8 35 35 25 5 10 21 2.9 0.9
50 1400 235 560 6000 150 80 110 132 M8 8 40 40 25 7.5 10 21 4.3 1
60 2350 210 510 6000 175 85 125 155 M10 8 60 50 36 12 12 35 6.5 1.8
70 3050 195 470 4000 190 100 140 165 M10 12 60 50 36 12 12 35 8.6 1.9
80 4500 180 440 4000 210 120 160 185 M10 12 70 60 36 17 12 35 12.5 2.6
80M 5800 155 375 4000 210 120 160 185 M10 12 70 60 46 12 12 35 13.1 2.6
90 5600 170 410 3000 230 140 180 206 M12 12 80 70 36 22 12 35 17.4 3
90M 8700 145 350 3000 245 140 180 206 M12 12 80 70 46 17 12 35 18.3 3
100 10500 145 355 3000 290 140 210 258 M16 12 90 80 52.6 18.6 15 37 28 5
100M 16000 140 340 2400 290 170 210 258 M16 12 90 80 63 13.5 12 35 30 5
130 15750 135 330 2400 322 170 240 278 M16 12 90 80 52.6 18.6 15 37 35 6

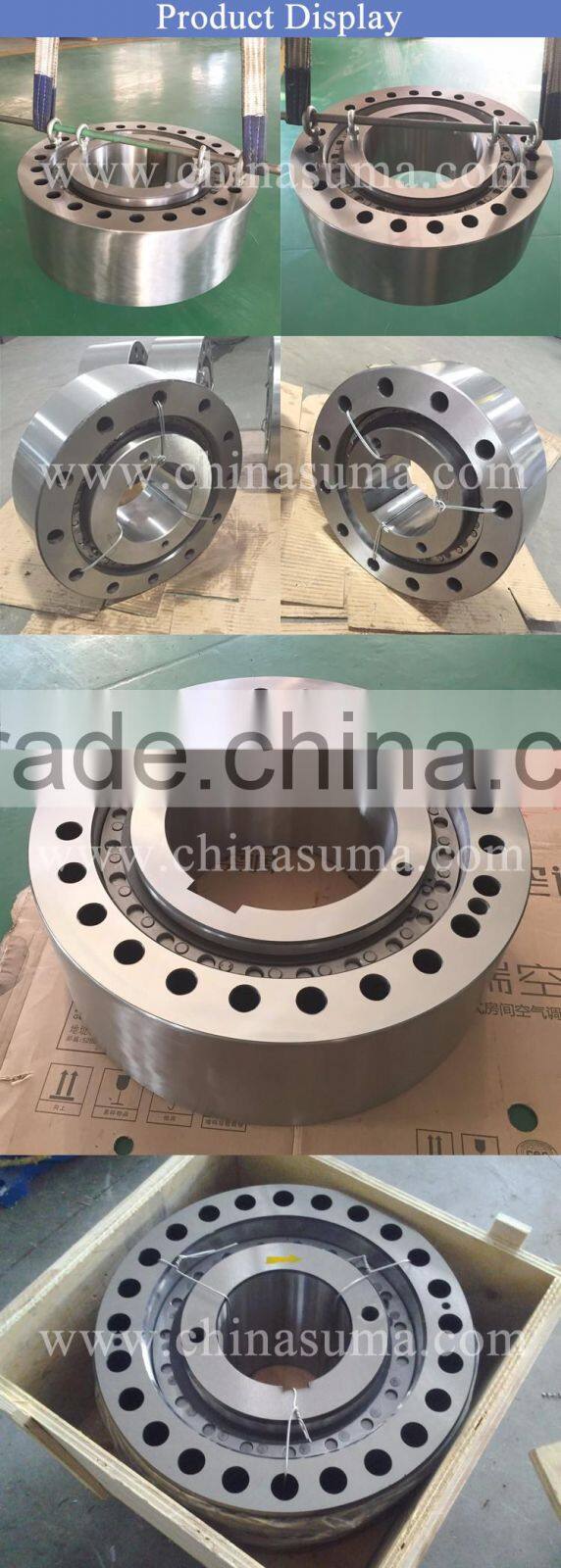

Detailed Images



RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

Germany client for visit

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

Application of clutch release bearing rsci

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90



Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

 We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

Clients Visit

RSCI 90 Water Pump Bearing Sprag Freewheels Overrunning Clutch RSCI90

FAQ

Q: How do you pack the rsci overrunning clutch ?

A: Usually rsci overrunning clutch are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of rsci clutch release bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver rsci overrunning clutch in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.



Any needs, you are warmly welcomed to contact me at any time !
