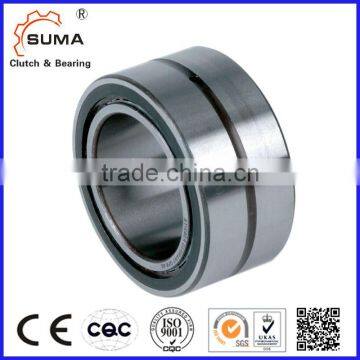

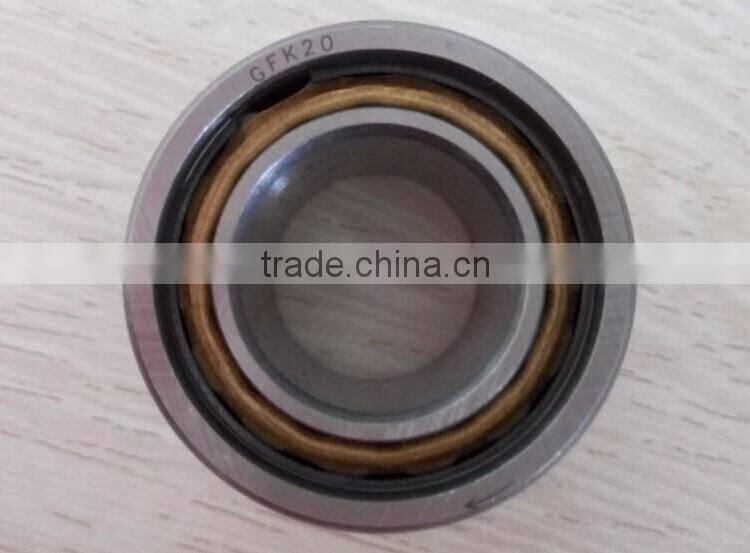

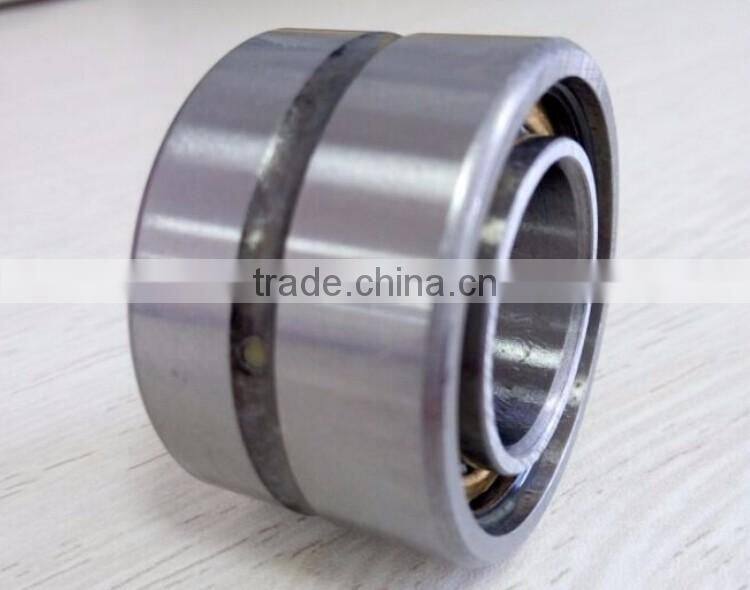

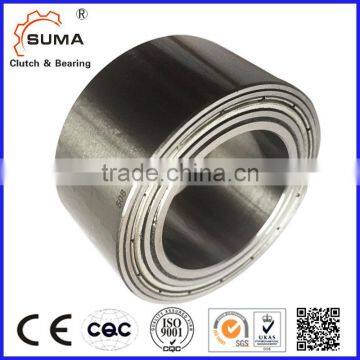

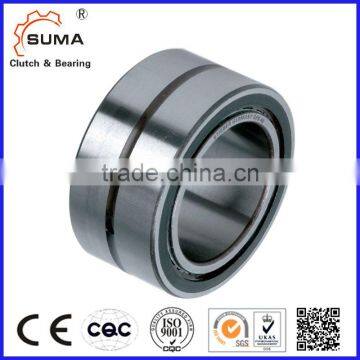

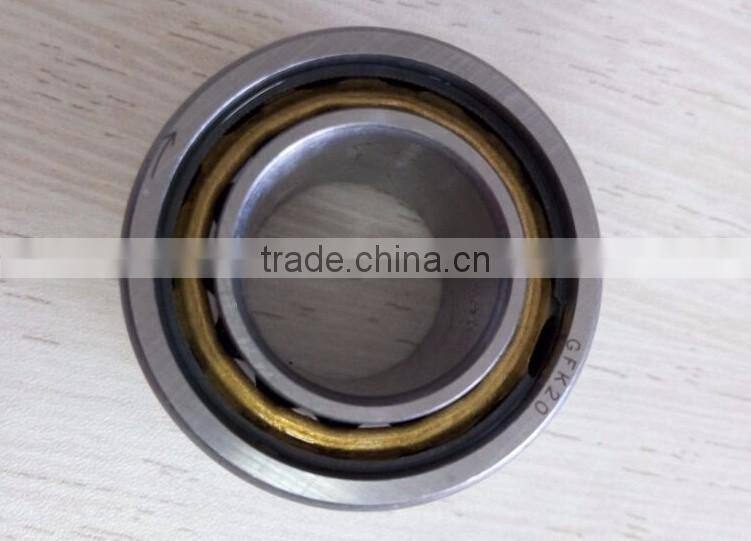

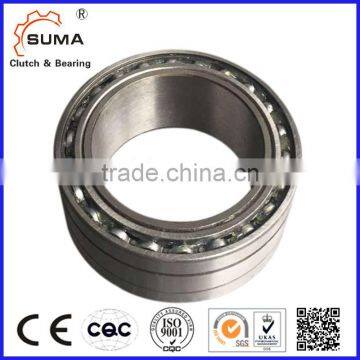

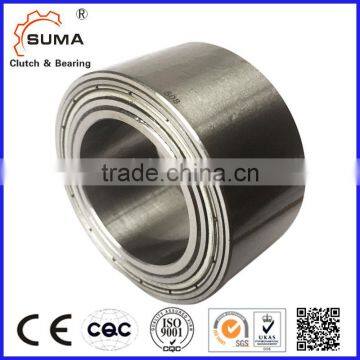

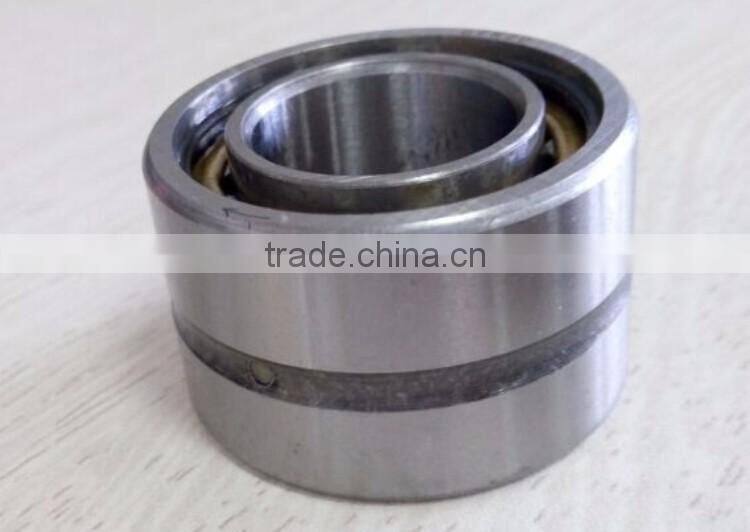

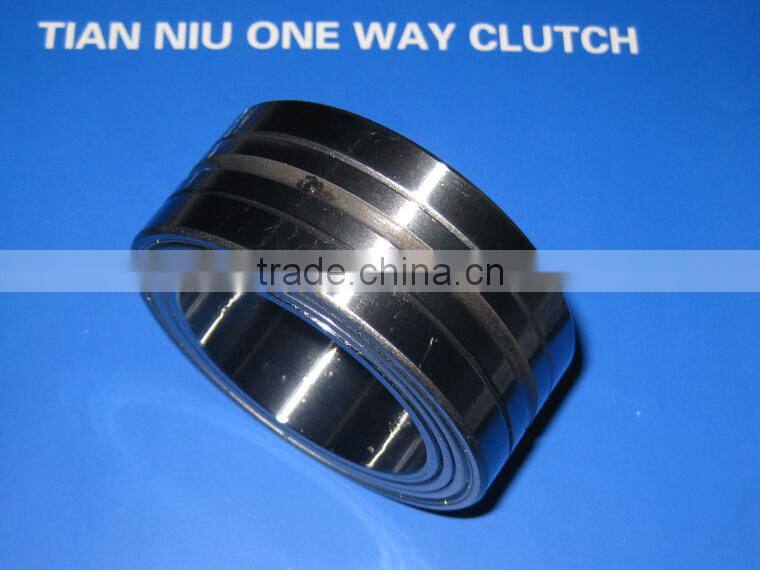

GFK 45 Sprag Freewheel Bearings One-Way Clutch
Features of gfk one-way clutch
Type GF, GFK is a sprag freewheel integrated into a 59. series ball bearing.
The dedign provides high torque capacity for minimal outside diameter.
Product name |
high precision sprag type freewheel |
Model |
GFK45 |
Torque capacity |
370Nm |
Inner diameter |
45mm |
Outer diameter |
68mm |
Material |
GCr15 |
Thickness |
30mm |
Weight |
0.34kg |
Structure |
Sprag type freewheel |
Application |
Backstop |
Package |
Wooden box or customized |
Payment terms |
TT, L/C, D/A, D/P, Western Union |
Delivery time |
5-7 days after order confirmed if no stock |
Structure of gfk one-way clutch
It is a beaing supported type, delivered grease lubricated. Oil bath lubrication is also possible. Besides, whatever the lubrication type, seals should be provided.
Operating temperature range of gfk one-way clutch
-20 °C to + 100°C. Peaks up to + 120 °C are acceptable forshort periods.
Catalogue of gfk one-way clutch for your choice
GFK series
Type |
Size |
|
Overrunningspeeds |
Bearing series |
Loads |
|
Weight |
||||||
|
Rollers dyn. |
Balls dyn. |
Rollers stat. |
Balls stat. |
||||||||||
|
d |
TKN1) |
n imax2) |
n amax3) |
|
C |
C |
C0 |
C0 |
D |
L |
r |
|
[mm] |
[Nm] |
[min-1] |
[min-1] |
|
[N] |
[N] |
[N] |
[N] |
[mm] |
[mm] |
[mm] |
[kg] |
|
20 |
51 |
5500 |
4000 |
5904 |
5600 |
4400 |
2900 |
2750 |
37 |
23 |
0.5 |
0.09 |
|
25 |
65 |
5300 |
3800 |
5905 |
6300 |
5300 |
3450 |
3350 |
42 |
23 |
0.5 |
0.11 |
|
30 |
95 |
5000 |
3500 |
5906 |
7700 |
5500 |
4600 |
3650 |
47 |
23 |
0.5 |
0.13 |
|
35 |
204 |
4600 |
3200 |
5907 |
8200 |
8500 |
5200 |
5700 |
55 |
27 |
1 |
0.2 |
|
40 |
315 |
4200 |
3000 |
5908 |
8650 |
9300 |
5750 |
6700 |
62 |
30 |
1 |
0.3 |
|
45 |
370 |
3800 |
2500 |
5909 |
9200 |
9700 |
6350 |
7300 |
68 |
30 |
1 |
0.34 |
|
50 |
460 |
3400 |
2200 |
5910 |
9650 |
10000 |
6950 |
7800 |
72 |
30 |
1 |
0.36 |
|
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the gfk one-way clutch?
A: Usually gfk one-way clutch are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of gfk one-way clutch from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the gfk one-way clutch in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
