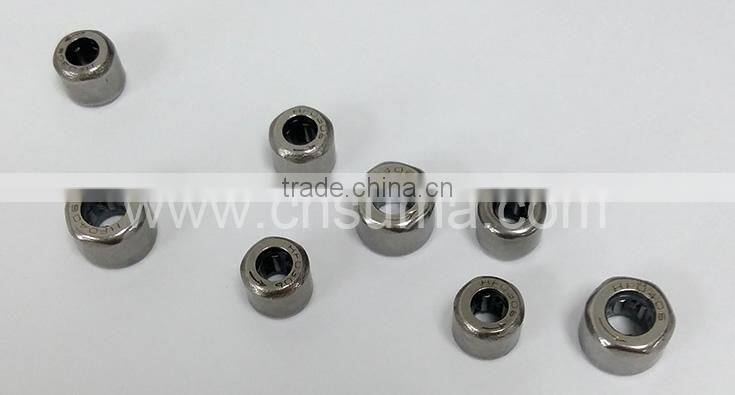

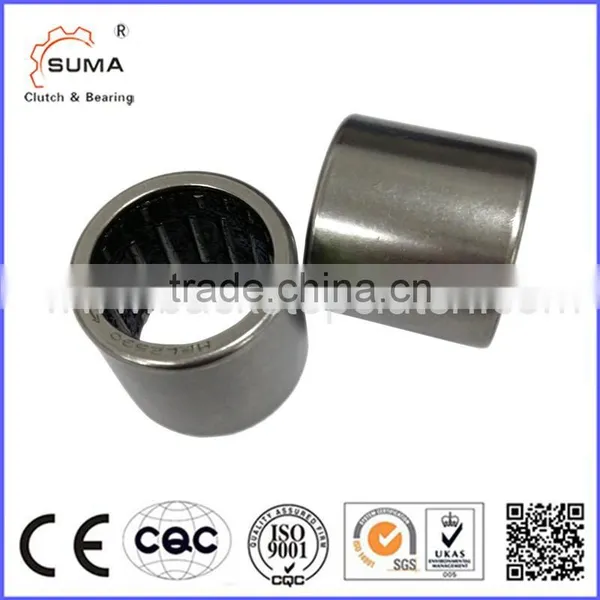

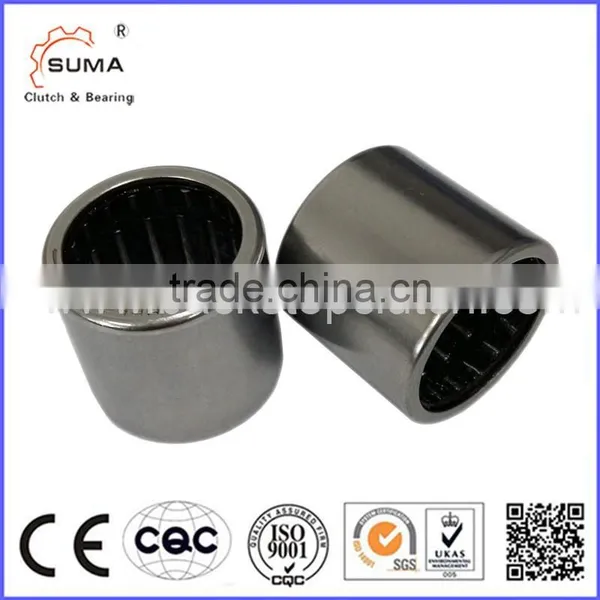

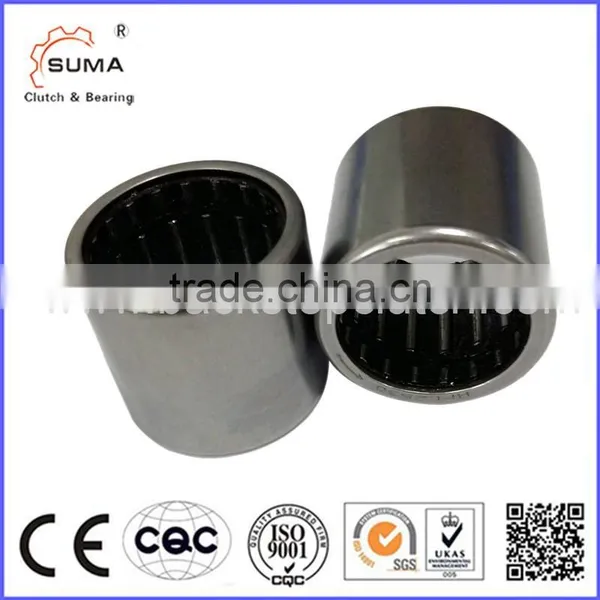

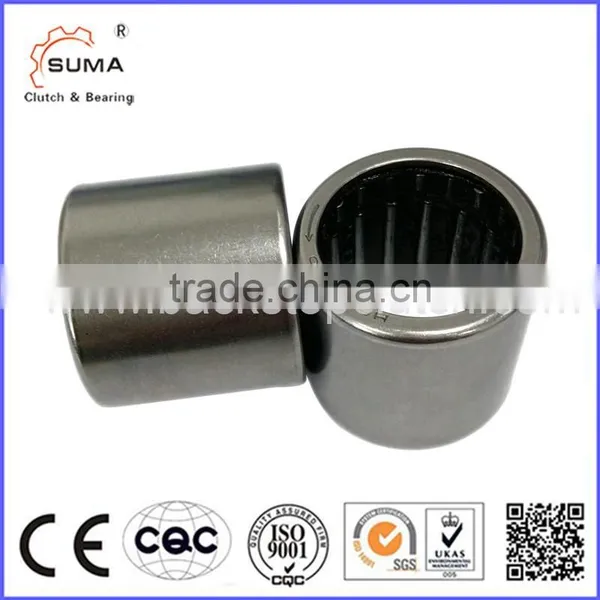

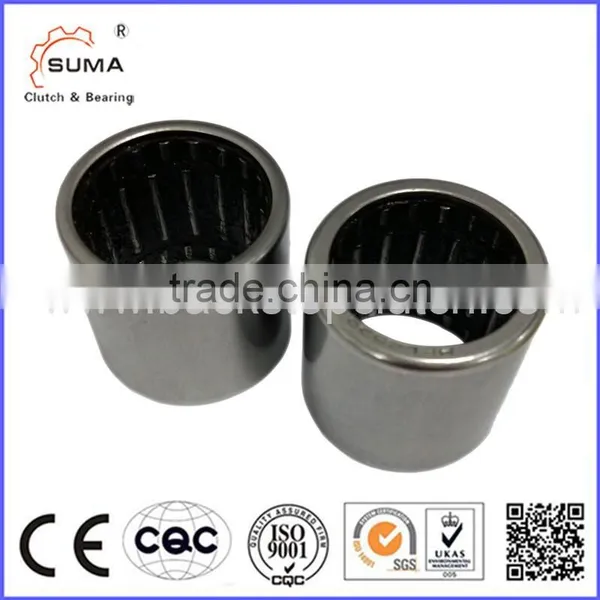

One way clutch -drawn cup roller clutches /clutch and bearing assemblies, It may take the switch, the prevent returning installment, the overdrive clutch. HF, FC, RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement. HFL, FCB, RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module. MATERIAL: The outer covering is generally the ST14 low-carbon steel (special occasion may use stainless steel); Keep the shelf usually strengthening nylon; The needle is a bearing steel to roll, produce according to the needs of customer too. For example: Unidirectional HF2016 is widely applied on the washer bearing!
Shaft Diameter | Clutch Designation | Mass Approx |
Borndary Dimensions | Torgue Ma | Basic Load Ratings | ||||||
Limiting Speed | |||||||||||
Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | C | Co | |||||
KN | |||||||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
HFL | |||||||||||
3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
-- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
-- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
Related products
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
