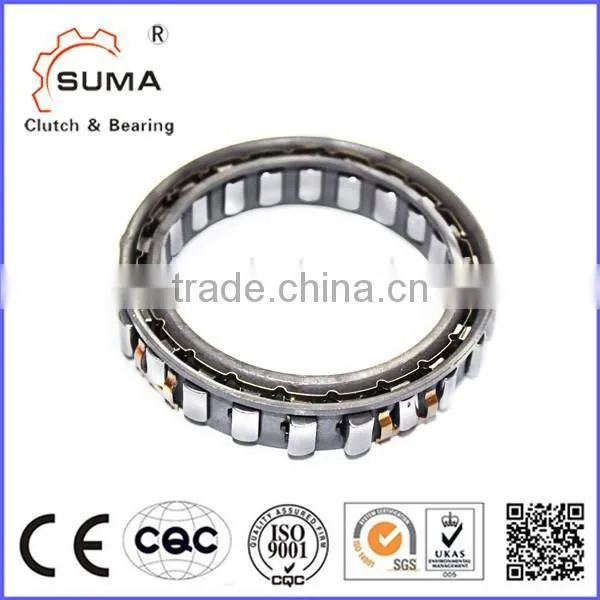

MODEL : Needle Bearings Sprag Type Freewheel Cage X-133614C
Type X is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing supp-ort for axial and radial loads, lubrication and sealing. The X type version-N accepts all types of lubricants currently used in
the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must both have
a minimum plain width "e", without any recess, to ensure the freewheel functions correctly.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.
The Parameters of the Sprag Freewheel Cage X,BW,BWC
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| D1 | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
| x-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 | 54.765 |
- |
71.427 |
- |
13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||||
| BW-13167 | 15.9 | 569 (58.0) | ||||
| BW-13209 | 57.760 |
- |
74.427 |
- |
13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59.538 | - | 76.200 | - | 25.4 | 1350 (138) |
| BW-13243 | 72.217 |
- |
88.882 |
- |
13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||||
| BWC-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83.596 | ±0.013 | 102.555 | - | 25.4 | 3040 (310) |
| X-133402 | 85.776 | - | 104.775 | - | 25.4 | 3090 (315) |
| BWC-13251 | 103.231 |
- |
119.944 |
- |
15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103.231 | - | 122.230 | - | 25.4 | 4410 (450) |
| X-133403 | 123.881 | - | 142.880 | - | 25.4 | 5740 (585) |
