Home > Industrial Equipment & Components > Bearing > Needle Bearing > HF0612KF (plastic Springs) One Way Needle Bearing in Good Quality

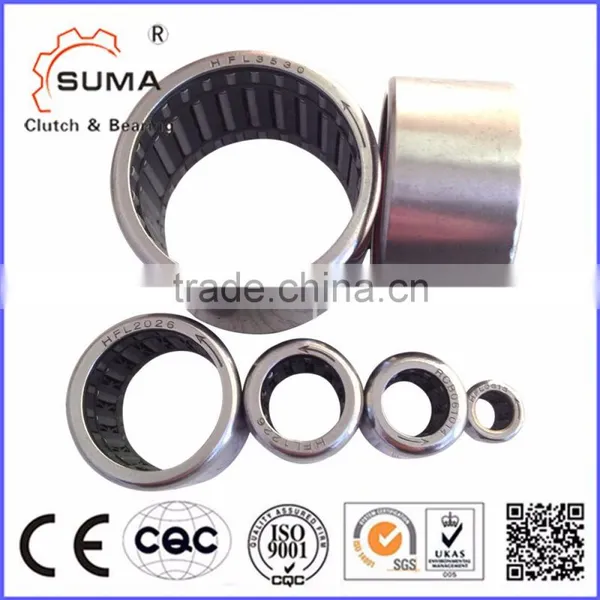

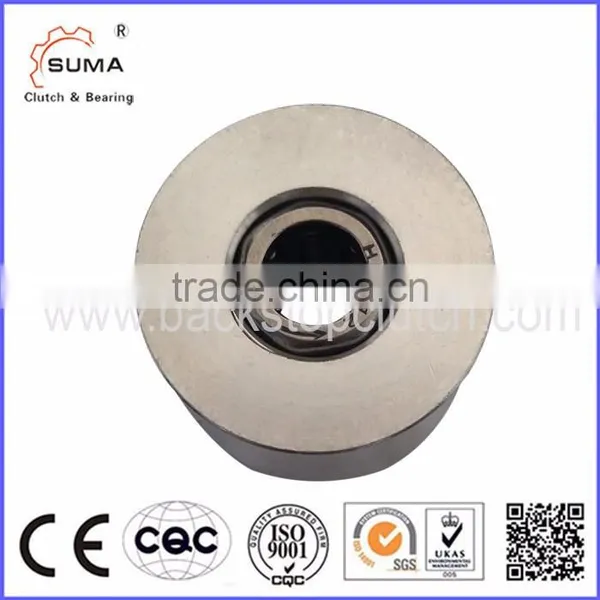

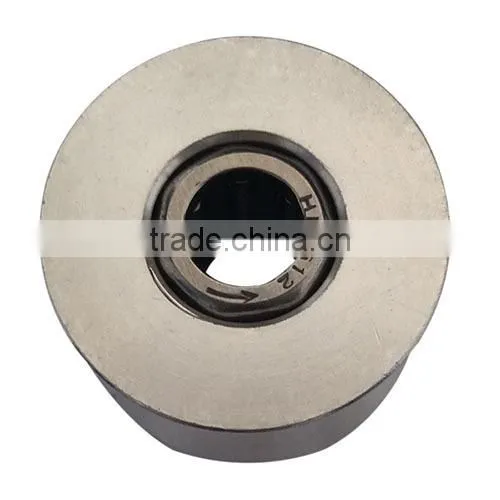

HF0612KF (plastic Springs) One Way Needle Bearing in Good Quality
US$ 0.5 - 6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
10,
Outside Diameter:
6,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
One Way Roller Bearing HFL2530US$ 1 - 1MOQ: 10 Pieces -
Needle Roller Bearing TAF162416US$ 1 - 1MOQ: 10 Pieces
-
Roller Needle BearingTAF SeriesUS$ 1 - 1MOQ: 10 Pieces
-
Sprag Clutch MZ-G Series Bearing for Industrial ApplitcationUS$ 60 - 800MOQ: 1 Piece
-
MZ15G-MZ70G Overrunning Clutch With Good Quality for Indusrial MachineUS$ 60 - 800MOQ: 1 Piece
Brand Name
SUMA or OEM
Bore Size
10,
Outside Diameter
6,
Model Number
HF0612KF needle bearing
Precision Rating
P6
Seals Type
non-sealed
Number of Row
Single Row
Place of Origin
Jiangsu, China
Product Description
MODEL: HF0612KF (plastic springs) NEEDLE BEARING
BASIC INFORMATION
| Item | HF0612KF (plastic springs) One Way Needle Bearing | |
| Brand | SUMA or OEM | |
| Type | needle | |
| Shaft Diameter | 6mm | |
| Outside Diameter | 10mm | |
| Inside Diameter | 6mm | |
| Suitable Draw up Bearing | HK0608 | |
| Material | GCr15 | |
| Precision | P6 | |
| Application | textile machines;printing machines;other machine | |
DATA LIST
| Shaft Diameter | Bearing Designation | Mass Approx | Borndary Dimensions | Pemissible Torque Md | Limiting Speed | Suitable Drawn Cup Bearings | ||||
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | ||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | rpm | |||
| 3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN | |
| 4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
| HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
| 6 | HF0608KF | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 | |
| HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | ||
| 8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
| HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
| -- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
| -- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
| -- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
| -- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
| 10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
| HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
| 12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
| 14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
| 16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
| 18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
| 20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
| 25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
| 30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
| 35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
