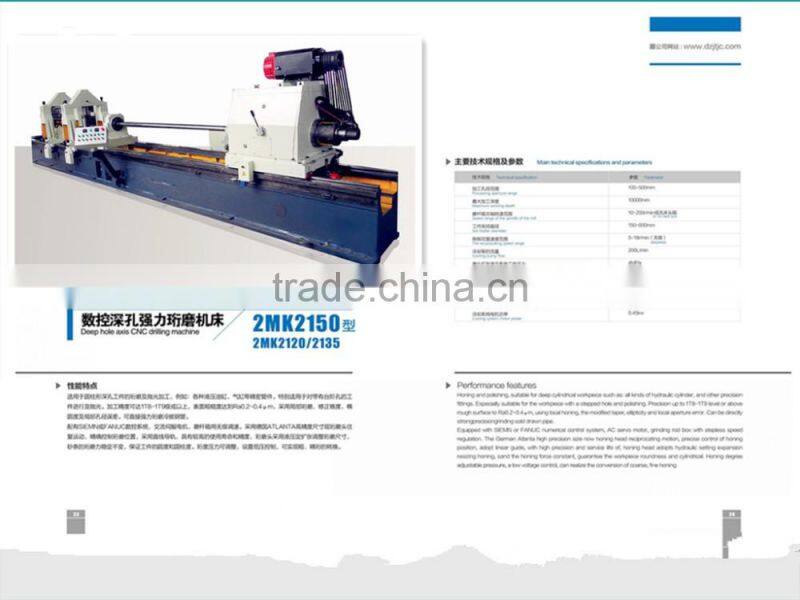

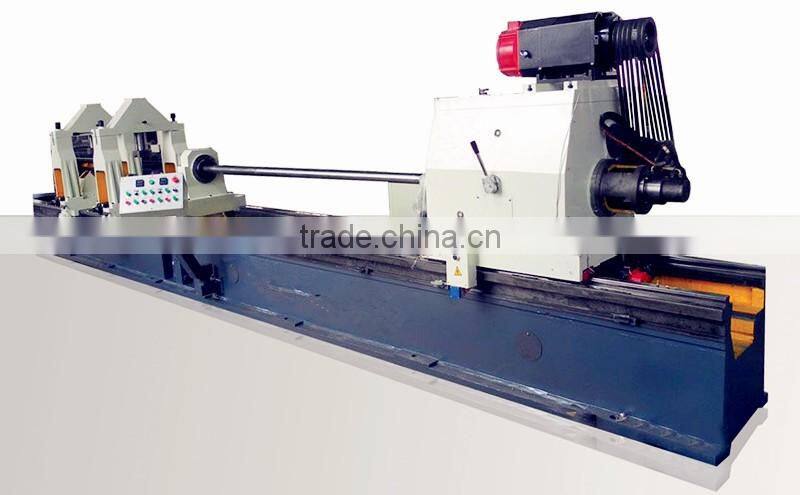

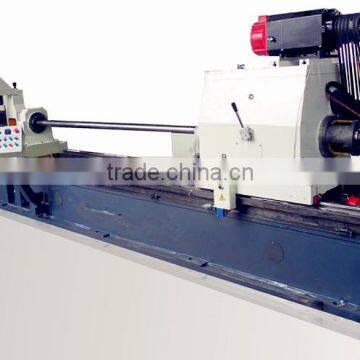

Best Sale Deep Hole hydraulic cylinder honing machine

Honing and polishing,suitable for deep cylindrical workpiece such as:all kinds of cylinder,and other precision fittings.Especially suitable for the worjpirce with a stepped hole and polishing.Precision up to 1T8-1T9 level or above rough surface to Ra0.2-0.4μm,using local honing ,the modified taper ellipticity and local aperture error. Can be directly strongprecisiongrinding cold drawn pipe.

Equipped with SIEMN or FANUC numerical control system,AC servo motor,grinding rod box with stepless speed regulation.The German Atlanta high precision size now honing head reciprocating motion,precise control of honing posotion,adopt linear guide,with high precision and service line of,honing head adopts hydraulic setting expansion resizing honing,sand the honing force constant,guarantee the workpiece roundness and cylindrical.Honing degree adjustable pressure,a low voltage control,can realize the conversion of coarse,fine honing.

Model:2MK2150

Condition:New
Processing aperture range:100-500mm
Maximum working depth:2000mm
Speed range of the the spinde of the mill:10-200r/min or no bed box
Job holder diameter:150-600mm
The reciprocating speed range:5-18r/min(stepless)
Cooling pumo flow:200L/min
The grinding head expansion working pressure of hydraulic system:4MPa
Power of the main motor of the grinding rod box:15KM(AC spindle motor)
Grinding rod box reciprocating motor:70Nm(AC spindle motor)
The grinding head motor power expansion:1.5KW
Cooling syetem motor power:0.45KW
