Coil Nail Manufacturing Machine:
High Speed Coil Nail Manufacturing Machine
Auxiliaries for nail making machine
For collating the nail together
Usage and Features of coil nail manufacturing machine:

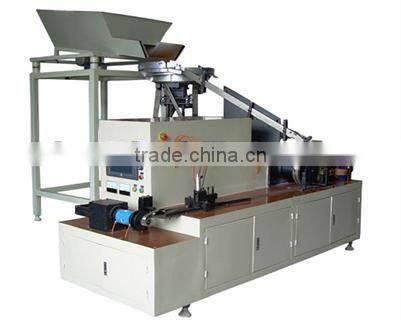

This coil nail manufacturing machine is a special kind of automatic welding equipment. Combined the advantages of world first-rate products with various feedback from users and long-term troubleshooting accumulation, so far the machines have been improved and upgraded to the 3rd generation with continuous introduction of the latest technology in automatic control system.

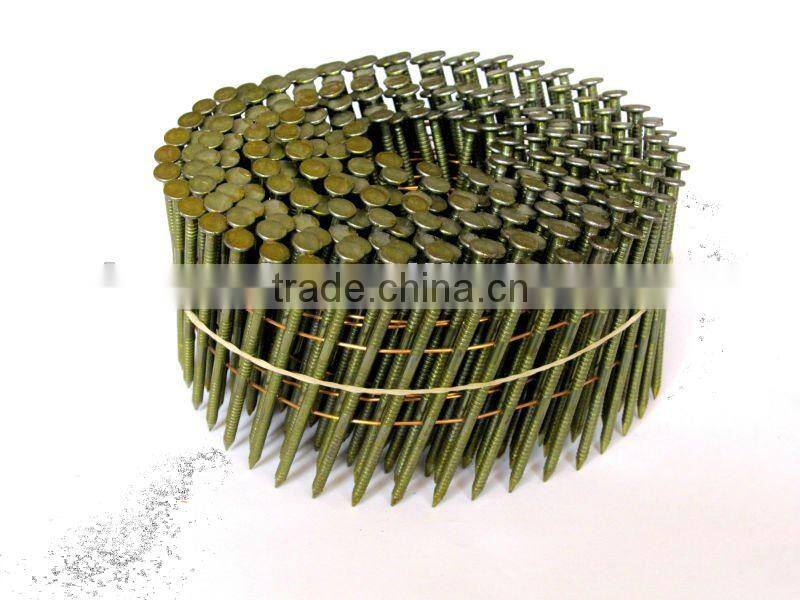

Under regular vibrations, the disordered wire nails/roofing nails put in the vibrating feeder are guided to line up along the spiral passage against the wall of feeder and to get through a long downward groove to welding wheels, where two copper-plated wires are welded with the nails at a certain angle, 15°to 16°, then the welded nails are coiled to a fixed length as per the counter to cut off, forming a coil shape with flat top or cone top.
The data of coil nail manufacturing machine:
Model |
Shank diameter
(mm)
|
Length
(mm)
|
Speed
(pcs/min)
|
Overall dimensions(mm) |
Weight
(kg)
|
JZ-1700A |
1.8-2.5 |
25-75 |
1250-2000 |
2350×900×1100 |
1600 |
JZ-1700B |
2.7-3.3 |
75-100 |
800-1800 |
2350×900×1100 |
1800 |
