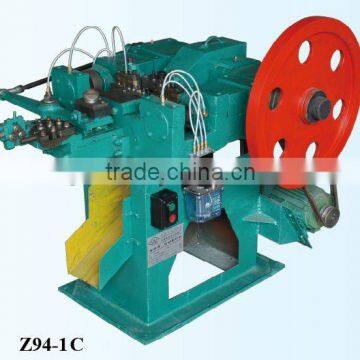

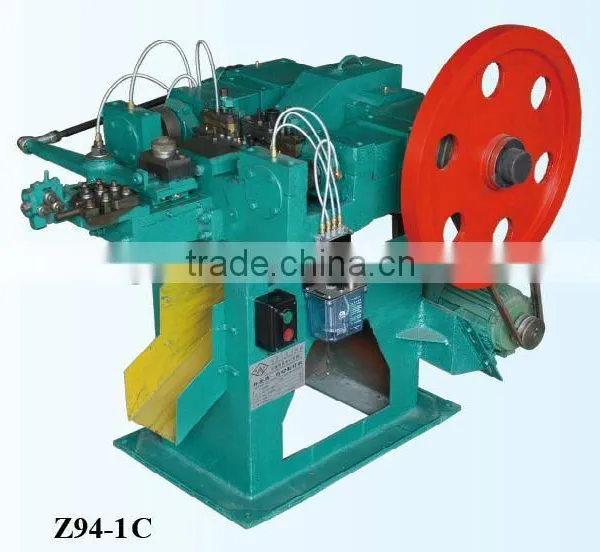

Series of Automatic Coil Nail Mking Machine
Simple discription of coil nail making machine:
1.Series of steel coil nail making machine
2.High speed:200pcs/min
3.Low noise,high efficiency
4.Spare parts:mould,cutter,pouch pin
Usage and features of coil nail making machine:
The Z94C coil nail making machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailer.
The type of automatic coil nail making machine can produce Normal Nail.
Availability of Raw Material: normal wire, new metal wire,waste rebar,scrap steel bar, hard-drawn wire, Waste
electrode, and other kind of waste steel,
Supply relative spare parts: nail mold, nail knife, punch pin.
Datas of Automatic Coil Nail Making Machine:
Technical data |
Unit |
TL-Z94 -5.5C |
TL-Z94 -4C |
TL-Z94 -3C |
TL-Z94 -2C |
TL-Z94 -1C |
Dia of nail max |
mm |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
2500 |
2000 |
1600 |
1400 |
1200 |
Overall dimension |
mm |
2400*1800*1700 |
2200*1600*1650 |
2000*1400*1400 |
1700*1300*1400 |
1500*1300*1200 |
