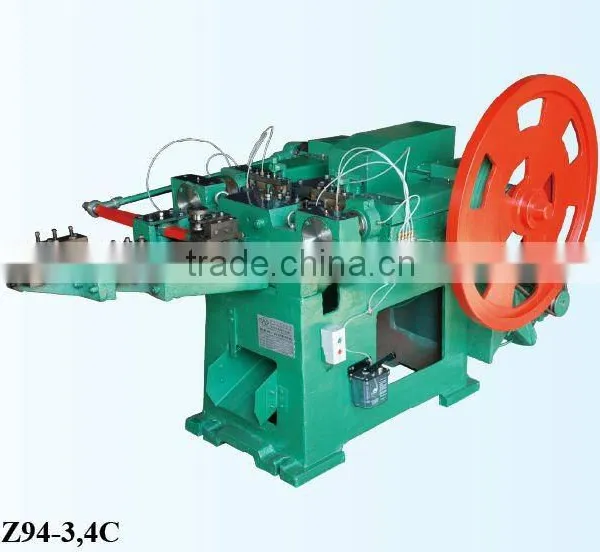

Series of Automatic Steel Nails Making Machine
Simple discription:
1.Series of automatic steel nail making machine;
2.High speed:200pcs/min;
3.Low noise,high efficiency;
4.Spare parts:mould,cutter,pouch pin.
Usage and features of automatic steel nail making machine:
The Z94C automatic steel nail making machine adopts plunger and oil pipe lubricating structure so as to
ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailer.
The type of nails machine can produce Normal Nail.
Availability of Raw Material: normal wire, new metal wire,waste rebar,scrap steel bar, hard-drawn wire, Waste
electrode, and other kind of waste steel,
Supply relative spare parts: nail mold, nail knife, punch pin.
Datas:
Technical data |
Unit |
TL-Z94 -5.5C |
TL-Z94 -4C |
TL-Z94 -3C |
TL-Z94 -2C |
TL-Z94 -1C |
Dia of nail max |
mm |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
2500 |
2000 |
1600 |
1400 |
1200 |
Overall dimension |
mm |
2400*1800*1700 |
2200*1600*1650 |
2000*1400*1400 |
1700*1300*1400 |
1500*1300*1200 |
