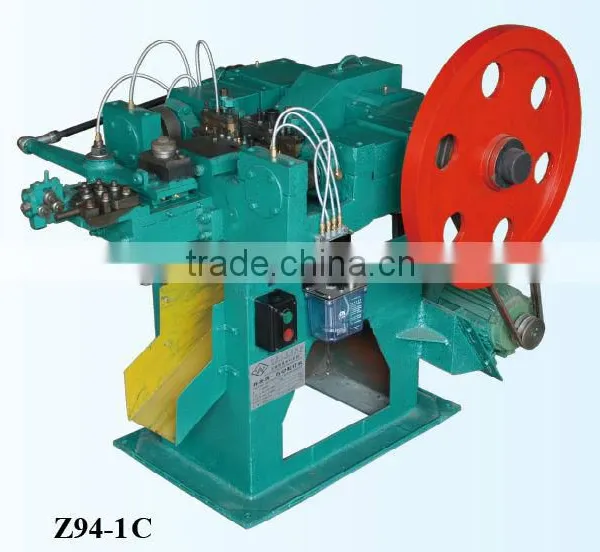

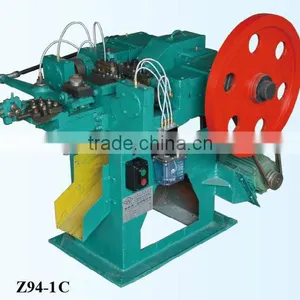

Series of Common Nail Making Device
Simple discription of common nail making device:
1.Series of steel common nail making device;
2.High speed:200pcs/min;
3.Low noise,high efficiency;
4.Spare parts:mould,cutter,pouch pin.
Usage and features of common nail making device:
The Z94C common nail making device adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailer.
The type of common nail making device can produce Normal Nail.
Availability of Raw Material: normal wire, new metal wire,waste rebar,scrap steel bar, hard-drawn wire, Waste electrode, and other kind of waste steel,
Supply relative spare parts: nail mold, nail knife, punch pin.
Datas of common nail making device:
Technical data |
Unit |
TL-Z94 -5.5C |
TL-Z94 -4C |
TL-Z94 -3C |
TL-Z94 -2C |
TL-Z94 -1C |
Dia of nail max |
mm |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
2500 |
2000 |
1600 |
1400 |
1200 |
Overall dimension |
mm |
2400*1800*1700 |
2200*1600*1650 |
2000*1400*1400 |
1700*1300*1400 |
1500*1300*1200 |
