Specifications: 1 .RotaryDryer for drying differnt material
2.full technical support
petitive price
Rotary Dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on.
It can dry sand, slag, coal powder, mining ore powder, clay, limestone, wood chips and wood powder, annimal dung and so on.
The rotarydryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
Weprovide: wet material rotary dryer, sand dryer, sawdust dryer, coal dryer, coal slime dryer, bentonite dryer, ore concentrate dryer, wood chip dryer, cassava dryer, gypsum dryer, cow dung dryer
Introduction:

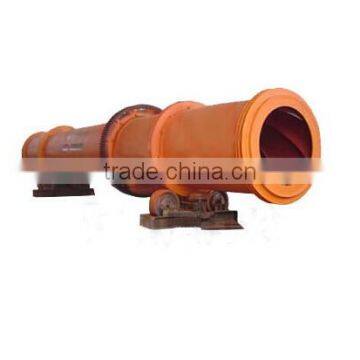

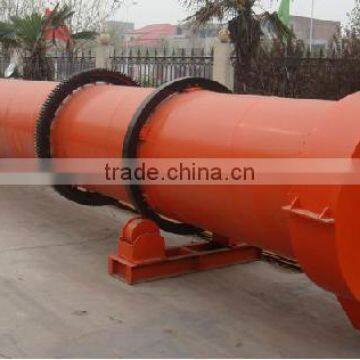

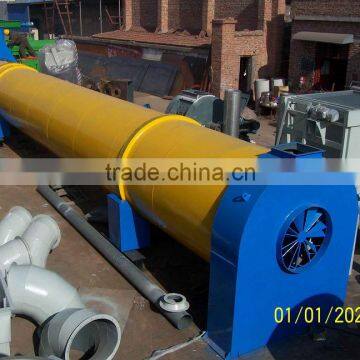

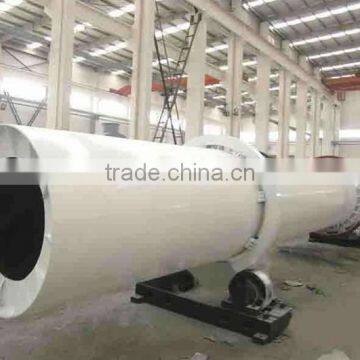

Rotary dryer made in our company is mainly used in building materials, metallurgy, light industry, mining industry, chemical plant, cement plant and others. The dryer is formed by body roller, lifting blades, driving device, supporting device and sealing ring. It has the advantage of high drying strength, high efficiency and capacity, wide range of applications, flow resistance and easy operation. It is the ideal equipment for drying high humidity materials like sawdust, coal, sand, slag, mining powder, slurry, chicken and cow manure and so on.
High Efficiency Rotary Dryer
1. What the rotary dryer can be used for ?
This dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.
2. what the rotary dryer consist of?
the dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
3. Can I use the coal or gas as the heating source?
Yea, you can use coal, gas, electricity, oil and wind power to heat the dryer machine.
4. How the rotary dryer to work?
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
The Rotary dryers characteristics:

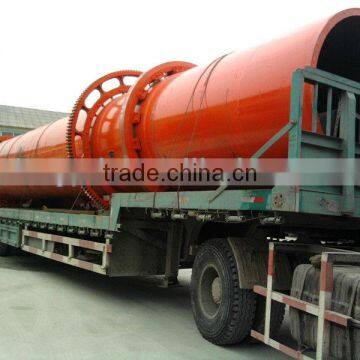

1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse
Parameter:
Model (mm) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (kw) | Production capacity(t/h) | Weight (t) |
Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Service
Gongyi Telon Industry & Trade Co., Ltd has brought together the industry elites and professional technology to develop new products incessantly with the advanced level in domestic. It has set new benchmark in quality through our quality policy that ensures only the best raw material and qualitative machines. Therefore, firstly we source qualitative raw material from credible vendors and then manufacture first-rate charcoal machines. We perform various tests at regular intervals on those machines as well.
Not only manufactures high quality products, Gongyi Telon Industry & Trade Co., Ltdalso provides exceptional services for all of our products. Our engineers offer topnotch support in overseas and domestic for site installation from the very beginning by answering technical questions and developing solutions in conjunction with our customers. The engineers can also be sent to overseas. Meanwhile, for products that require repair, we will supply customers with Analysis Reports and a Solutions Plan.
If you have any other questions about our products, you may contact MrZhou Tel:86-371-64360058 64360056
Fax:86-371-64360058
Zip code:451200
Address: Jianshe Road,Gongyi City,Henan Province, PR China
