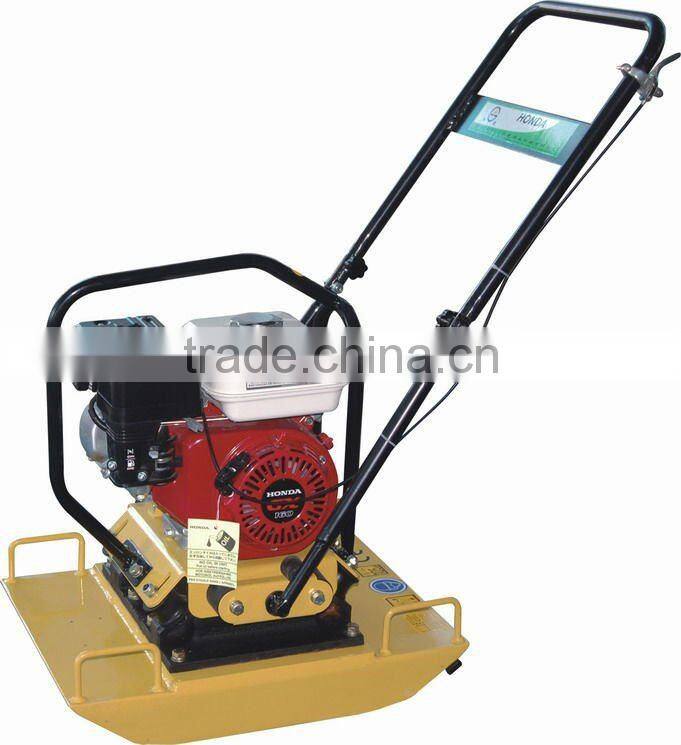

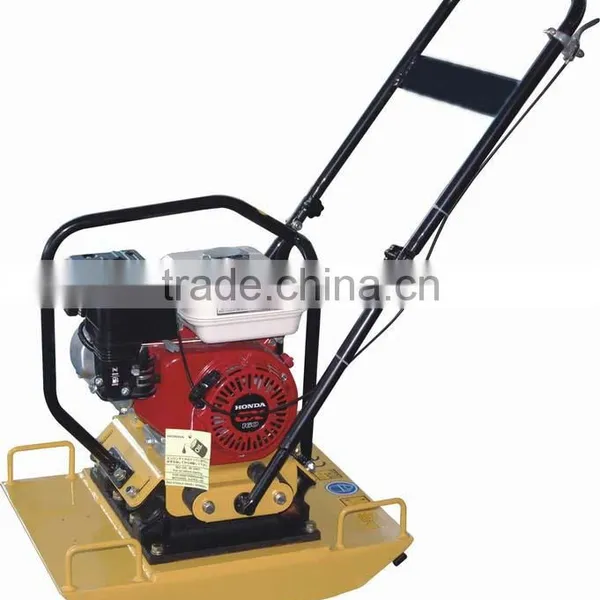

Hot-sale Model HGC100H Vibratory Compactor Plate Compactor Manufacture

Name: Hot-sale Model HGC100H Vibratory Compactor Plate Compactor Manufacture
Brand: HUAGUANG
SKU: 140180710
Availability: InStock

US$ 1 - 500 MOQ: 5 Sets

Key Specifications

Condition:

New

Application:

construction work(job site)

Power Type:

Gasoline

Ningbo Huaguang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction work(job site)

Power Type Gasoline

Brand Name HUAGUANG

Model Number HGC100H

Place of Origin Zhejiang, China

Power(W) HONDA GX160 5.5HP

Dimension(L*W*H) 640*485*800mm

Weight 100kg, 93kg

Certification CE

Warranty one year

HGC100H vibraory compactor

*vibration isolated reversible handle for easy operation

*open design reduces dirt building.

*heavy-duty shock mounts reduce vibration to the upper engine&handle

*protection frame is available as optional.

*throttle control is available as optional

Technical Specification

Model	HGC100H	HGC100R	HGC100P	HGC100D
Engine	Air-cooled,single cylinder,4-stroke
Engine Type	Petrol,Honda GX160	Petrol,RobinEY20	Chinese Petrol Engine	Chinese Diesel Engine
Power (hp)	5.5(4.0kw)	5.0(3.7kw)	5.5(4.0kw)	3.4(2.5kw)
Weight (kg)	93(205 lbs)	93(205 lbs)	94(207 lbs)	104(230 lbs)
Centrifugal force (KN)	19.8
Frequency (vpm)	7000
Compaction depth (cm)	30(12in)
Travel speed (cm/s)	18(7in/s)
Efficiency (m²/hr)	277(2983 ft²/hr)
Plate Size (cm)	61×44(24×17in)
Dimension (cm)	110×44×85(43×17×33in)
Optional	with water tank, additional weight 6 kgs
