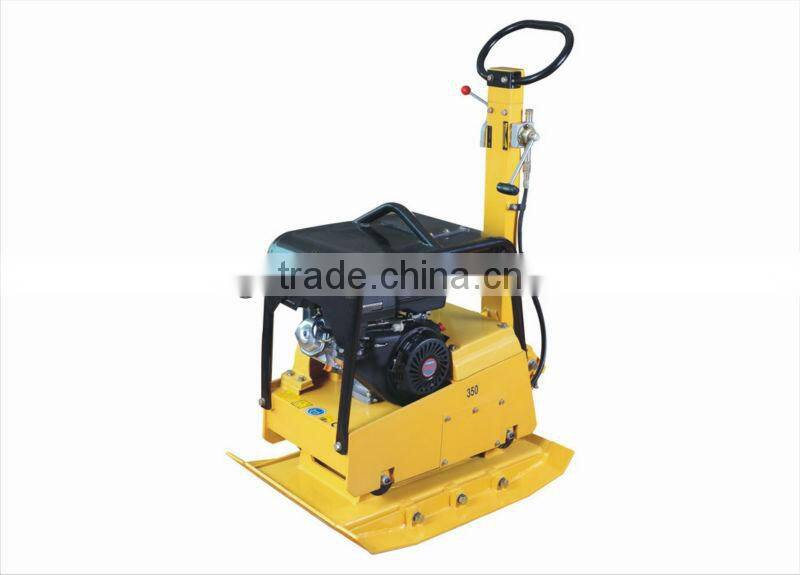

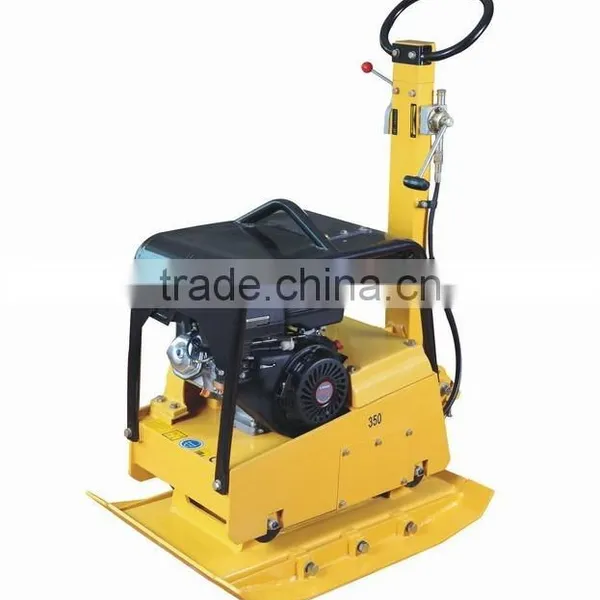

HGC350 Reversible Plate Compactor Tamping Compactor Manufacture

Name: HGC350 Reversible Plate Compactor Tamping Compactor Manufacture
Brand: HUAGUANG
SKU: 140180698
Availability: InStock

US$ 1 - 1,000 MOQ: 5 Sets

Key Specifications

Condition:

New

Power Type:

Gasoline

Brand Name:

HUAGUANG

Ningbo Huaguang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Gasoline

Brand Name HUAGUANG

Model Number HGC350H

Place of Origin Zhejiang, China

Power(W) 13HP

Certification CE

Warranty one year

Weight 340kg

vibratory plate compactor

*Easy-to-reach locates controls

*Large shock mounts reduce vibration to the handle

*Heavy-duty shock mounts reduce vibration to the upper deck

*Wear-resistant base plates extend life,open design to reduce dirt building

*Centrally-located lifting bar allows wasy transportation in and out of trenches

*Wrap around protection cage protects the plate from accidental job-site damage

*Heavy duty industrial throttle control is availables as optional..

Technical Specification

Model	HGC350H	HGC350P	HGC350D
Engine	Air-cooled,single cylinder,4-stroke
Engine Type	Petrol,Honda GX390	Chinese Petrol Engine	Chinese Diesel Engine
Power (hp)	13.0(9.5kw)	13.0(9.5kw)	8.5(6.3kw)
Weight (kg)	340(748 lbs)	340(748 lbs)	355(781 lbs)
Centrifugal force (KN)	38
Frequency (vpm)	3750(63Hz)
Compaction depth(cm)	90(34in)
Travel speed (cm/s)	29(11im/s)
Efficiency(m²/hr)	720(7756 ft²/hr)
Plate Size(cm)	89×48(35×19in)
Working Dimension(cm)	178×68×90(70×27×35in)
Optional	additional extension plate 2×10cm(2×3.95in)
