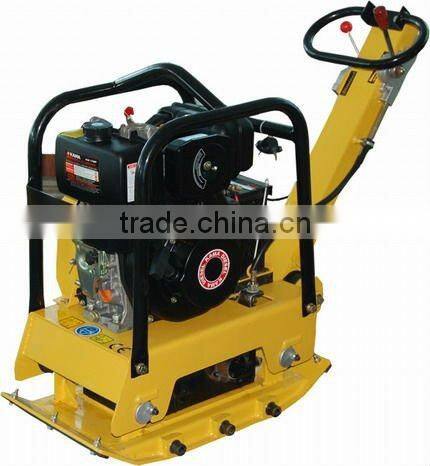

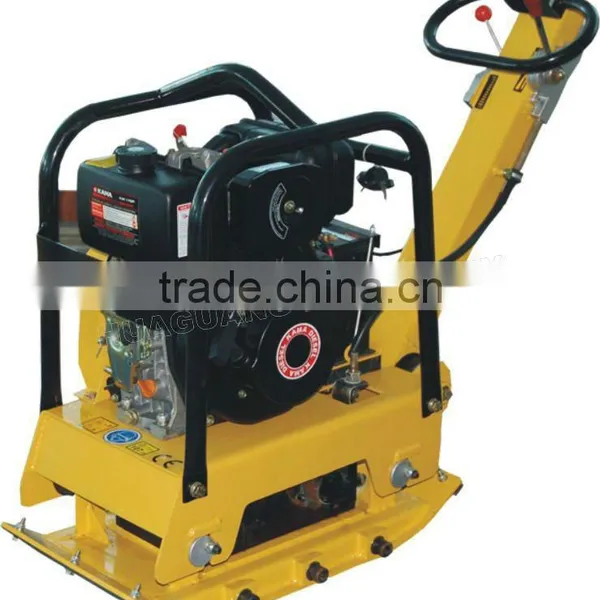

HGC125D Diesel Reversible Plate Compactor Earth Compactor

Name: HGC125D Diesel Reversible Plate Compactor Earth Compactor
Brand: HUAGUANG
SKU: 140180700
Availability: InStock

US$ 1 - 1,200 MOQ: 5 Pieces

Key Specifications

Condition:

New

Application:

construction work

Power Type:

Diesel

Ningbo Huaguang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction work

Power Type Diesel

Brand Name HUAGUANG

Model Number HGC125D

Place of Origin Zhejiang, China

Power(W) 3.4hp

Weight 124kg

Certification CE

Warranty one year

HGC 125 reversible plate compactor

low maintenance design-less time and less costly to repair

superior compaction in any direction

*Easy-to-reach locates controls

*Large shock mounts reduce vibration to the handle.

*Heavy-duty shock mounts reduce vibration to the upper deck

*Wear-resistant base plates extend life,open design to reduce dirt building

*Centrally-located lifting bar allows wasy transportation in and out of trenches

*Wrap around protection cage protects the plate from accidental job-site damage

*Heavy duty industrial throttle control is availables as optional

Technical Specification

Model	HGC125H	HGC125R	HGC100P	HGC100D
Engine	Air-cooled,single cylinder,4-stroke
Engine Type	Petrol,Honda GX160	Petrol,RobinEY20	Chinese Petrol Engine	Chinese Diesel Engine
Power (hp)	5.5(4.0kw)	5.7(4.2kw)	5.0(4.0kw)	3.4(2.5kw)
Weight (kg)	125(275 lbs)	125(275 lbs)	125(275 lbs)	130(286 lbs)
Centrifugal force (KN)	25
Frequency (vpm)	4300
Compaction depth(cm)	30(12in)
Travel speed (cm/s)	28(11in/s)
Efficiency(m²/hr)	400(4300ft²/hr)
Plate Size(cm)	62×40(24×16in)
Dimension(cm)	120×40×93(47×16×37in)
