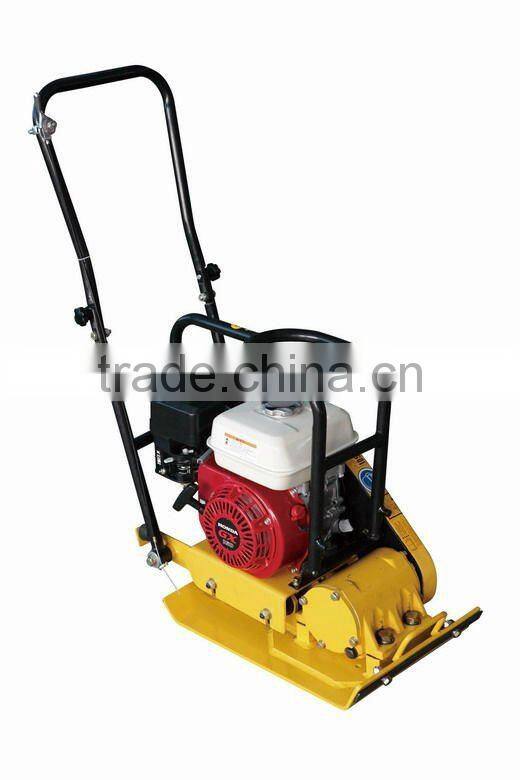

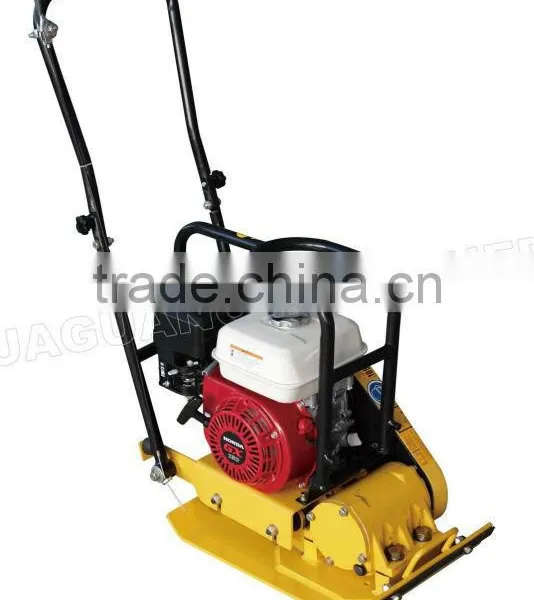

HGC60 Plate Compactor/vibrator Compactor/small Compactor, Huaguang

Name: HGC60 Plate Compactor/vibrator Compactor/small Compactor, Huaguang
Brand: HUAGUANG
SKU: 140180712
Availability: InStock

US$ 100 - 500 MOQ: 5 Pieces

Key Specifications

Condition:

New

Application:

construction work

Power Type:

Gasoline

Ningbo Huaguang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction work

Power Type Gasoline

Brand Name HUAGUANG

Model Number HGC60

Place of Origin Zhejiang, China

Dimension(L*W*H) 108*35*85

Weight 64kg

Certification CE

Warranty one year

HGC60H vibratory plate compactor

Features:

1.foldable handle for easy transportation and stock

2.heavy-duty stock mounting reduces vibration to the upper engine handle

3.sealed belt cover to prevent sand soil in.

4.open plate provides self cleaning

5.built-in wheel for easy transportation

6.radius base plate for easy access to corners.

7.round edge protects the exciter housing and even object around working site

8.throttle control is available as optional..

Technical Specification

Model	HGC60H	HGC60R	HGC60P
Engine	Air-cooled,single cylinder,4-stroke,gasoline
Engine Type	Honda GX160	Robin EY20	Chinese Petrol Engine
Power (hp)	5.5(4.0kw)	5.0(3.7kw)	5.5(4.0kw)
Weight (kg)	62(136 lbs)
Centrifugal force (KN)	10.5
Frequency (vpm)	5600(93Hz)
Compaction depth (cm)	20(8in)
Travel speed (cm/s)	34(13in/s)
Efficiency (m²/hr)	423(4557ft²/hr)
Plate Size (cm)	50×35(20×14in)
Working Dimension (cm)	108×35×85(43×14×33in)
Optional	with water tank, additional weight 6 kgs
