Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity

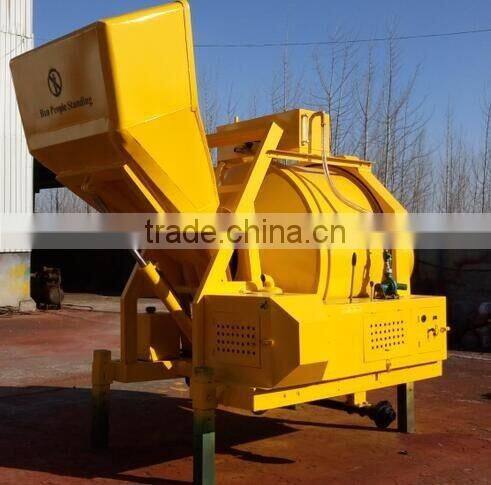

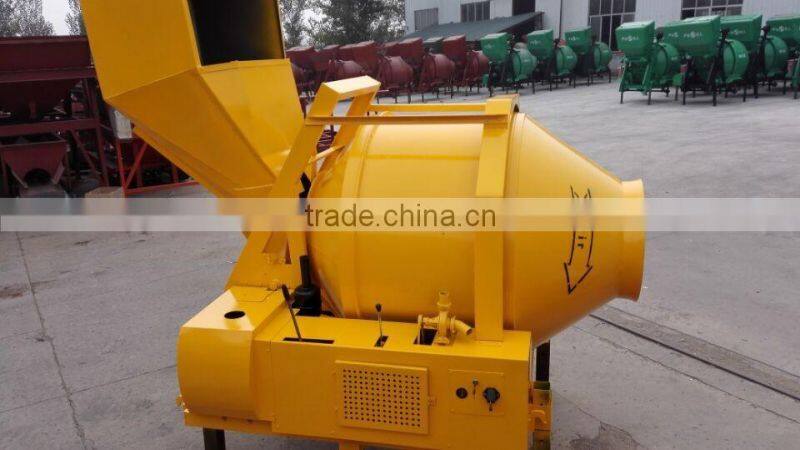

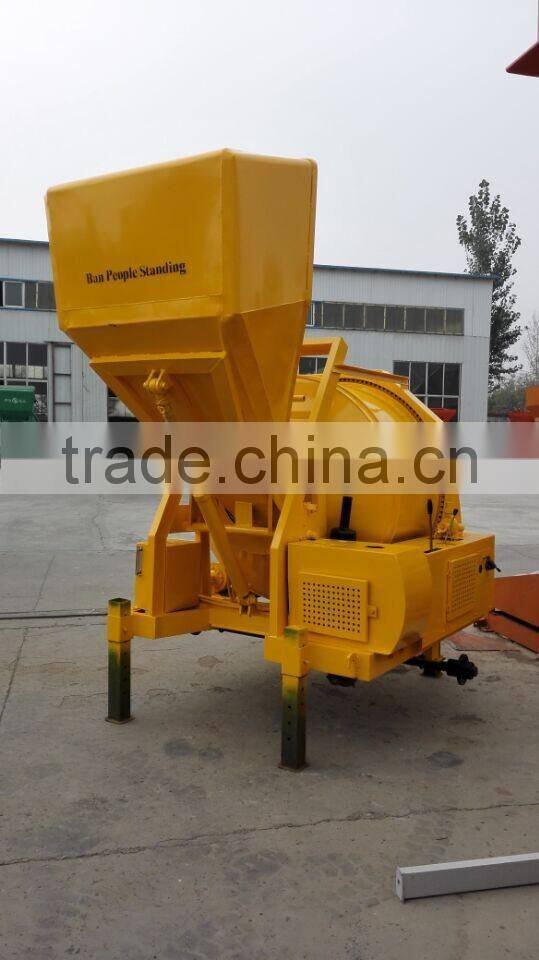

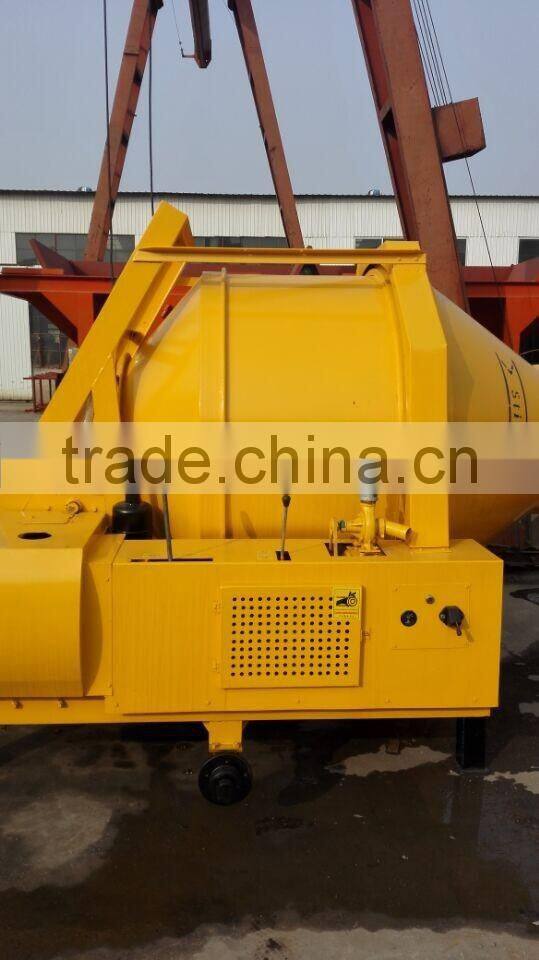

Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-1
Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-2

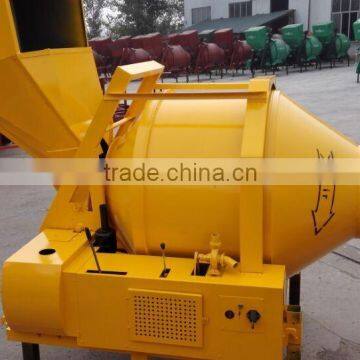

Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-3
Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-4

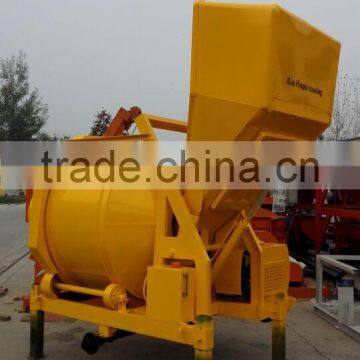

Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-5
Chinese Famous Brand New Concrete Mixer Machine Price With 500L Output Capacity photo-6
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ANSION
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name ANSION
Model Number JZC500-DCH
Motor Power 5.5kw
Mixing Power 18.5 Kw
Charging Capacity 750L
Reclaiming capacity 500L
Speed of Mixing Drum 14 R/min
Water Supply Mode Water Pump
Working Cycle Period 60s
Discharge Way Reverse-Rotation
Outline Dimension 3500*2200*2550 mm
After-sales Service Provided Engineers available to service machinery overseas

 ANSION brand new concrete mixer JZC500-DCH (500L output capacity)



Chinese famous brand new concrete mixer machine price with 500L output capacity

Chinese famous brand new concrete mixer machine price with 500L output capacityChinese famous brand new concrete mixer machine price with 500L output capacityChinese famous brand new concrete mixer machine price with 500L output capacity



Product Description



 Model Concrete mixer JZC500-DCH
 Type With diesel engine, water tank, 2 wheels
 Output capacity 500 L
 Feeding capacity 750 L
 Working mode

 Gear ring drive, drum-type, veering for mixing, changeover for output

 Theoretical productivity 25 m3/h
 Aggregate max. partical size (Gravel/cobble) 60 mm
 Rated power 22HP
 Water pump motor power hydraulic motor
 Gear pump pressure 20 MPa
 Diversion valve pressure 31.5 MPa
 Water supplying error  < 2 %
 Max. towable speed 20 km/h
 Wheel type 75-16
 Lifint type Hydraulic cylinder tilting feeding device
 Transporting dimension by container 3500*2200*2550 mm
 Total weight 2400 kg
 QTY by one 40HQ 4 sets
 Diesel engine ZS1115M
 Type Horizontal type, single cylinder, 4 stroke
 Cylinder diameter 115 mm
 Displacement 1.195 L
 Rated power 14.71 kW
 ISO Standard power with fuel limited (ICFN) 16.18 kW
 Cooling type Evaporation water cooling
 Start type Electric start
 Net weight 195 kg
 Overall dimension 970*463*699 mm
