High Quality AS500 5TN 4x4 Retroescavadeira Brasil With Joystick and AC
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ANSION
Model Number:
AS500
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AS500 5TN 4x4 Retroexcavadora Cargadoras China Con Joystick y ACUS$ 13,500 - 15,000MOQ: 1 Set -
2017 New WZ30-25 Backhoe Loader Auger Drill for Sale in the PhilippinesUS$ 25,000 - 30,000MOQ: 1 Set
-
AS870 Used Engine Dubai 8.2ton Backhoe Loader Dubai Carraro Electric TransmissionUS$ 33,000 - 39,000MOQ: 1 Set
-
AS870 8ton 3CX Backhoe Loader Dubai Original Manufacturer With Deutz Engine and Carraro Electric TransmissionUS$ 33,000 - 39,000MOQ: 1 Set
-
AS500 Used 4WD Mini Articulated Backhoe LoaderUS$ 13,500 - 15,000MOQ: 1 Set
Condition
New
Brand Name
ANSION
Model Number
AS500
Place of Origin
Shandong, China
Type
Backhoe Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
5100*1960*2900 mm
Rated Load
1600kg
Certification
ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
4x4 5TN RETROESCAVADEIRA BRASIL AS500
- Powerful engine - China famous brand XINCHAI Stage-III 37kW
- Single joystick pilot control
- 4-wheel-driving axles for powerful traction
- New structure for better loading and digging view
- Luxury cabin with A/C
- Standard with quick coupler for pallet fork, wood grapple etc.
Main Specification
Total Length | mm | 5100 | |
Total Height | mm | 2900 | |
Total Width | mm | 1960 | |
Total Operating Weight | kg | 5400 | |
Backhoe Parameter
| Rated Backhoe Bucket Capacity | m3 | 0.2 |
Max. Digging Depth | mm | 3400 | |
Max. Digging Height | mm | 5000 | |
Max. Digging Radius | mm | 4600 | |
Turning Angle of Movable Arm | ° | 180 | |
Loading Parameter
| Rise Height | mm | 3700 |
Discharge Height | mm | 2700 | |
Min. Turning Radius | mm | 4800 | |
Discharge Distance | mm | 1000 | |
Rated bucket capacity | M3 | 0.8 | |
Rated Loading Weight | kg | 1600 | |
Rise Time of Movable Arm | s | 3.5 | |
Fall Time of Movable Arm | s | 2.5 | |
Comprehensive Time | s | 7 | |
Engine Model | Xinchai | ||
Rated Power of Engine | KW | 36.8 | |
Work Pressure | Mpa | 16~18 | |
Max. Grade Ability | % | 25 | |
Walking Speed | km/h | 18~28 | |
Min. Ground Clearance | mm | 260 | |
Wheel Base | mm | 2000 | |
Tread | mm | 1530 | |
Tire model | mm | 20.5-16 | |

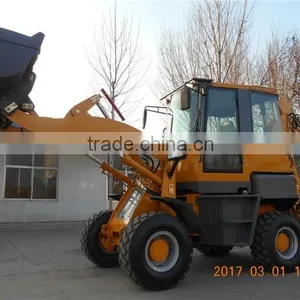

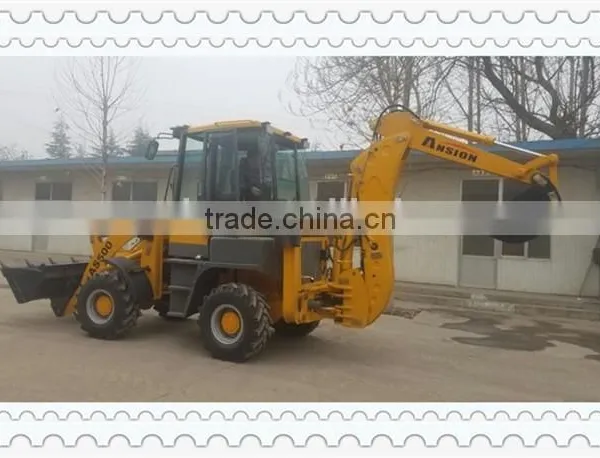

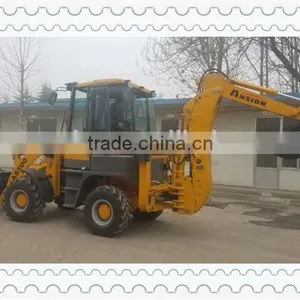

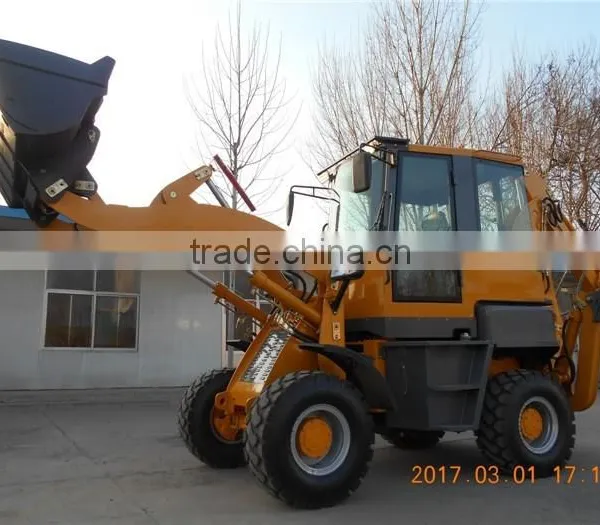

Real Picutres Show
