7" Large Screen Video Door Phone Wireless Intercom

Specifications

7" Large Screen Video Door Phone Wireless Intercom
1. Both indoor and outdoor units batteries operated
2. Take photos

7" Large Screen Video Door Phone Wireless Intercom



Fetures:
1) 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 300 meters in free field, robust anti-interference
(2) Clear night vision can capture image in low-illumination environment
(3) Rain shield for the outdoor camera is available
(4) 7 inch TFT color panel
(5) Surveillance, wireless unlock, hands-free call and talk
(6) 16 chord melodies and melody volume is adjustable
(7) Brightness and talk volume are adjustable
(8) Date (only one outdoor camera with one indoor monitor system supports) and time shown on screen
(9) Indoor monitor could take pictures automatically or by instruction. It could store up to 100 pictures (max 500 pictures with extra storage) with date and time

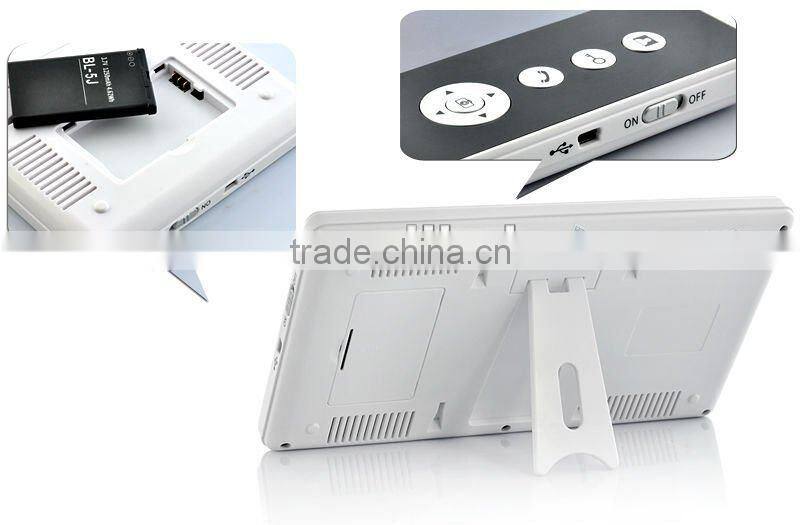

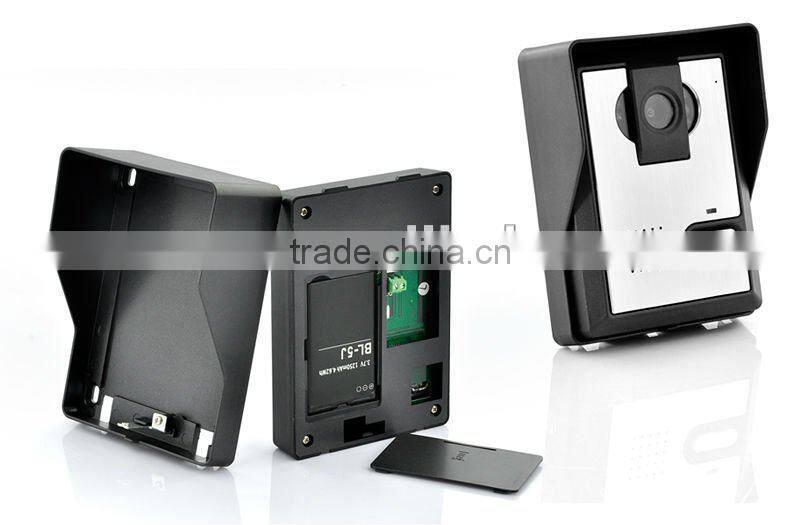

(10) BL-5J battery of camera and monitor is replaceable and rechargeable
(11) Outdoor camera has two working modes:
1) Indoor monitor can proactively monitor outdoor anytime if outdoor camera’s power adaptor is applied;
2) The indoor monitor can’t proactively monitor the outdoor if outdoor camera is using battery instead of power adapter. The working cycle for battery is about half a year.
(12) Wireless unlock control supports power on and power off unlock mode
(13) One outdoor camera supports up to 4 indoor monitors and one indoor monitor can support up to 4 outdoor cameras

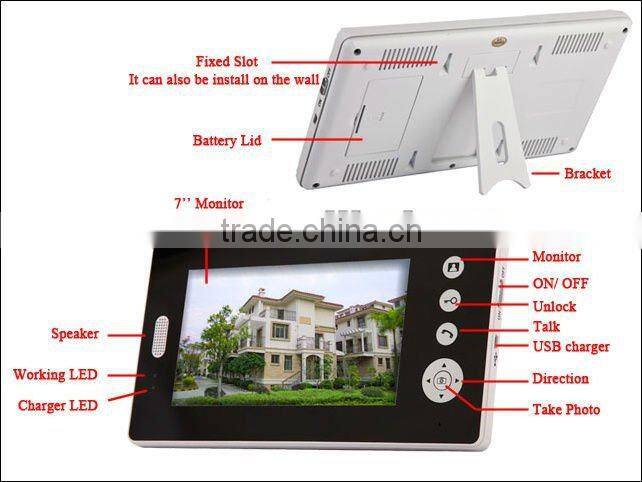

Indoor Monitor Specifications:
- Screen - 7 inch TFT LCD monitor
- On Screen Indicators - Monitor State, Lock/Unlock, Talk, Take a Picture, Increase Volume, Decrease Volume, View Last Picture, View Next Picture, Signal Bar, Battery Bar
- Power Source: Internal Battery (3.7V 1350 mAh Rechargeable Li-ion)
- Receiving Frequency - 2.4GHz
- Wireless transmitting range - approx. 250 meters (ideal conditions)
- Onboard Buttons/Indicators - Unlock Door, View Monitor. Talk Button, MIC, LED Indicator, Mini USB Input, Speaker, Volume -/+, Brightness control -/+, Antenna, Power ON/OFF Switch
- Dimensions: L:102 x W:134 x H:55 (mm)

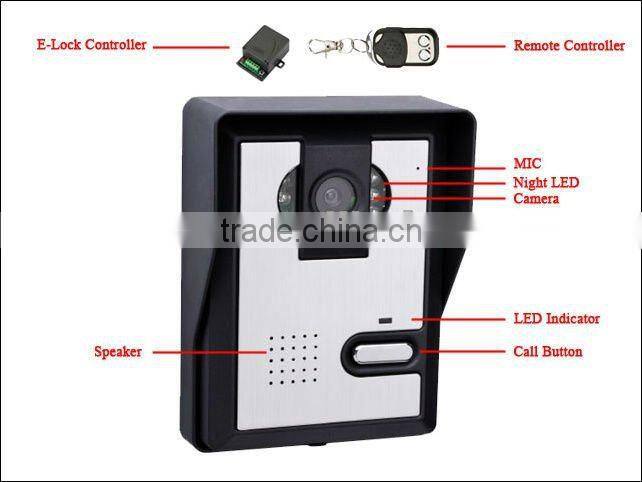

Outdoor Camera Specifications:
- Camera Sensor - CMOS
- Light Source - Six (6) Infrared LED lights
- Power Source - AC Adapter (100-240V) 50/60Hz
- Transmitting Frequency - 2.4GHz
- Wireless receiving range - approx. 250 meters (ideal conditions)
- Onboard Buttons/Indicators - Call Button, 6 LED Lights. MIC, Speaker, LED Indicator, Power ON/OFF Switch
- Dimensions: L:127 x W:95 x D:36 (mm)
