Specifications

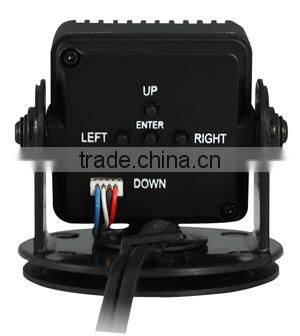

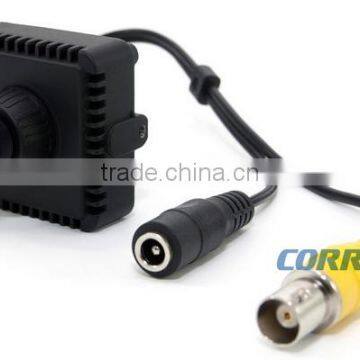

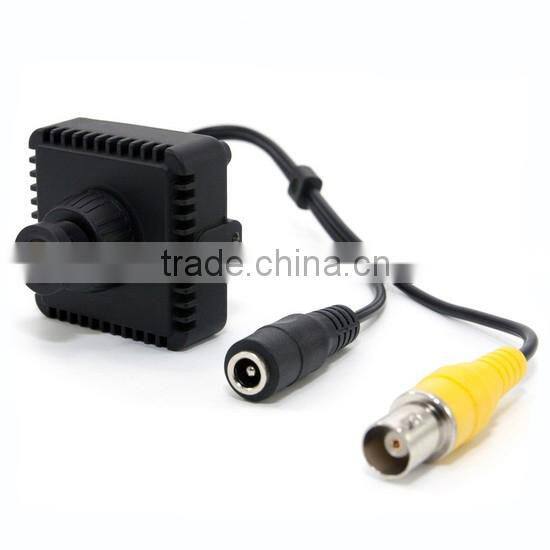

690TVL Ultra WDR Pixim Seawolf HD CCTV Mini Camera1. Wide angle lens and pinhole lens optional
2. Weight: 110g
This is an ultra WDR camera with 2.8mm Wide Angle lens, OSD function and mini metal housing, which adopts SEAWOLF innovative Pixim's DPS image sensor.
Features:
- Pixim's innovative SEAWOLF image sensor chip
This camera adopts innovative DPS(Digital Pixel System) image sensor and image processing technology. The sensor picks up details from each pixel based on hundreds of samples per video frame. vs CCD's limited exposures, to ensure wider dynamic range than analog CCD. - Ultra Wide Dynamic Range
The captured wide dynamic range is 102dB typical and can reach 120dB maximum - High Effective Resolution
Image resolution as high as 690TVL, offering enhanced horizontal and vertical resolution useable in existing as well as new CCTV systems. - Auto D/N shift mode
Adopt color mode in day, because the light is enough in day; at night the illumination is lower which need higher sensitivity and better image quality, so it change to B/W mode automatically. - High Class Menu Operation (OSD)
- 3D-DNR(Digital Noise Reduction)
- High Resolution, 690TVL
- Power input: DC12V
- 2.8mm wide angle lens
- High performance OSD menu
- Suitable to install on FPV model
Sensor | Sensor | 1/3-inch DPS Sensor |
Menu Operation | Video Format | PAL/NTSC |
Resolution | 690 HTVL Effective* | |
Mini. | 0 Lux IR ON | |
S/N Ratio | up to 50dB max (Y signal, AGC off) | |
Ess Modes | 1x~32 x | |
AGC | Programmable up to 50dB | |
WDR | 120 db(max) | |
Iris Control | Electronic iris/Auto iris lens (DC drive) | |
Extended Slow Shutter | 2x / 4x / 8x / 16x / 32x | |
Noise Reduction | 3D Motion Adaptive | |
Digital Zoom | 8x | |
White Balance | ATW, AWB | |
Low Light Mode | Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image | |
Day/Night | True Day/Night, Soft Day/Night (B/W) | |
Sync Mode | Internal/Line Lock | |
Power | Voltage | 12V DC |
Current | ≤150mA(IR OFF) ≤750mA(IR ON) | |
Lens | 2.8mm | |
Vide output | 1.0Vp-p/75 Ω Composite | |
IR Range | / | |
Operating Temp. | -10°C~50°C | |
Storage Temp. | -20°C~60°C | |
Dimension | 43*43*30mm | |
Weight | 110g | |

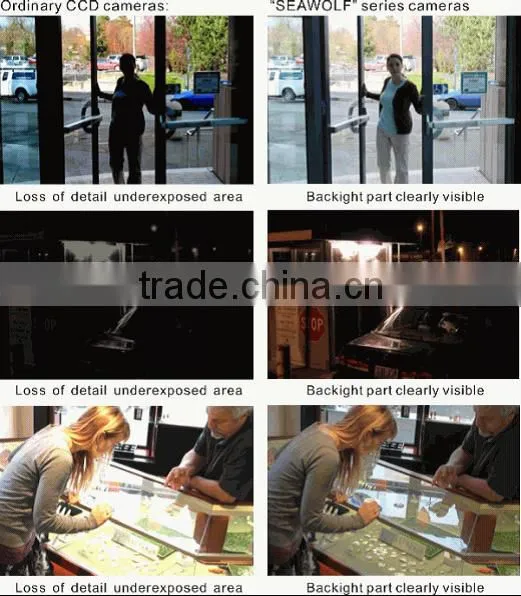

Comparision below between Pixim Seawolf Camera and Ordinary CCD Camera in different lighting conditions:
