520TVL Smallest HD Mini Camera Color 0.008lux Night Vision

Shenzhen Correa Electronic Co., Ltd.
520TVL Smallest HD Mini Camera Color 0.008lux Night Vision thumbnail-1
520TVL Smallest HD Mini Camera Color 0.008lux Night Vision photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
CS900V9
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Correa
Model Number CS900V9
Type Analog Camera
Style Mini Camera
Sensor CMOS
Technology Infrared
Special Features Other, Lens optional

Specifications

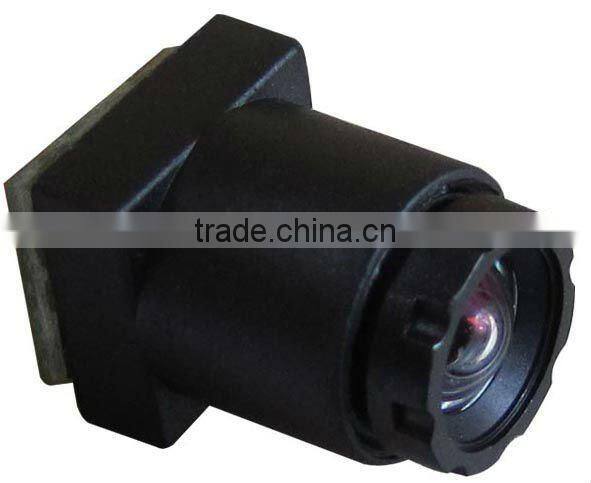

520TVL Smallest HD Mini Camera Color 0.008lux Night Vision
1. Net weight: ONLY 2 grams

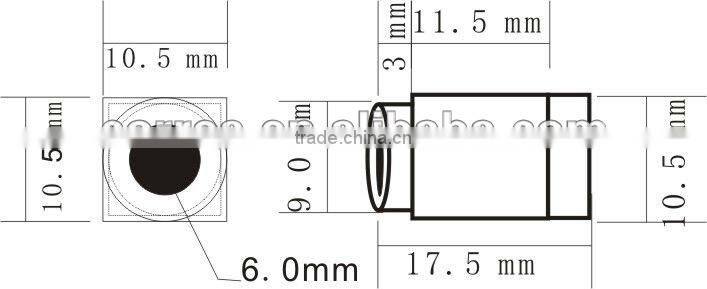

2. Smallest size:10.5X10.5X17.5mm

It’s an ultra small high definition CCTV camera, Minimum illumination 0.008lux, which can view clearly in almost complete darkness.



Full TV system, applicable worldwide.



Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.


PICK UP ELEMENT
Single chip 1/3" CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:656(H)×492(V)
PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SCANNING SYSTEM
2:1 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F2.0 /90 °
S/N RATIO
52dB
ELECTRONIC SHUTTER
OUT (1/60 S TO 1/100000 S)
OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO OUT
1.0V p-p/75ohm
SIZE (L x W x H)
10.5x10.5x17.5mm
WEIGHT
2g
WORK CURRENT
70mA
POWER REQUIREMENT
DC 3.3V-6V
OPERATING TEMPERATURE
- 10° C ~ +50°C ,less than 90% RH
Connection

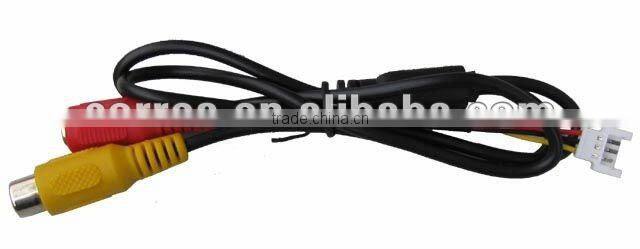

PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT




520TVL Smallest HD Mini Camera Color 0.008lux Night Vision520TVL Smallest HD Mini Camera Color 0.008lux Night Vision520TVL Smallest HD Mini Camera Color 0.008lux Night Vision
