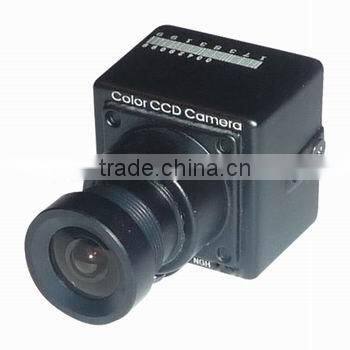

550TVL Miniature Color High Resolution Mini Spy Camera

Specifications

550TVL Miniature Color High Resolution Mini Spy Camera

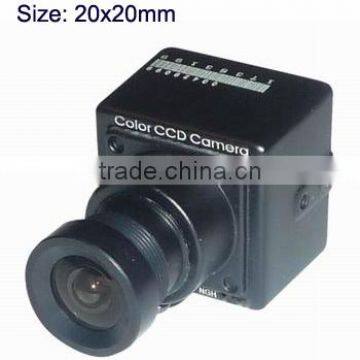

1. Tiny size: 20x20mm
2. High resolution

* 1/3" Sony Super HAD CCD II
*  High-Resolution of 550 TVL
* Extream Clear Cutting Edge Picture
* Unmatched Low-Light Sensitivity of 0.05 Lux / Faceplate
* Ultra Compact Size of 20(W) x 20(H) mm
* Fixed Iris Board , Pinhole Lens
* Attractive Design with Non-Reflective Coating

Low Current Frequency , only 50mA, solve the hot problem ,nice back light compensation, used for the ATM surveillance or under sharp contrast in lighting conditions.

Model No.	CS3120CH (3.6mm board lens)
Image Device	1/3" Sony Super HAD II Color CCD
Horizontal Resolution	540 TVL
Minimum Illumination	0.05 lux
Number of Pixels	PAL : 752(H) x 582(V), NTSC :768(H) x 492(V)
Scanning System	PAL:625 Lines,50 Field/Sec; NTSC:525 Lines,60 Field/Sec
Sync System	Internal Synchronization
Video output	1Vp-p 75 Oms , Negative
White Balance	Auto
S/N Ratio	More Than 48dB (AGC off)
Gamma Characteristic	0.45
Electronic Shutter	PAL : 1/50~1/100,000 Sec; NTSC :1/60~1/100,000 Sec, auto
Lens	3.6mm MTV lens
Power Consumption	DC 5-15V, 50mA
Operation Temperature	-10°C ~ + 50°C, RH 95% Max
Storage Temperature	-20°C ~ + 60°C, RH 95% Max
Housing	Black
Dimension	20x20mm,2-board
