1/3 SONY CCD Nextchip 2040E LED Flashlight DVR Camera

Name: 1/3 SONY CCD Nextchip 2040E LED Flashlight DVR Camera
Brand: Correa
SKU: 140095294
Availability: InStock

Shenzhen Correa Electronic Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Correa

Model Number:

FL3160R

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Correa

Model Number FL3160R

Sensor CCD

Specifications

1/3 SONY CCD Nextchip 2040E LED Flashlight DVR Camera
1) 2.0 Inch LCD Screen
2) Built-in MIC
3) H.264 Video Compression

Features:

> Aluminum alloy housing.

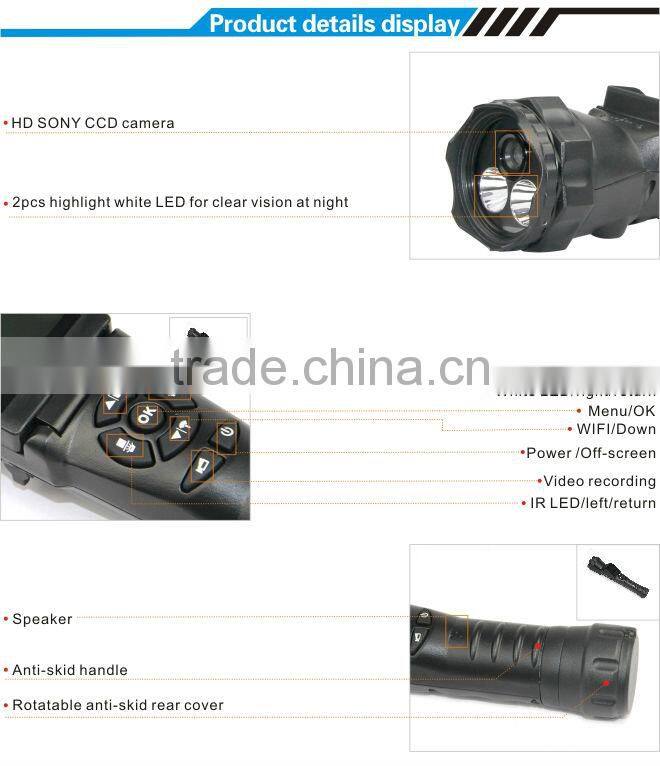

> HD SONY CCD camera.

> 2pcs 3W highlight white LED with design, easy to search object within 50M at night.

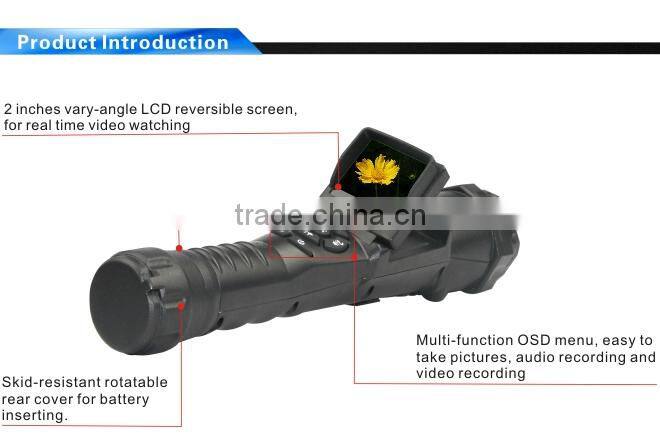

> 2.0" vary-angle LCD reversible screen is convenient or real-time watching. Supports Recording, Video,Photographing, lighting, etc.

> Maximum memory is up to 16GB.

> Multi-function OSD menu, easy to take pictures, audio recording and video recording.

> GIS anti-shake chip design, correct error of digital video, keep smooth video at motion conditions.

> Support software upgrade.

Model No.	FL3130R
Image Sensor	1/3" SONY CCD
CCD Camera Solutions	Nextchip 2040E
TV Lines/Pixel	600TVL
CCD Effective Pixels	PAL: 752(H)582(V) NTSC: 768(H)494(V)
Lens / Interface Type	8mm MTV
Digital Scheme	Zoran coach11
Video compression	H.264
Video format	AVI
Video file format	30 frames / sec., 15 frames / sec.
Photo format	JPEG
Photo size	720480,640480
Microphone	Built-in microphnoeφ = 4.0 * 1.5
Speaker	φ13mm(8R)
Illumination	0 LUX (white light normally opens)
Auxiliary lamp	Two white Leds
Headphone jack /AV OUT	φ=2.5mm
USB Interface	USB 2.0
Wireless video transmission	2.4G
LCD screen	2.0 inches, resolution: 320 * 240
Memory Card	the standard MICRO SD CARD 4GB, up to 16 GB
Battery Specification	3.7V rechargeable lithium battery, 4000mAh
SNR(Signal to Noise Ratio)	>48dB
Relative humidity	5-95% RH
Storage temperature	-20℃--70℃
Operating temperature	-10℃--50℃
Power consumption	5W
Net weight	482g
Gross weight	1416g
