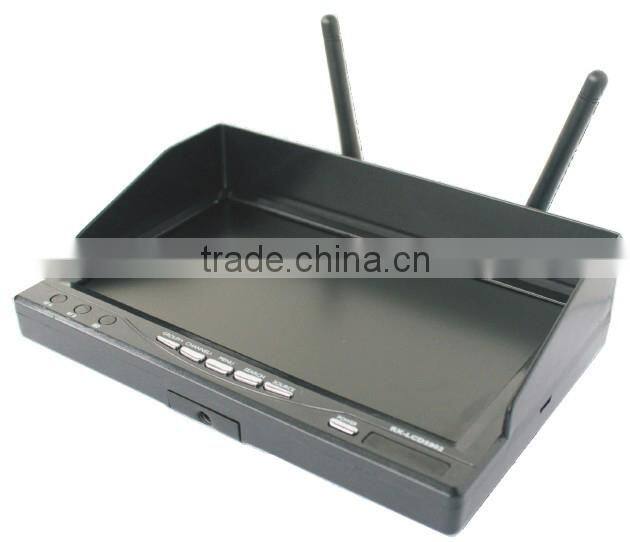

DJI Phantom Vision 2 Version 3.0 7 Inch 5.8GHz Battery Powered LCD Video Monitor
Quick View:
Item Name | DJI Phantom Vision 2 Version 3.0 7 Inch 5.8GHz Battery Powered LCD Video Monitor |
Brand | Correa |
Model No. | RX-LCD5802 |
Frequency | 5.8GHz |
Screen size | 7" |
Screen type | TFT LCD Screen/long life, LED backlight |
Resolution | 800x480 |
Channels | 32CHS |
Interface Type | RCA |
Contrast Ratio | 700:1 |
Response Time | 2ms |
Brightness | 450cd/m2 |
Battery | Built-in 7.4V 2500mAH high-capacity polymer battery |
Specification:
† Built-in 5.8Ghz Dual diversity receiver automatically for best reception
† Built-in 2CH 5.8Ghz AV output and 1CH AV input
† Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
† Work status OSD display: RSSI indication; Battery indicator; Channel indication
† A key to automatic signal search
† Support Chinese and English menu
† Size: 180mm x 120mm x 50mm(Note:Sunshield height:28mm)
† Working Voltage: DC 7~16V
† Power Consumption: 650mA@12V
† Battery charging current: 850mA @12V( max)
† Working temperature: -10℃~+ 65 ℃
Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Can receive 2 different channels at the same time
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
4 Bands and total 32 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search, Simple operation
Work status OSD display:Always be aware of the device working condition.
Display Parameters
Screen size: 7”
Screen type: TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 450cd/m2
View Angle: 140/120degree (Horizontal/Vertical)

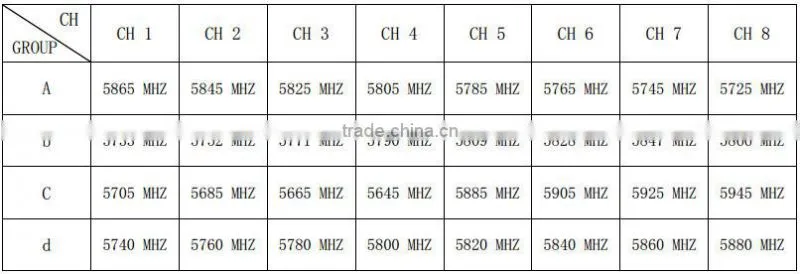

Channels:
Our Factory:
There are plenty of reasons to choose us:
* Quality Parts and Equipment Used- Up to Lifetime Warranties.
* Sufficient Stock and Fast Delivery.
* Price Promise – We guarantee the best price. If not we will better any price with the same specification.
* The Best Customer Service – We endeavor to provide 100% customer satisfaction. 10/10 customers are very happy with the service they received.
* Environment Friendly - We recycle all waste packaging, and old electronic equipment. We believe in making a difference.
to contact us for more details about Pricing, Packing, Shipping and Discount!
