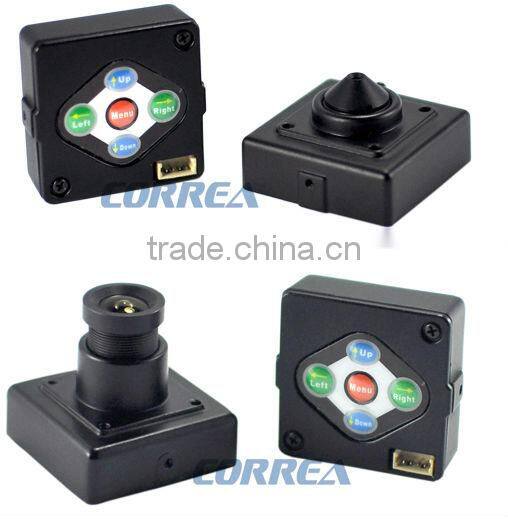

30x30mm 1/3" Sony 960H SuperHAD CCD II 700TVL Pinhole Digital Mini Camera

Name: 30x30mm 1/3" Sony 960H SuperHAD CCD II 700TVL Pinhole Digital Mini Camera
Brand: Correa
SKU: 140095296
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Correa

Model Number:

CSYH3130CH

Shenzhen Correa Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Correa

Model Number CSYH3130CH

Type Other, Analog Camera, Video Camera

Style Mini Camera

Sensor CCD

Technology Pinhole

Specifications

1/3" Sony 960H SuperHAD CCD II 700TVL Pinhole Digital Mini Camera
1. Compact size:30x30mm
2. True Color
3. With OSD button

1/3" Sony 960H SuperHAD CCD II 700TVL Pinhole Digital Mini Camera

Features:

> 1/3" SONY Super HAD CCD ll
> 700TVL Resolution
> 0.05Lux / F2.0
> DC5-15V
> D-WDR, BLC, HLC, AGC, 2D DNR
> Privacy,Motion detection
> Day&Night

> With OSD Button
> Compact Size:30x30mm

Description:

Model Name	CSYH3130CH
Image Device	1/3" Color Sony Super HAD (Hi-Res.) NEXTCHIP-2090 CCD
Scanning System	2:1 Interlace
Scanning Frequency	PAL : 15.625 KHz(H), 50 Hz(V) / NTSC : 15.734 KHz(H), 59.94 Hz(V)
H. Resolution	700TVL
Effective Pixels	PAL:752(H)X582(V)/NTSC:768(H)X494(V)
S/N Ratio	More than 52dB (AGC Off)
Min. Illumination	0.05Lux / F2.0
Power Comsumption	DC5-15V , 60mA
Sync. System	Internal
Video Output	1.0 Vp-p Composite (75ohm)
Lens	Fixed Board Lens / Pinhole Lens / Vari-Focal Lens
Dimensions (mm)	30x30mm
OSD functions
Electronic Shutter	Auto,FLK, 1/250 ~ 1/100,000 sec
AGC	Low , Middle , High
White Balance	ATW, AWB, AWC, Manual, Anti CRL
Day&Night	Color , Auto, B/W
Motion Detection	Off,On (4 area)
Privacy	Off,On (8 area)
HLC	All day / Night only
DNR	2D DNR, Level Adjustable
Language	English,French, Russian, German,
Language	Spanish, Dutch,Chinese, Japanese, Portuguese
