Specifications
Wireless 600TVL Remote Control FPV Mini Square Camera1. Tiny: 30x30mm
2. Nice Back Light

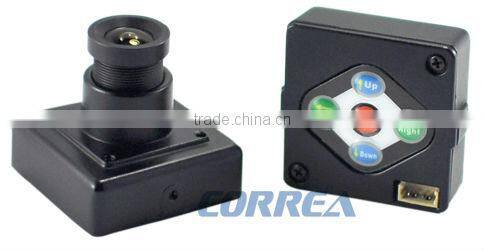

Wireless 600TVL Remote Control FPV Mini Square Camera
1. With OSD function (Day&Light selectable, Mirror Image selectable (ON/OFF); White Balance selectable (Selectable (ATW / AWB / FIXED / MANUAL); Language selectable; AGC,BLC,Mask adjustable.
2. 600TVL high resolution
3. Good image in low light conditions
Key Specifications:
---Image sensor: 1/3" Sony SuperHAD II Color CCD
---Number of pixels: PAL: (H) 752 x (V) 582
---Horizontal resolution: 600TV lines
---Video output: 1Vp-p, 75Ω (negative)
---With OSD function
---White balance: Auto/ manual
---S/N ratio: More than 46dB
---Minimum illumination: 0.1Lux
---Lens options: Board lens, Pinhole lens
---Dimensions: 30 x 30mm
---Working Voltage: DC5-15V
---Housing: Black
Model No. | CSYA3130CH | CSY3130CH |
CCD Chip | 1/3" Sony SuperHAD II | |
Effective Pixels | PAL:752(H) x 582(V) NTSC:768(H)x494(V) | NTSC:512(H) x 492(V) PAL:500(H) x 582(V) |
Resolution | 600 TVL | 480TVL |
Illumination | 0.05Lux | 0.01Lux |
Lens | 3.7mm pinhole lesn / 3.6mm MTV lens (optional) | |
Scanning Sys. | 2:1 Interlace | |
Scanning Freq.(H) | PAL : 15.625 KHz / NTSC : 15.734KHz | |
Scanning Freq. (V) | PAL : 50Hz / NTSC : 59.94Hz | |
S/N | >48dB | |
Sync. | Internal | |
Gamma | γ = 0.45 | |
Video Output | 1[Vp-p]75(Ω) | |
AGC | OFF/Low/Middle/High optional | |
White Balance | ATW | |
BLC | ON/OFF (2 areas control) | |
HLC | ON (default) | |
Motion Detection | ON/OFF (4 areas optional)Alarm output | |
WDR | (D-WDR)ON | |
NR | ON | |
Parking Line | OFF | |
OSD control | Yes, On Screen Display | |
Input Voltage | DC5V-15V (±10%) | |
Current Comsuption | 60mA-130mA | |
E-shutter | PAL : 1/50 ~ 1/100,000sec NTSC : 1/60 ~ 1/100,000sec Auto | |
Size | .30mm(W)x30mm(H) | |
