Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 700TVL 1/3' Sony Super HAD CCD Mini FPV Camera OSD

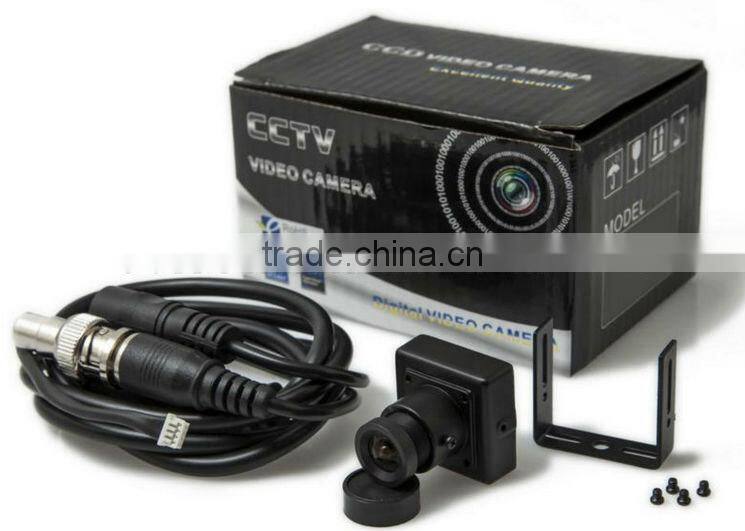

700TVL 1/3' Sony Super HAD CCD Mini FPV Camera OSD

Name: 700TVL 1/3' Sony Super HAD CCD Mini FPV Camera OSD
Brand: Correa
SKU: 140095282
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Correa

Model Number:

CSYH3125CH

Shenzhen Correa Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Correa

Model Number CSYH3125CH

Type Analog Camera

Style Mini Camera

Sensor CCD

Technology Pinhole

Special Features Other, Lens for option

Specifications

700TVL 1/3' Sony Super HAD CCD Mini FPV camera OSD
1. Wide voltage: DC5-15V
2. Low Illumination: 0.01LUX
3. Nice Image

700TVL 1/3' Sony Super HAD CCD Mini FPV camera OSD

---1/3” SONY SuperHAD II CCD + Nextchip 2090 DSP, 700TVL

---Wide range power supply DC 5-15v, more convenient for different applications

---Low Current Frequency

---Nice back light compensation and good image, used for the ATM surveillance or under sharp contrast in lighting conditions like aeria video

Model No.	CSYH3125CH
Image Device	1/3” SONY Super HAD II CCD + Nextchip 2040 DSP
Number of Pixels	PAL : 752(H) x 582(V) 440K / NTSC :768(H) x 494(V) 380K
Scanning System	PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
Sync System	Internal Synchronization
Horizontal Resolution	700 TV Line
Minimum Illumination	0.01Lux
S/N Ratio	More Than 48dB
Gamma Characteristic	0.45
Video output	1Vp-p 75 Oms , Negative
Lens	3.6mm board lens by defaut (wide angle lens, pinhole lens for option)
Electronic Shutter	PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
Working Voltage/Current	DC 5-15V / 60mA-130mA
Housing	Black
Dimension	25x 25mm
OSD Menu (On Screen Display) functions	Exposure	ON/OFF
	White Balance	Adjustable
	BLC	Adjustable
	Day&Night	Color / B/W
	DPC	ON/OFF
	Motion Detection	ON/OFF
	Privacy	Available
	Parking Line	ON/OFF
	Language	Selectable
