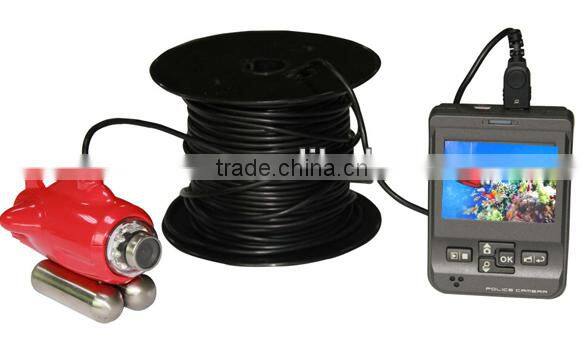

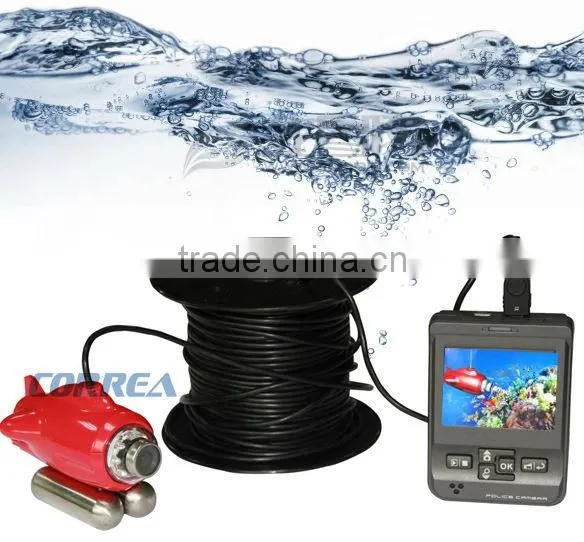

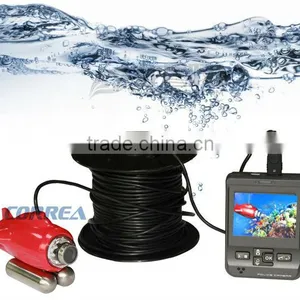

540TVL SONY CCD Color Underwater Camera for Fishing 50m Cable
- 4000 Set / Sets per Month
- Hong Kong
- T/T Credit Card PayPal
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Correa | Model Number: | CS-UC60CH |
Type: | Digital Camera | Style: | Box Camera | Sensor: | CCD |
Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Specifications
540TVL SONY CCD Color Underwater Camera for Fishing 50m Cable1. 2.5" portable recorder
2. Real-time video
3. High Resolution
This is a 50m deep underwater camera system. It utilizes the latest image compression technology and use high resolution image CCD with 540TVL, low light performance. The shell of camera is made of professional stainless steel material and passed the IP68 waterproof test (50m deep water). It is suitable for aquaculture, deep-hole exploration, underwater operations, diving adventure, leisure fishing, underwater viewing, swimming pools, and so on. There is a 2.5 inch LCD monitor coming with the camera, and it supports 16G SD card, there is a 2GB SD card included in the package.
* 1/3'' Sony Super HAD CCD, 540TVL
* 8pcs high light white Leds to assure excellent pictures in dark place
* Stainless steel material housing
* IP68-50m deep water, passing SGS the IP-X8 Continuous Immersion Test
* Portable video recorder with 2.5''TFT LCD
* H.264 video compression, real time recording
* Support1-16G Micro SD card ( With 2GB SD card included in the package)
* 2300mAh high capacity lithium battery, 4 hours recording
* 4800mAh 5V Lithium battery
* Cable Length: 50m
* Stainless steel + PC housing, anti corrosion and shock-proof
* Suitable for diving, underwater work and exploration, diving, fishing

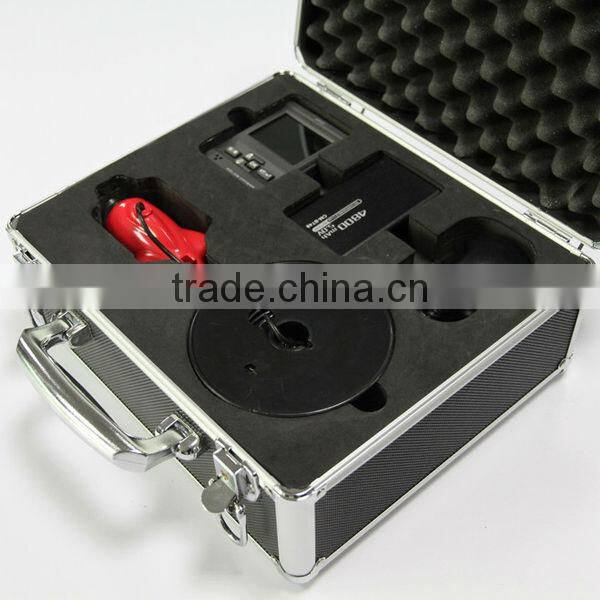

* Aluminum safe case, easy to carry and use.
Specifications:
50m Deep water camera series | |
Image Device | 1/3'' Sony super HAD CCD |
Horizontal Resolution | 540TVL |
Number of pixels | PAL: (H)752 X (V)582 / NTSC(H)768 X (V)494 |
Waterproof class | IP68-50m deep water |
Led | 8 highlight white Leds |
Visible distance | 5m |
Sync System | Internal Synchronization |
Gamma Characteristic | 0.45 |
White Balance | Auto(2400K~8000K) |
Gain Control | Auto |
B.L.C. | Auto |
S/N Ratio | More than 48dB |
Scanning Frequency(H) | PAL:15.625KHz/NTSC:15.734KHz |
Scanning Frequency(V) | PAL:50Hz/NTSC:59.94Hz |
Current Frequency | 130mA |
Lens | 3.6mm MTV lens |
Housing | Stainless Steel Material, yellow, black, red color for option |
Weight | 123g (not include the cable) |
Storage temperature | -20 C~+60 C (Humidity:10%~60%RH) |
DVR recording system | |
Video compression | H.264 |
Video Format | AVI (30frames per second) |
Still Images Format | JPEG (720X480(pixels) |
TV standard | PAL; NTSC (optional) |
Audio in | MIC |
SD Card | Micro SD card, support up to 16GB |
Display Size | 2.5'' Color LCD |
Number of Dots | 960x240 |
Luminance | 250 cd Per square meter |
Voltage | 3.7V |
Capacity | 2300mAh |
Temperature | -10~45 C |
Power Consumption | 1.6 W |
Safe case Size | 300mm x 280mm x 160mm |
