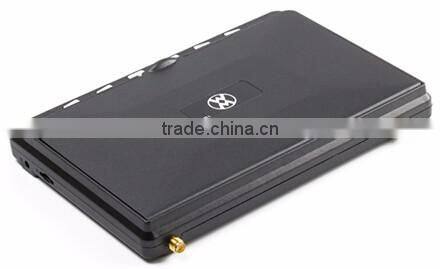

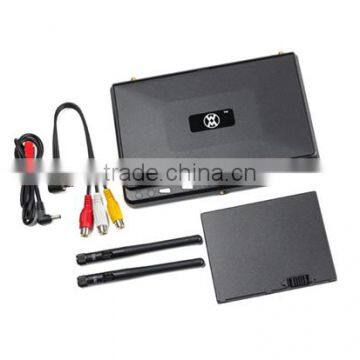

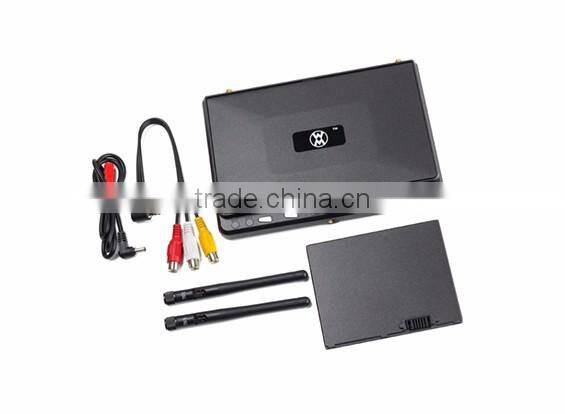

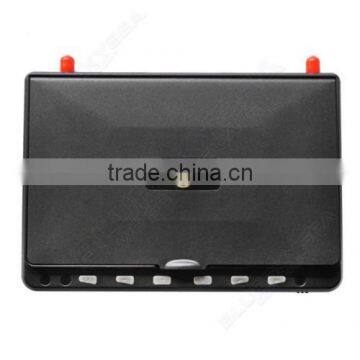

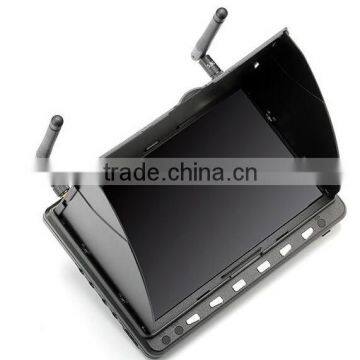

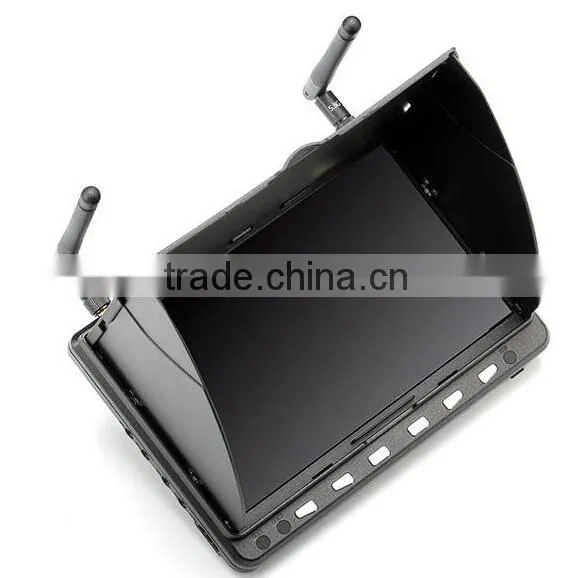

HD02 With Built In Battery No Blue Screen 1024x600 7 Inch HD FPV Monitor DVR
Features:
• 5.8GHz 40CH wireless Diversity AV receiver
• One button auto searching for easy operation

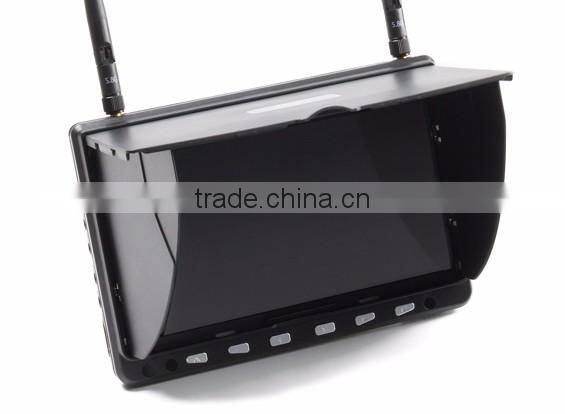

• Retractable sun shade
• Stereo speakers
• Multi-language support
• HDMI output
• With DVR Function for Video recording
• One button to record, Loop recording
• Videos playback on device
• Lipoly battery (laptop style fitting)
Specifications:
Frequency: ISM 5.6GHz-5.95GHz
Sensitivity: -92dB
Format: NTSC/PAL
Output Voltage: 1V±0.2Vp-P/75Ω
Screen Dimension: 160 x 101mm
Resolution: 1024 x 600 pixels
Luminance for LCM: 600 cd
Contrast Ratio: 700:1
Viewing Angle: 140/120 degree (horizontal/vertical)
Audio Range: 20Hz-20KHz stereo
Audio Output: Left 20mW + Right 20mW
Stereo Double Speaker: Left 1W; Right 1W
Antenna Connector: RP-SMA
HDMI Interface: C type
Working Voltage: DC7V- 24V
Current (monitor mode): 12V/650mA
Current (video mode): 12V/780mA
Battery: built-in 2000mAh Battery
Video Format: MP4
Video Resolution: 720x576
External SD Card: Max 32GB (not included)
Dimensions: 176 x 128 x 23mm
Weight: 250g
Channels and Bands:
A 5865 MHz, 5845 MHz, 5825 MHz, 5805 MHz, 5785 MHz, 5765 MHz, 5745 MHz, 5725 MHz
B 5733 MHz, 5752 MHz, 5771 MHz, 5790 MHz, 5809 MHz, 5828 MHz, 5847 MHz, 5866 MHz
C 5705 MHz, 5685 MHz, 5665 MHz, 5645 MHz, 5885 MHz, 5905 MHz, 5925 MHz, 5945 MHz
D 5740 MHz, 5760 MHz, 5780 MHz, 5800 MHz, 5820 MHz, 5840 MHz, 5860 MHz, 5880 MHz
R 5658 MHz, 5695 MHz, 5732 MHz, 5769 MHz, 5806 MHz, 5843 MHz, 5880 MHz, 5917 MHz
Ready in stock and we ship within 1 working day.
1) How much is the shipping cost?
Please let us know which items you will purchase, and the quantity, so that we will quote you the shipping.
2) Do you offer discounts?
Discounts applied for quantity orders. We are factory-direct and bigger quantity more discount.
3) How do I order?
Please email us the quantity and items you will order, we will send you a Proforma Invoice with payment details.
4) If you have other query or concern, please don't hesitate to contact u
Correa, is a professional manufacturer & exporter specialized in FPV Equipments including FPV Cameras, Wireless Tx Rx (5.8GHz, 1.2-1.3 GHz, 900MHz, 2.4GHz), FPV Monitors, FPV Antennas and RC Hobby Parts, etc.
With more than 8 years experience we are able to supply high quality FPV Equipments. Welcome to deal business with us!
* Enquiries will be replied within 1 working day.
* Fast samples arrangement and on time production.
* We accept payment methods include T/T, PayPal, Western Union,etc.
* All the products are aged and tested before shipment.
* Tracking information provided promptly.
