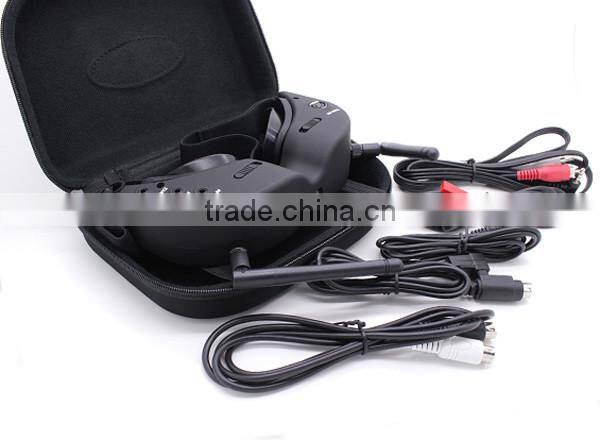

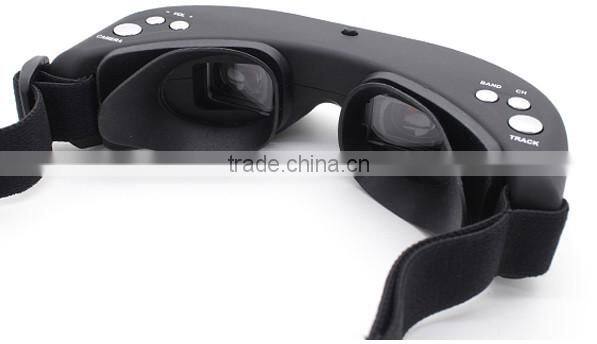

FPV Goggles 5.8GHz 40CH Diversity Receiver With Race Band

FPV Goggles 5.8GHz 40CH Diversity Receiver With Race Band thumbnail-1
FPV Goggles 5.8GHz 40CH Diversity Receiver With Race Band photo-1
US$ 245 - 290 MOQ: 1 Piece
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Correa
Contact Supplier Request Quote Chat Now
Shenzhen Correa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use Other, Vehicles & Remote Control Toys
Place of Origin Guangdong, China
Brand Name Correa
Model Number SKY01

Specifications

Wireless RC Transmitter SKY01 Goggles

1. Built-in Dual Receiver for 32 channels receiving
2. External Camera



The all-in-one GOGGLES with build- in A/V receiver and virtual real-time large-screen display can  connect with the RC Transmitter with a data cable, RC Transmitter supply power to the AIO  GOGGLES. Along with the AIO GOGGLES tracking signal output to the RC Transmitter, the AIO  GOGGLES tracking signal and the RC Transmitter control signal received by the receiver in the RC  Aircraft. Images and sound captured by Camera are transmitted to the sky by the A/V  Transmitter,Then,AIO GOGGLES can receive video and audio within a certain range, people who  wear a AIO GOGGLES can see the images from the virtual real-time large-screen display, and hear the  sound from the earphone.





Specifications:



Binocular Display

FOV

30 degrees (Diagonal)

Resolution

854X480(WVGA),  1,229,760 color sub-pixels

Brightness

350cd/m

Interpupillary distance(IPD)

60-68mm Adjustable







Wireless Receiver

ISM 5.8GHz 32 Channel, Diversity receiver.

Band

CH 1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

1

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

2

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

3

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

4

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5880M

Sensitivity

 -90dBm±1dBm

Antenna port

 2 X SMA,50ohm

Video Standard

 NTSC/PAL

Video output level

 1.0Vp-p Typ / 75ohm

Audio output level

 1.0Vp-p Typ / 10Kohm



Front Camera

FOV

120 degrees (Diagonal)

Resolution

640X480(VGA)

FOCAL LENGTH

 f=0.95mm

F/NO

 F/NO=2.0

Head Tracker

Sensor

Magnetic, Inertial and gyro

Output

 PPM 8 channel,  Optional  5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH



AV Port

Div. AV OUT(3.5mm4P)

 Diversity Video,Audio output

EAR OUT(3.5mm3P)

 32Ω/75mW or 16Ω/105mW, With volume control

AV IN(3.5mm4P)

 Video,Audio input



Power Supply

DC IN

 DC 7~28V/ 1A

Power Consumption

12V input: 4.3W

Dimensions

 168(L)X92.5(W)X41(H)mm (Not include prominent part)

Weight

 185 g

Operating Temperature

 0°C~+55°C









FPV Goggles 5.8GHz 40CH Diversity Receiver with Race BandFPV Goggles 5.8GHz 40CH Diversity Receiver with Race Band
