RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver

Shenzhen Correa Electronic Co., Ltd.
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver thumbnail-1
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver thumbnail-2
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver thumbnail-3
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver photo-1
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver photo-2
RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor With Receiver photo-3
US$ 70 - 85 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Battery
Material:
Plastic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Airplane
Power Battery
Material Plastic
Plastic Type ABS
Scale Other, 1:1
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name Correa
Model Number RX-LCD5802
Product Description

RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor with Receiver



Specifications:
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 450cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:SMA female(outer hole)
Antennas Connectors:SMA male (inner needle)



Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Can receive 2 different channels at the same time
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.

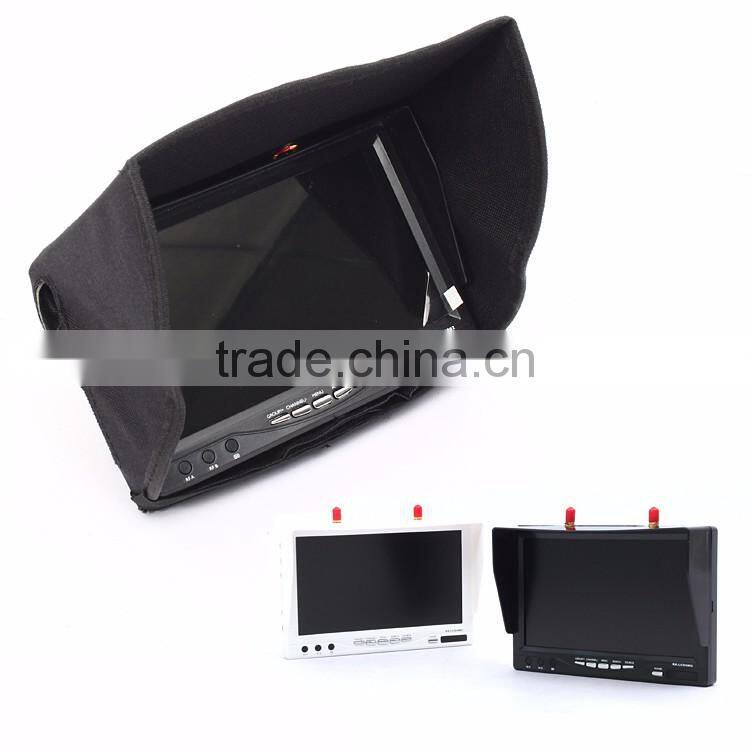

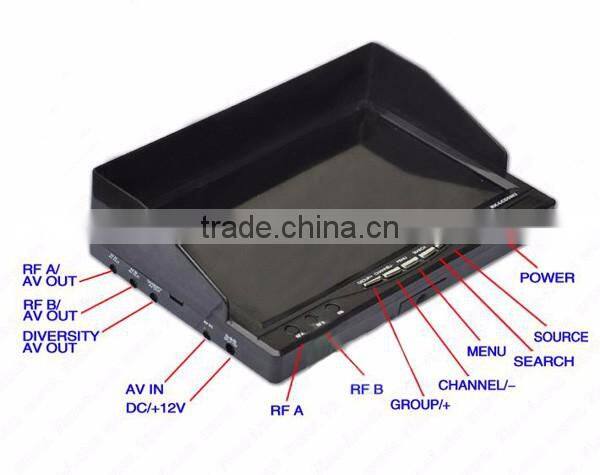

 RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor with Receiver

RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor with Receiver

Packaging & Shipping

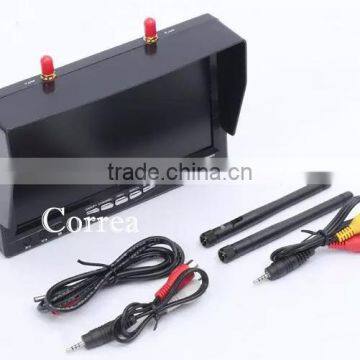

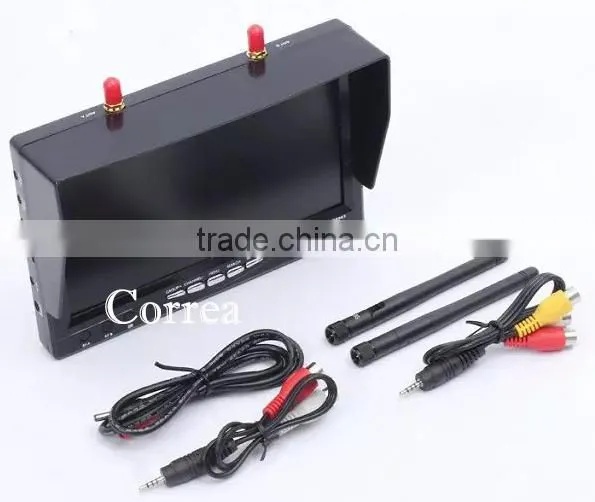

 RX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor with Receiver

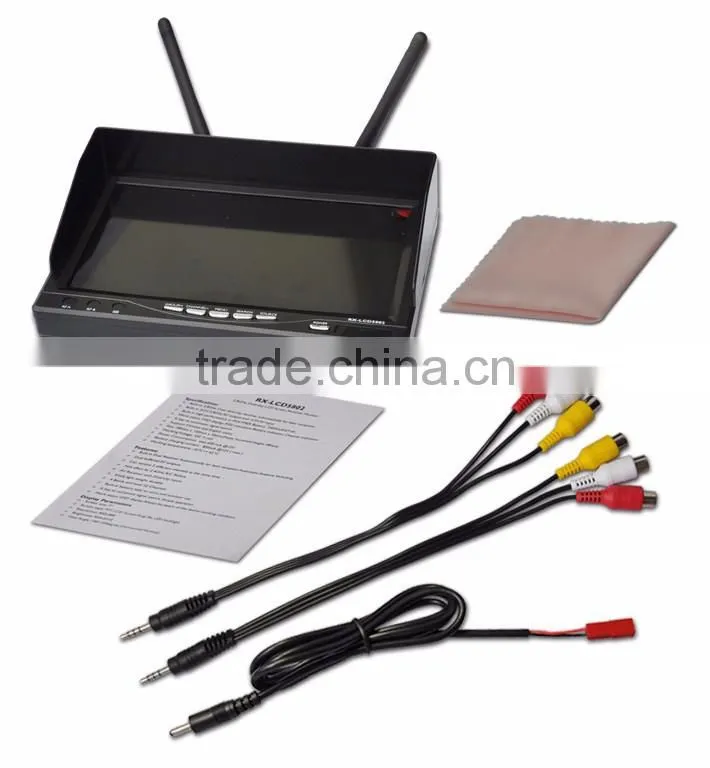

Package included the No Blue Screen FPV Monitor with Receiver and the assessories. (The white color monitor is also available)



Shipped within 1-2 working days after payment received.

Our Services

* Enquiries will be replied within 1 working day.



* Fast samples arrangement and on time production.



* We accept payment methods include T/T, PayPal, Western Union,etc.



* All the products are aged and tested before shipment.



* Tracking information provided promptly.

Company Information

Correa, is  a professional manufacturer & exporter specialized in FPV Equipments including FPV Cameras, Wireless Tx Rx (5.8GHz, 1.2-1.3 GHz, 900MHz, 2.4GHz), FPV Monitors, FPV Antennas and RC Hobby Parts, etc.



With more than 8 years experience we are able to supply high quality FPV Equipments. Welcome to deal business with us!

FAQ

1) How much is the shipping cost?

    Please let us know which items you will purchase, and the quantity, so that we will quote you the shipping.



2) Do you offer discounts?

    Discounts applied for quantity orders. We are factory-direct and  bigger quantity more discount.



3) How do I order?

    Please email us the quantity and items you will order, we will send you a Proforma Invoice   with payment details.



4) If you have other query or concern, please don't hesitate to contact uRX-LCD5802 5.8GHz 40CH No Blue Screen FPV Monitor with Receiver
