Air cooling electric cross conveyor magnetic separator
- 50 Set / Sets per Month
- Dalian
- T/T Credit Card
Product Details
Place of Origin: | Liaoning, China | Brand Name: | DENSEN | Model Number: | separator |
Type: | Other, Waste Management, Magnetic Separator |
Product Description

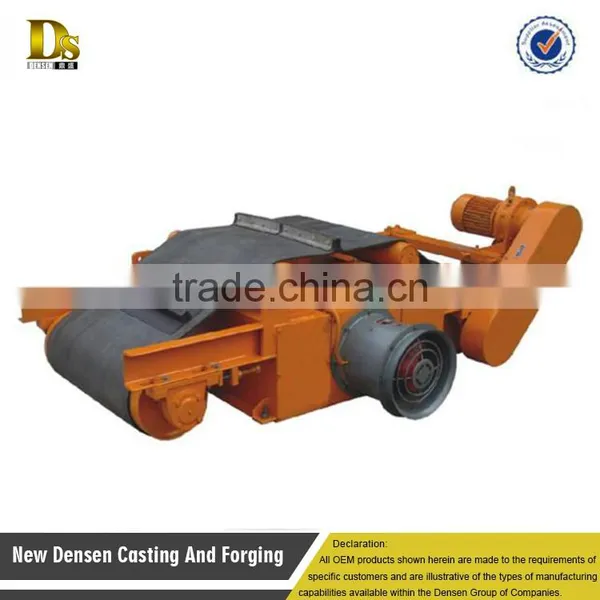

Air cooling electric cross conveyor magnetic separator
When the magnetic separator operates, the materials on the conveyor belt pass beneath the magnetic separator, and the magnetic elements, especially ferrous elements in the raw materials will be attracted to the surface of the iron-cleaning belt. Driven by the motor, the iron-cleaning belt will move forward, and the magnetic elements on the iron-cleaning belt will be driven to move accordingly under friction force and effect of baffle plate. When the magnetic elements move away from the magnetic field area, as a result of their gravity and inertia, they will either fall to another conveyor belt on the left and be conveyed to the assembling area, or just fall to a collecting box beneath the magnetic separator, and this is the end of the auto cleaning process.
Models | Conveyor Belt Width | Rated Lifting Height | Magnetic intensity | Exiting Power | Motor Power | Power of Fan | Appearance Measurement(mm) | weight | ||
mm | mm | Gs | Kw | Kw | Kw | L | W | H | Kg | |
PCDC-5 | 500 | 150 | ≥700 | ≤2 | 1.5 | 0.37 | 2160 | 1136 | 733 | 870 |
PCDC-6 | 650 | 200 | ≥700 | ≤3 | 1.5 | 0.37 | 2240 | 1270 | 733 | 1120 |
PCDC-8 | 800 | 250 | ≥700 | ≤5 | 2.2 | 0.55 | 2465 | 1539 | 738 | 1595 |
PCDC-10 | 1000 | 300 | ≥700 | ≤7 | 3 | 0.55 | 2650 | 1727 | 825 | 2365 |
PCDC-12 | 1200 | 350 | ≥700 | ≤9 | 3 | 1.1 | 3090 | 2052 | 912 | 3280 |
PCDC-14 | 1400 | 400 | ≥700 | ≤12 | 4 | 1.1 | 3266 | 2243 | 974 | 4530 |
PCDC-16 | 1600 | 450 | ≥700 | ≤15 | 5.5 | 1.5 | 3564 | 2505 | 1032 | 6510 |
PCDC-18 | 1800 | 500 | ≥700 | ≤17 | 7.5 | 1.1x2 | 3910 | 2770 | 1550 | 11840 |
PCDC-20 | 2000 | 550 | ≥700 | ≤19 | 7.5 | 1.5x2 | 4267 | 2880 | 1560 | 13060 |
Electromagnetic separators are widely used in the fields such as power station, mines, metallurgy plants, construction materials, food, etc. They possess many advantages, such as low temperature rise, good insulation, strong magnetic force, low power consumption and reliable performance.
1. Packing: Export packing
2. Shipping time: 30 days after receive the deposit
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1.We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2.Tests of materials are freely checked for the required quality of the equipment before packing.
3.Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
