Help CenterEccentric Pole Eddy Current Separator for Waste Steel Recycling
Related Products
-
Recycling Line Machine for Separating WasteUS$ 2,000 - 400,000MOQ: 1 Set -
Aluminum Recycling Machine for Pet Bottle FlakesUS$ 20,000 - 400,000MOQ: 1 Set
-
Self-Cooling Square Plate Electromagnetic Iron SeparatorUS$ 2,000 - 20,000MOQ: 1 Set
-
Waste Recovery Head Magnetic Drum for De-ironing SeparatorUS$ 2,000 - 200,000MOQ: 1 Set
-
Eddy Current Separator for PET RecyclingUS$ 2,000 - 200,000MOQ: 1 Set

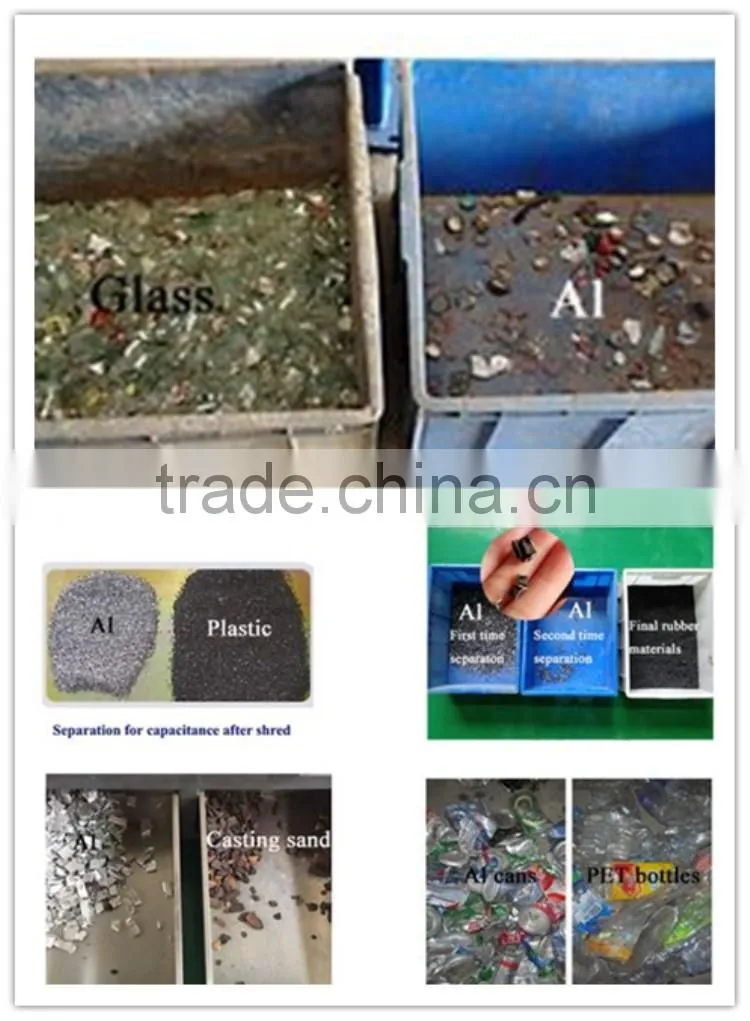

Eccentric Pole Eddy Current Separator devices with an eccentric magnitude between its rotor and tube are of an effective way of removing non-ferrous metals from other products. Application such as aluminum cans from municipal waste, aluminum flakes from shredded PET, brass and aluminum from foundry sands, and metals from shredded automobile scrap, other metals such as lead can also be removed. For successful non-ferrous separation, a magnet should be installed prior to an Eddy Current Separator.
Standard Features and Benefits:
1. Ease of operation.

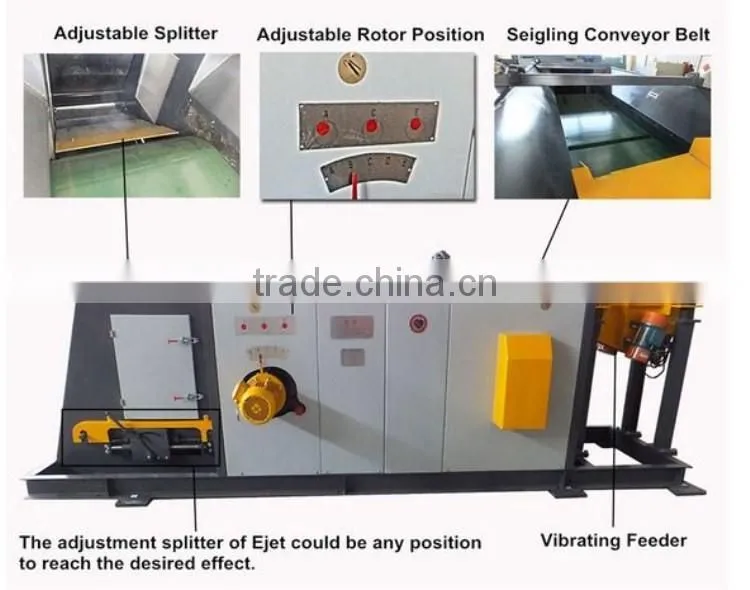

2. Eccentric Pole could be adjusted to achieve better effect.
3. There would be signals when something wrong with the machine, that would be protect the equipment from damage.
4. Advance lubrication system
Details
Working principle
Eddy current separation is based on the use of a magnetic rotor with alternating polarity, spinning rapidly inside a non-metallic drum driven by a conveyor belt. As non-ferrous metals pass over the drum, the alternating magnetic field creates eddy currents in the non-ferrous metal particles repelling the material away from the conveyor. While other materials drop off at the end of the conveyor, the non-ferrous metals are propelled forward over a splitter for separation.
Model |
ECS65P |
ECS80P |
ECS100P |
ECS120P |
ECS150P |
ECS180P |
Magnetic roller diameter (mm) |
500 |
500 |
500 |
500 |
500 |
500 |
Magnetic roller speed (r/min) |
0-3100 |
0-3100 |
0-3000 |
0-3000 |
0-3000 |
0-3000 |
Belt Width (mm) |
650 |
800 |
1000 |
1200 |
1500 |
1700 |
Belt Speed (m/s) |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
0-2 |
Power (kw) |
4.0+1.1 |
4.0+1.5 |
5.5+1.5 |
5.5+2.2 |
5.5+2.2 |
5.5+3.0 |
Weight(kg) |
2000 |
2500 |
2900 |
3600 |
3800 |
3900 |
CBM(mm) |
3670*1650*1285 |
3670*2000*1285 |
3670*2300*1285 |
4160*2400*1285 |
4160*2600*1285 |
4160*2800*1285 |
Application
1. Packing: Export packing
2. Shipping time: 30 days after receive the deposit
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1.We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2.Tests of materials are freely checked for the required quality of the equipment before packing.
3.Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
