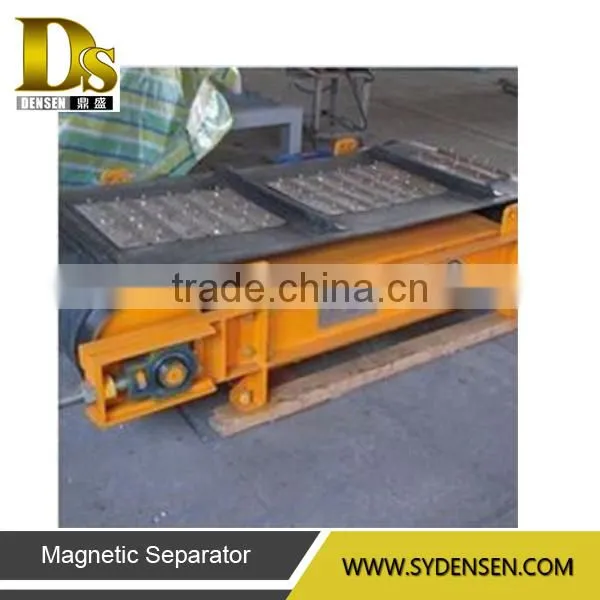

Solid Waste Permanent Magnetic Separator for Belt
Separate ferromagnetic materials from moving materials.
Widely used in conveyer belt of environment protection, resource recycling and paper industry.
Standard Features and Benefits:
1. Applies computer simulation techniques, high magnetic force strength, large gradient and suction.
2. High-performance NdFeB materials, high magnetic energy product, good resistance to demagnetize, demagnetize less than 5% within 8 years.
3.Self unloading ferromagnetic materials, smooth operation, run continuously without trouble for a long time.
4.Manual control and central control could be realized due to the control parts could be chained to belt conveyor.
Models |
Conveyor Belt Width |
Rated Lifting Height |
Magnetic intensity |
Motor Power |
Appearance Measurement(mm) |
weight |
||
mm |
mm |
Gs |
Kw |
L |
W |
H |
Kg |
|
RCYD-Z6 |
650 |
200 |
≥450 |
2.2 |
2445 |
1447 |
380 |
820 |
RCYD-Z8 |
800 |
250 |
≥450 |
2.2 |
2645 |
1447 |
440 |
980 |
RCYD-Z10 |
1000 |
250 |
≥450 |
3 |
2875 |
1473 |
440 |
1220 |
RCYD-Z12 |
1200 |
250 |
≥450 |
3 |
3065 |
1473 |
440 |
2050 |
RCYD-Z14 |
1400 |
250 |
≥450 |
4 |
3285 |
1473 |
500 |
2890 |
RCYD-Z16 |
1600 |
250 |
≥450 |
4 |
3485 |
1473 |
500 |
3250 |

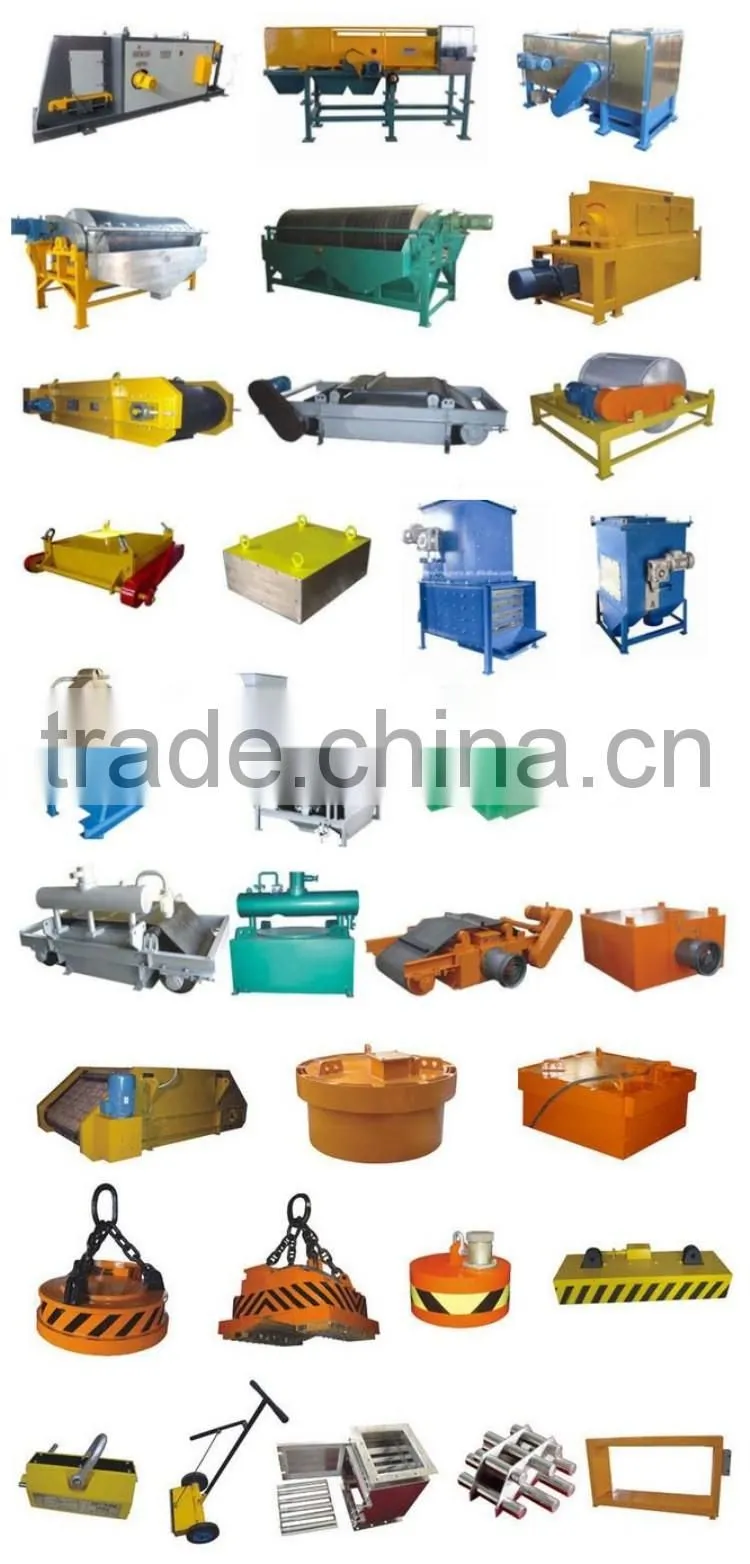

Other Products
Packing & Shipping
1. Packing: Export packing
2. Shipping time: 30 days after receive the deposit
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1.We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2.Tests of materials are freely checked for the required quality of the equipment before packing.
3.Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
