Help CenterTie Rod Hydraulic Cylinder Used for Agricuitural Machine
Related Products
-
Hydraulic Cylinders of Mechanical UsageUS$ 50 - 100MOQ: 2 Pieces -
Double Action Hydraulic Cylinder for Log Splitter Tie Rod Hydraulic CylinderUS$ 10 - 100MOQ: 1 Piece
-
ASAE Agricultural Products Tie-rod Hydraulic CylinderUS$ 10 - 100MOQ: 10 Pieces
-
Jack Crane Car Lifting Hydraulic CylinderUS$ 20 - 100MOQ: 10 Pieces
-
Clevis Rod Ends Tie-rod Small Double Acting Hydraulic Cylinder for Agricultural MachineryUS$ 30 - 100MOQ: 20 Pieces
About us:
Founded in 1986, our skilled craftsmen, using the newest methods and technologies, allow us to produce the durable, high quality, hydraulic cylinders that today's industrial world demands. We offer a solid product, competitive prices, on-time deliveries, quick order to ship times and we stand behind our product before and after the sale. Whether a single, custom cylinder or a mass order, we can deliver hydraulic cylinders of the highest quality, the first time!
The products and services offered by us include a total design service coupled with full system testing. As an ISO certified (ISO 9001-2008) company, we are confident of meeting the quality requirements of our valued customers.

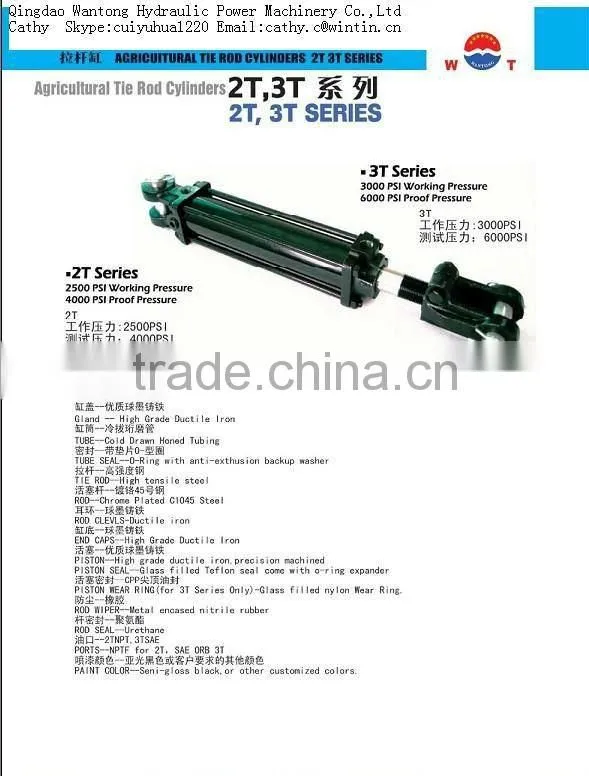

Tie rod hydrualic cylinder description:
2T Series (2500PSI working pressure 4000 PSI proof pressure)
3T Series(3000 PSI working pressure 6000 PSI proof pressure)
Tie rod hydraulic cylinders, or simply tie rod cylinders are designed with threaded steel rods to fix the two end caps to the cylinder barrel, and the steel rod are always durable and feature high strength. Tie rod hydraulic cylinders are commonly used in industrial factories.
Tie rod hydraulic cylinder Materials:
Gland--high grade ductile iron
Tube--cold draw honed tubing
Tube seal--O-Ring with anti-exthusion backup washer
TIE rod--high tensile steel
Piston rod - chrome plated C45 steel
Rod clevis --ductile iron
End caps --high grade ductile iron
Piston ---high grade ductile iron, precision machined
Piston wear ring( for 3T Series only)--glass filled nylon wear ring Rod wiper--metal encased nitrile rubber
Rod seal--urethane
Ports--NPTF for 2T, SAE ORB 3T --2TNPT 3TSAE
Paint colour--seni-gloss black, or other customized colors.

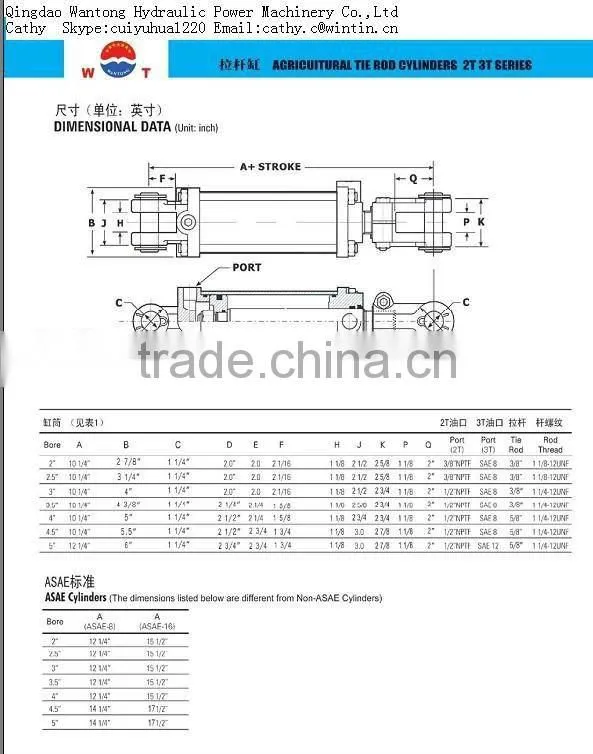

tie rod hydraulic cylinder Drawings:

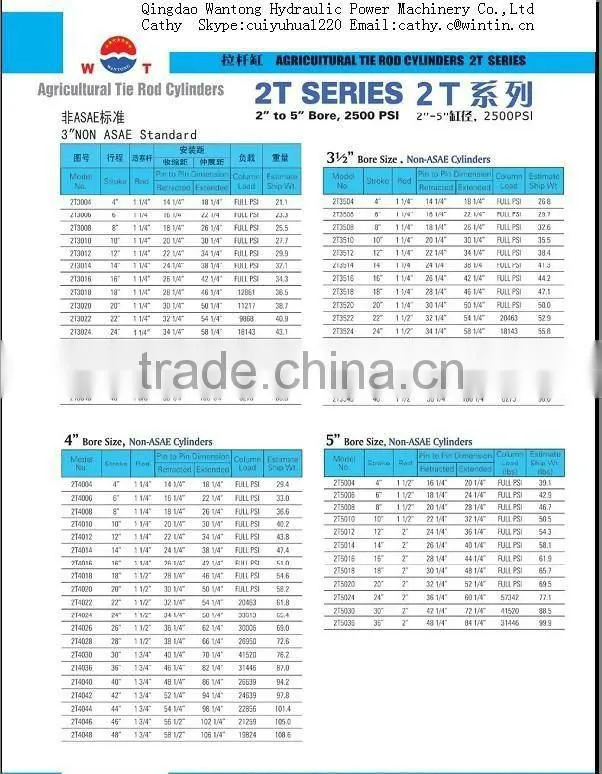

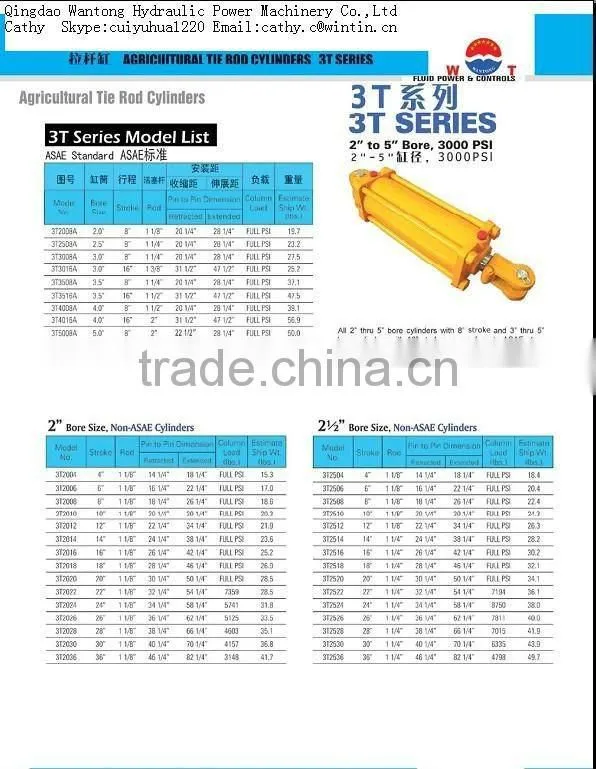

Tie rod hydraulic cylinder's catalogue:

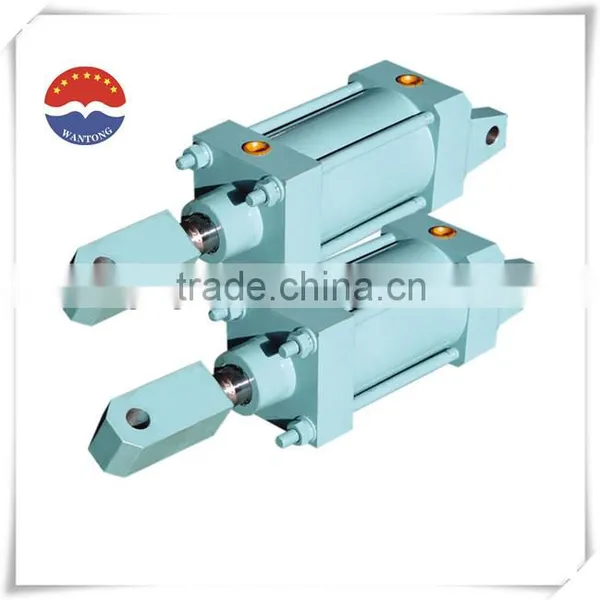

tie rod hydraulic cylinder pictures:
Our factory:
We can also supply Hydraulic power unit :
If you have other question, pls don't hesitate to contact me anytime.
Bonnenul Li
Skype: hui982452701
