Double Action Hydraulic Cylinder for Log Splitter Tie Rod Hydraulic Cylinder

Double Action Hydraulic Cylinder for Log Splitter Tie Rod Hydraulic Cylinder photo-1
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Standard or Nonstandard Standard
Structure Piston Cylinder
Power Hydraulic
Body Material Stainless Steel
Maximum Stroke according to customer's requirement
Shaft Diameter according to customer's requirement
Place of Origin Shandong, China
Model Number tie cylinder
Brand Name OEM

Specifications

agricultural tie rod Hydraulic Cylinder
1.ISO 9001:2008 ,SGS,BV
2.More than 25 years experience
3.Our own factory
4.OEM

About us:

Founded in 1986, our skilled craftsmen, using the newest methods and technologies, allow us to produce the durable, high quality, hydraulic cylinders that today's industrial world demands. We offer a solid product, competitive prices, on-time deliveries, quick order to ship times and we stand behind our product before and after the sale. Whether a single, custom cylinder or a mass order, we can deliver hydraulic cylinders of the highest quality, the first time!

The products and services offered by us include a total design service coupled with full system testing. As an ISO certified (ISO 9001-2008) company, we are confident of meeting the quality requirements of our valued customers.



  Tie Rod agricultural Hydraulic Cylinder Product description:

2T Series (2500PSI working pressure 4000 PSI proof pressure)
3T Series(3000 PSI working pressure 6000 PSI proof pressure)



Tie rod hydraulic cylinders, or simply tie rod cylinders are designed with threaded steel rods to fix the two end caps to the cylinder barrel, and the steel rod are always durable and feature high strength. Tie rod hydraulic cylinders are commonly used in industrial factories.


Tie Rod agricultural Hydraulic Cylinder Materials:

Gland high grade ductile iron
Tube seal O-Ring with anti-exthusion backup washer
TIE rod high tensile steel
Piston rod chrome plated C45 steel
Rod clevis ductile iron
End caps high grade ductile iron
piston high grade ductile iron, precision machined
Piston wear ring( for 3T Series only) glass filled nylon wear ring Rod wiper--metal encased nitrile rubber
Rod seal urethane
Ports NPTF for 2T, SAE ORB 3T --2TNPT 3TSAE
Paint colour seni-gloss black, or other customized colors
packing
polystyrene or plastic and paper inner packing, iron or wood outer packing



  Tie Rod agricultural Hydraulic Cylinder Drawings:



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder

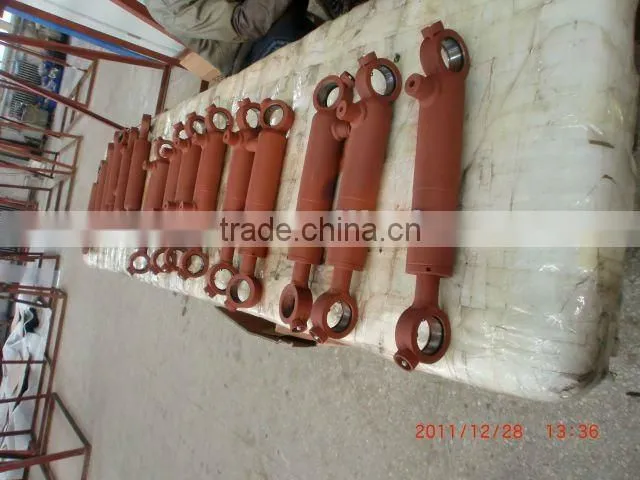

   Tie Rod agricultural Hydraulic Cylinder pictures:



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder











double action hydraulic cylinder for log splitter tie rod hydraulic cylinder





double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder

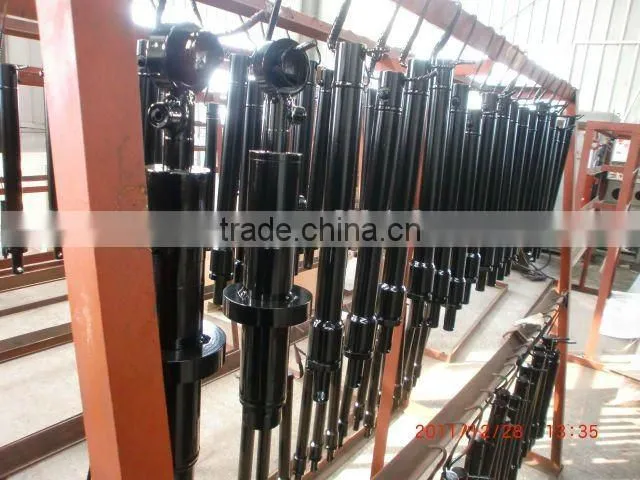

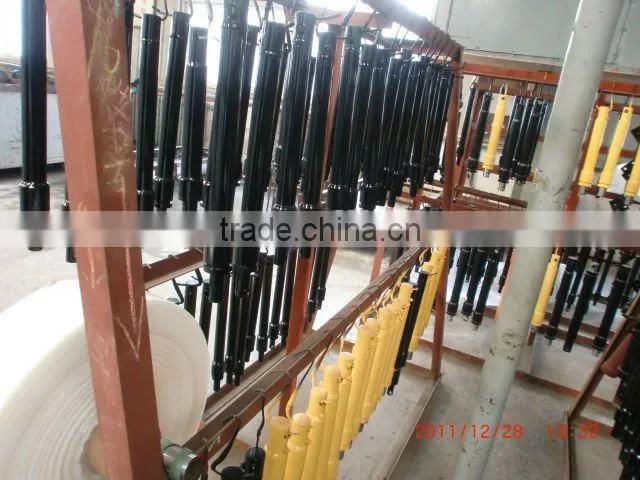

Our factory:

double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



Our Equipment:

double action hydraulic cylinder for log splitter tie rod hydraulic cylinder





double action hydraulic cylinder for log splitter tie rod hydraulic cylinder





double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



double action hydraulic cylinder for log splitter tie rod hydraulic cylinder



Visiting guests:

double action hydraulic cylinder for log splitter tie rod hydraulic cylinderdouble action hydraulic cylinder for log splitter tie rod hydraulic cylinder



If you have other question, pls don't hesitate to contact me anytime.

Name: Bonnenul Li



Skype: hui982452701


Call: +86-18553281195
