Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Double Acting Steel Lift Ram Hydrualic Cylinder
US$ 10 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Nonstandard
Structure:
Series Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-way Role Lift Truck Hydraulic CylinderUS$ 10 - 50MOQ: 10 Pieces -
Tie Rod Hydraulic Cylinder Used for Agricuitural MachineUS$ 19 - 60MOQ: 10 Pieces
-
Hydraulic Cylinders of Mechanical UsageUS$ 50 - 100MOQ: 2 Pieces
-
Double Action Hydraulic Cylinder for Log Splitter Tie Rod Hydraulic CylinderUS$ 10 - 100MOQ: 1 Piece
-
ASAE Agricultural Products Tie-rod Hydraulic CylinderUS$ 10 - 100MOQ: 10 Pieces
Standard or Nonstandard
Nonstandard
Structure
Series Cylinder
Power
Hydraulic
Body Material
Steel
Maximum Stroke
3000
Shaft Diameter
500
Place of Origin
Shandong, China
Model Number
wt-292
Brand Name
wantong
Specifications
ram hydrualic cylinder1)bore:50-1000
2)ISO9001:2008 quality certificate
3)26years expirence own factory
Tie-rod hydrualic cylinder

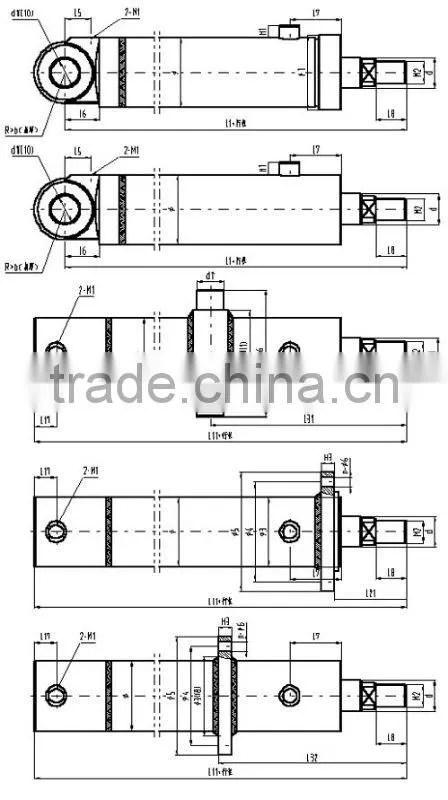

DIMENSION:
2T series
| Dimension | (Unit: inch) | ||||||||||||||
| Non-ASAE Models | |||||||||||||||
| Bore | A | B | C | D | E | F | G | H | J | K | P | Q | Port | Tie Rod | Rod Thread |
| 2" | 10 1/4" | 2 3/4" | 1 1/64" | 2.0" | 2.0" | 2 1/16" | 4 3/16" | 1 1/8 | 2 1/2 | 2 1/2 | 1 1/8 | 2 1/8 | 3/8"NPTF | 3/8" | 1 1/8-12UNF |
| 2.5" | 10 1/4" | 3 1/8" | 1 1/64" | 2.0" | 2.0" | 2 1/16 " | 4 3/16" | 1 1/8 | 2 1/2 | 2 1/2 | 1 1/8 | 2 1/8 | 3/8"NPTF | 3/8" | 1 1/8-12UNF |
| 3" | 10 1/4" | 3 3/4" | 1 1/64" | 2.0" | 2.0" | 2 1/16 | 3 15/16" | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 1/2" | 1 1/4-12UNF |
| 3.5" | 10 1/4" | 4 1/2" | 1 1/64" | 2.0" | 2 1/4" | 2 1/16 | 3 15/16" | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 4" | 10 1/4" | 5 1/8" | 1 1/64" | 2 1/4" | 2 1/4" | 2 1/16" | 3 7/8 " | 1 1/8 | 2 5/8 | 2 5/8 | 1 1/8 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 4.5" | 10 1/4" | 5 1/4" | 1 1/64" | 2 1/4" | 2 5/8" | 2 1/16" | 3 7/8" | 1 1/4 | 3 | 3 1/2 | 1 1/4 | 2 1/8 | 1/2"NPTF | 5/8" | 1 1/4-12UNF |
| 5" | 12 1/4" | 6.0" | 1 1/64" | 2 7/8" | 2 5/8" | 2 1/4" | 4 11/16" | 1 1/4 | 3 | 3 1/2 | 1 1/4 | 2 1/8 | 1/2"NPTF | 3/4" | 1 1/4-12UNF |
| ASAE Models (The dimensions listed below are different from non-ASAE cylinders) | ||||||
| Bore | A | A | C | C | G | G |
| (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) | |
| 2" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 2.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 3" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 3.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 4" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 7/8" | 9 1/8" |
| 4.5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 5/8" | 8 7/8" |
| 5" | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 4 11/16" | 7 15/16" |
OUR HISTORY:
We are established in 1985year,our company holds the business tenet of 'talents as motivation ,technology as basis,management for benefits and quality for market',with the quality principle of 'satisfying and exceeding clinets' requirements'and enterprise spirit of 'working hard,competition,unity&corporation,dedication'.with abundant production experience,advanced business tenet,standard management system and high technology,our company is a specializing designer and manufacturer of hydraulic power unit and hydraulic pressure cyliner of varieties of specifications.
Welcome you visit our factory,we can design the product based on your drawing.
Or call me;008615966901802
below is our factory pic.for your ref:

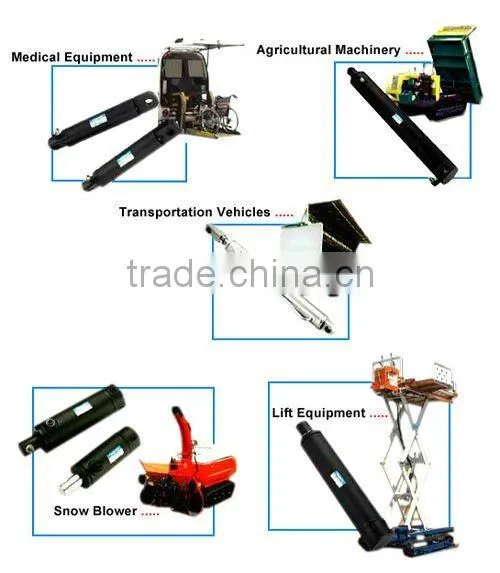

FOR USING:
OUR WORKING ROOM:
OUR FACTORY OUTLOOK:

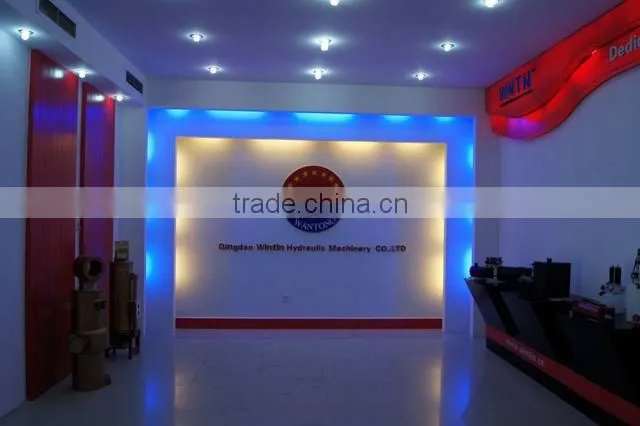

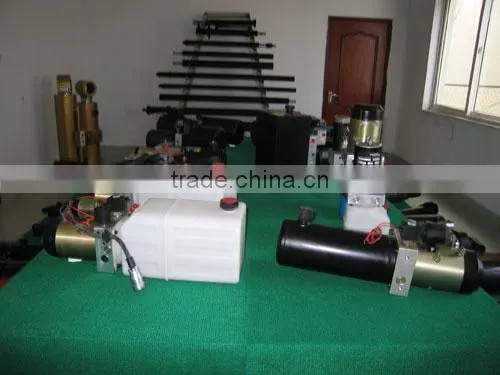

OUR SHOW ROOM:

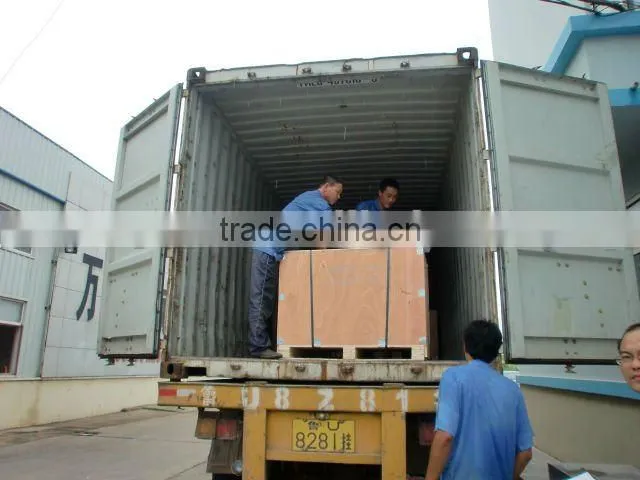

Delivery pic:
