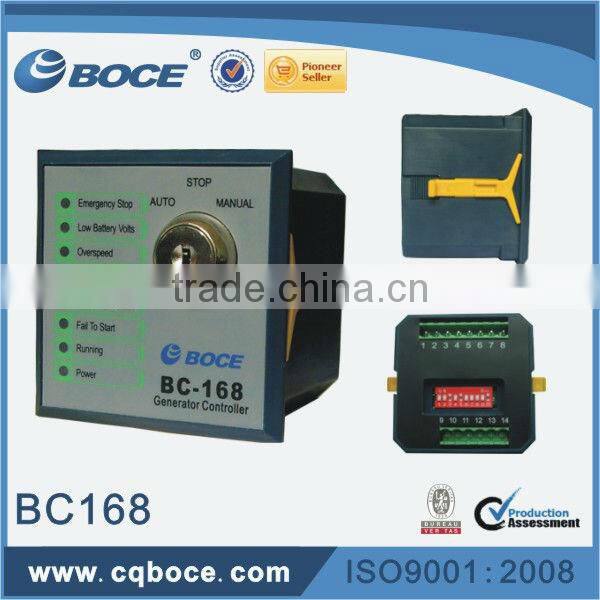

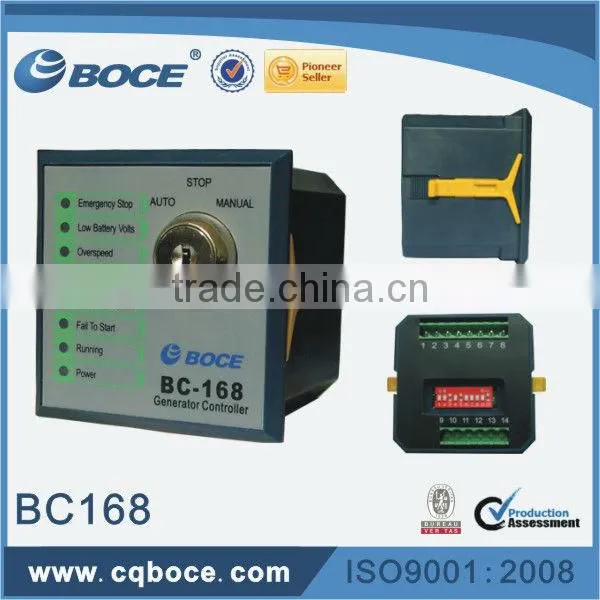

Generator Controller BC168
The module BC-168 is a low cost Generator controller equipped with Auto Start/Stop functions, protections, alarm and annunciation etc. Monitoring and protections include: Running, Over Speed, High Water Temperature, Low Oil Pressure, Over Crank, Emergency Stop, and Low Battery. All outputs function executed by a set of traditional relays which make it possible to support heavy power handling capability. It is designed to control engine by a key switch. User only needs to switch the key to the Manual position then the system will carry out whole functions according your settings. Besides, the BC168 applied with a high security continental terminal connector that provides easy plug-in and removal.
Same functions as GTR 168
1, It is with small size, good function as well as low price;
2, It is with auto and manual start modes;
3, It can be used for different generator set by setting dial-up switch on the back of the model.
Function Description
The module BC-168 is a low cost Generator controller equipped with Auto Start/Stop functions, protections, alarm and annunciation etc. Monitoring and protections include: Running, Over Speed, High Water Temperature, Low Oil Pressure, Over Crank, Emergency Stop, and Low Battery. All outputs function executed by a set of traditional relays which make it possible to support heavy power handling capability. It is designed to control engine by a key switch. User only needs to switch the key to the Manual position then the system will carry out whole functions according your settings. Besides, the BC168 applied with a high security continental terminal connector that provides easy plug-in and removal.
Panel:
1.LED
Emergency Shutdown
Low Battery Warning
Over Speed Shutdown
High Coolnat Temp Shutdown
Low Oil Presssure Shutdown
Fail To Start
Running
Power
2.Key Switch
OFF: Stop running engine / Reset Alarm.
ATS: Auto Start function by detected ATS terminal l2.
MANUAL: Manual start engine
Protections and Parameters:
Auxiliary shutdown protection: 1 Sec,N.C
Low battery warning: 5sec,10.5 / 21 VDC
Over speed protection: 2sec, 55/66 Hz
High water temp. protection: 2 sec, N.O
Low oil press. Protection:2 sec, N.C/N.O
Over crank: 3 attempts
Cranking speed up limited: 0.5sec 16 Hz
Protection hold-off timer: 5 sec
Specifications:
DC Supply |
DC 8-36V |
Power Consumption |
MAX 5 W |
Measuring Frequency |
0-80 Hz(AC Volt: 25 V - 300 V |
Relay Output |
Start Output: 2 A |
Valve Output: 2 A | |
Idle/Pre-heat Output: 2 A | |
Alarm Output: 2 A | |
Stop Output: 2 A | |
Dimension(W*H*D) |
72mm*72mm*58mm |
Panel Cut-Out(W*H) |
68mm*68mm |
Ambient Temperature Range |
-10°C - 85°C |
Weight |
200g |
OEM is available.
Why choose us------?
In line with the quality=life and belief in people-oriented,
continuous improvement management. Coupled with honesty, pragmatism.
Innovation and spirit of the pursuit of the perfect blog for the word each generator to
Create an intelligent heart.
| Generator controller | ||
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |

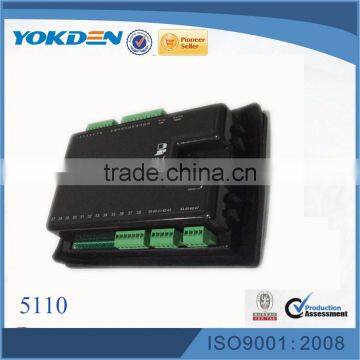

| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-(PC Connector) |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC Connector) |
| 23 | Generator controller | BC720(PC Connector) |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
Here are the advantages of our company:
If you are interested in any of them, please feel free to contact us for more information. ^_^
