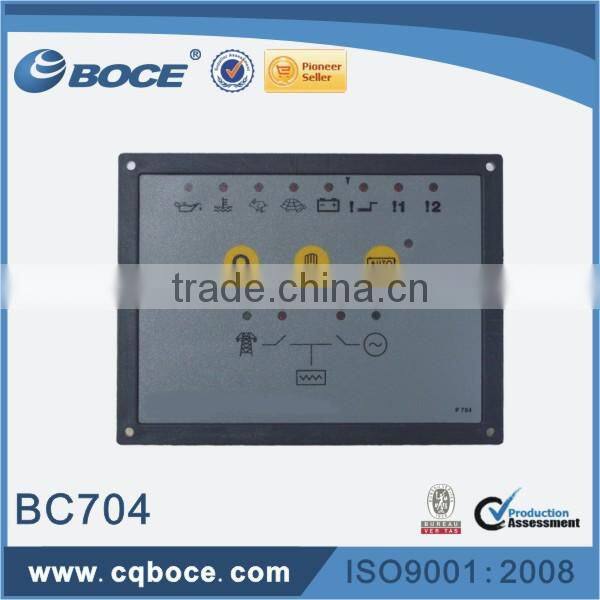

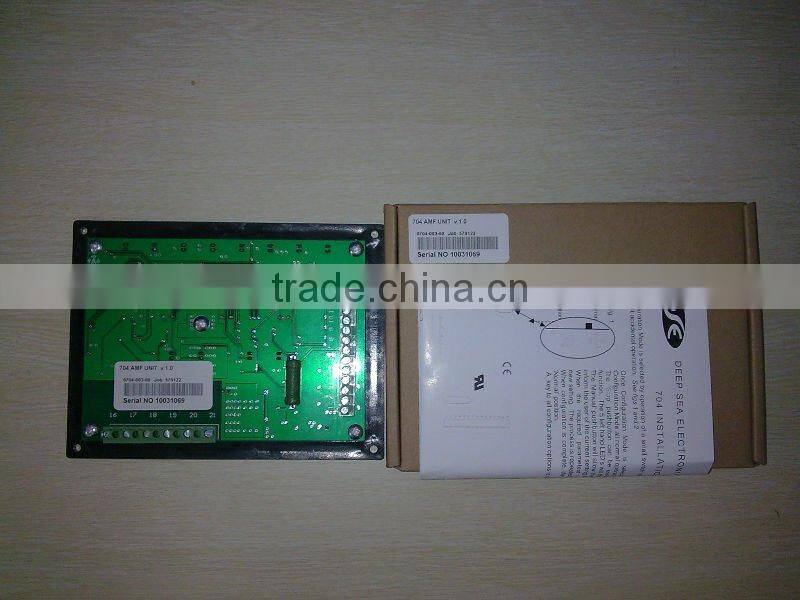

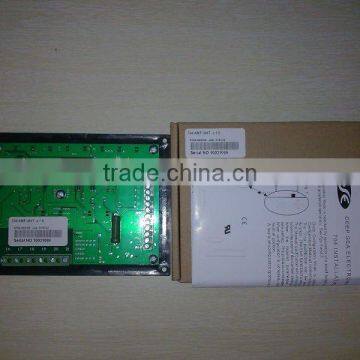

Generator Controller / Control Module / Parts 704
Generator Controller / Control Module / Parts 704
Main Features:
Automatic mains (utility) supply monitoring
Automatic shutdown when fault conditions are detected
Manual start
Engine pre-heat
Engine monitoring and protection features
Protected solid state (PSS) outputs
Front panel mounting
Front panel programming
Remote start
LED indicators
Configurable timers
Configurable outputs
DC Supply: |
9 to 33 V Continuous. |
Cranking Dropouts: |
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries. |
Alternator Input Range: |
15 - 305 V AC RMS |
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed. |
Magnetic Input Range: |
0.5 V to +/- 80 V |
Magnetic Input Frequency: |
2300Hz to 6000 Hz at rated engine speed. |
Start Relay Output: |
16 Amp DC at supply voltage. |
Run Relay Output: |
16 Amp DC at supply voltage. |
Alarm Output: |
1 Amp DC at supply voltage. |
Dimensions: |
72 X 72 X 118.5 (Excluding Key-switch) |
Operating Temperature Range: |
-30 to +70°C |
Installation: |
Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors. |
Calibration: |
Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the module. |
Benefits:
Transfers between mains (utility) and generator power
On-site module configuration to match user requirements
Multiple engine parameters are monitored simultaneous
There are also new products provided which are developed by our own engineers.
| Generator controller | ||
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-PC Connector |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC Connector) |
| 23 | Generator controller | BC720(PC Connector) |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
