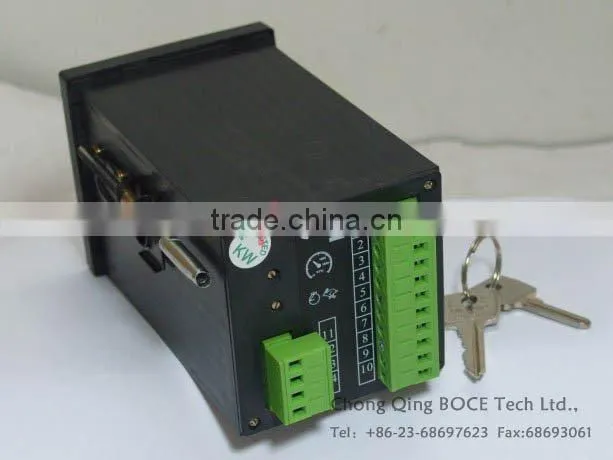

Electrical Genset Generator Controller 501K
Electrical Genset Generator Controller 501K
The model 501K is a Manual Engine Control Module, which is designed to manually control the engine via a key switch on the front panel. The module is used to start and stop engine, indicating fault conditions, automatically shutting down engine and indicating engine failure by LED giving true first up fault annunciation.
SPECIFICATION
DC Supply: |
9 to 33 V Continuous. |
Cranking Dropouts: |
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries. |
Alternator Input Range: |
15 - 305 V AC RMS |
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed. |
Magnetic Input Range: |
0.5 V to +/- 80 V |
Magnetic Input Frequency: |
2300Hz to 6000 Hz at rated engine speed. |
Start Relay Output: |
16 Amp DC at supply voltage. |
Run Relay Output: |
16 Amp DC at supply voltage. |
Alarm Output: |
1 Amp DC at supply voltage. |
Dimensions: |
72 X 72 X 118.5 (Excluding Key-switch) |
Operating Temperature Range: |
-30 to +70°C |
Installation: |
Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors. |
Calibration: |
Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the module. |
There are also new products provided which are developed by our own engineers.
| Generator controller | ||
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-PC Connector |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC Connector) |
| 23 | Generator controller | BC720(PC Connector) |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
Why Choose Us?
1.Gold Supplier on Alibaba for 7 Years → Reliable Supplier with Good Reputation
2.Factory Direct Sale → Competitive Price & Full Stock
3.Quality Control → High Quality
4.Low MOQ → Accept Small Order
5.Accept OEM → Produce Products as Customers' Requirements
6.Fast Delivery → Delivery within 3 Working Days
7.Various Payment Methods → Easy to Pay
8.Changing or Refunding → Accept Returns
OEM service is acceptable.
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time
more goods:
For more information, please feel free to contact us.^_^
