720 generator controller remote control ats
- 1000 Piece / Pieces per Month
- ChongqQing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | BOCE, BOCE | |
| Model Number | 720 |
Product Description

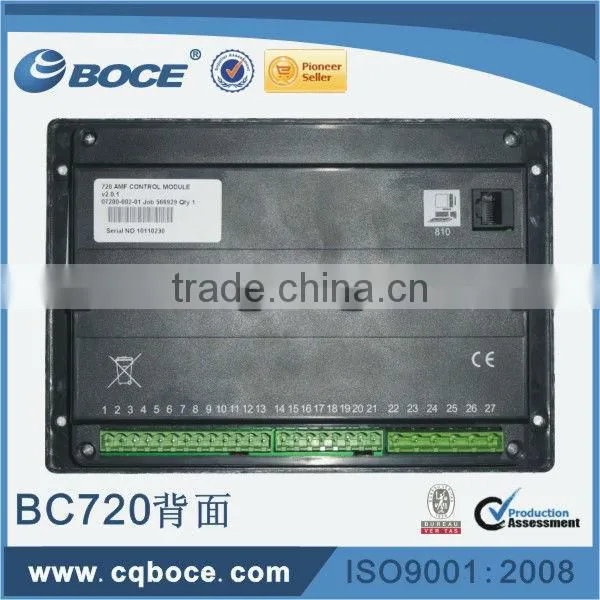

diesel generator controller 720
The BC720 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts. The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicates the exact fault on the modules LCD display or relevant LED indicator. The module can be configured using the front panel or via the 810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away.
Feature:
- PC/Front panel configuration
- Digital and analogue inputs
- Digital outputs
- Automatic shutdown or warning when fault conditions are detected
- Automatic/Manual/Remote start
- Engine pre-heat
- Engine monitoring and protection features
- Protected Solid State (PSS) outputs
Specification
| BC720 | |
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50 mS, providing supply was at least 10 V Before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. |
| Max Current | Operating 180mA at 12V, 190mA at 24V ; Standby 145mA at 12V. 150mA at 24V |
| Mains Sensing Input Range | 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) |
| Alternator Input Range | 35V(L-N) to 277V(L-N) AC (+20%) 50Hz - 60Hz (min 15V AC) |
| Auxiliary Output: | Solid state 2.4A DC at supply voltage. |
| Fuel/Start Output: | Solid state 3.4A DC at supply voltage |
| Generator C.T. | 5A secondary 0.5VA |
| Operating Temperature Range: | -30 to +70°C |
| Name | Model No |
| Generator controller | GC30D |
| Generator controller | BC118 |
| Generator controller | BC168 |
| Generator controller | BC180 |
| Generator controller | DC20D |
| Generator controller | DC40D |
| Generator controller | BC501K |
| Generator controller | BC520A |
| Generator controller | BC3000 |
| Generator controller | BC5110 |
| Generator controller | BC5110- |
| Generator controller | BC5120 |
| Generator controller | BC5210 |
| Generator controller | BC5220 |
| Generator controller | BC701MS |
| Generator controller | BC701K-AS |
| Generator controller | BC702MS-HC |
| Generator controller | BC702AS-HC |
| Generator controller | BC703 |
| Generator controller | BC704 |
| Generator controller | BC705 |
| Generator controller | BC710 |
| Generator controller | BC720 |
| USB | P810 |
| Step Speed controller | ESM3012 |
| Actuator | ASM5676 |
| Actuator | ASM5654 |
| Engine Control Box | BX341 |
| Engine Control Box | BX40 |
| Generator set Control Box | BX5XXX ORIGINAL VERSION |
| Engine interface card | EIM630-465/466 |
