Help CenterSs304L Knitted Wire Mesh
Related Products
Specifications

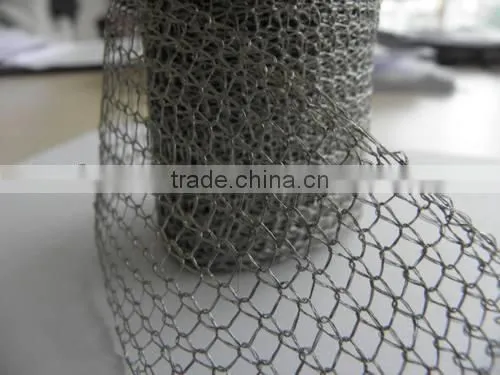

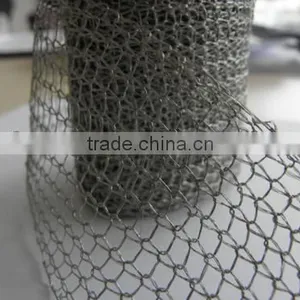

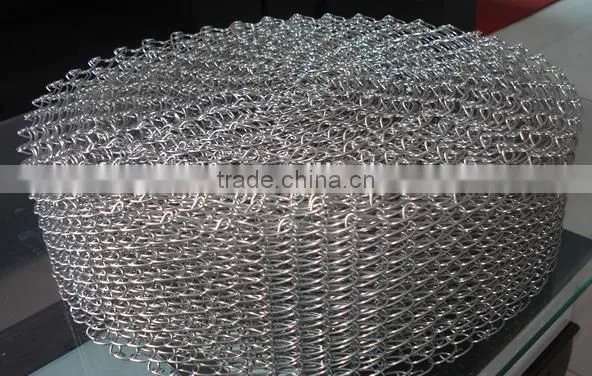

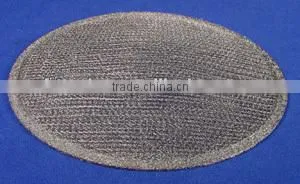

ss304L Knitted wire mesh1.ISO9001certification
2.heat-resisting,
3.wear-resisting
4. resisting acid
Wire-mesh demister(or mist eliminator)is mainly used to separate drops of the diameter between 3μ M to 5μ M. When the gas with liquid drops rises at a certain speed, passing through the wire mesh on the grid bar, the inertia of the rising drops make them collide with the wire and then adhere to the surface of the wire. The drops on the wire will diffuse and subside.
It makes the drops form bigger ones and then flow along the wire to the intertexture of the wire. Because the wire can be humidified, and because of the surface tension of liquid and the capillarity effect of the wire, the drops will become bigger and bigger. They will be separated and fall when their own weight exceed the resultant force of buoyancy of the rising gas and surface tension of liquid. They will flow to the device of the container in the backward position.
As long as the speed of the gas is properly controlled and with other proper condition, the efficiency of foam remove will be as high as 97% after the gas pass through wire-mesh demister. The purpose of removing foam will be achieved completely.
grade:
1 Standard type of dense knitted wire mesh: 40-100, 60-150, 105-300, 140-400, 160-400, 200-570
2 High-efficiency type of dense knitted wire mesh: 60-100, 80-100, 80-150, 90-150, 150-300, 200-400, 300-600
3 High-penetration type of dense knitted wire mesh: 20-100, 30-150, 70-400, 100-600, 170-560
Features:
the opening can be square,regular or special opening. normally,this kind of wire mesh has standard opening sizes,uniform opening,good permeability and high strength. The raw materials should be chosen according diffierent environment and applications
Use: 304,316 stainless steel filter mesh used in mine,oil,chemical,food industry,pharmaceutical industry machine producing.
Material:
galvanized wire, copper wire, SS304, SS304L, SS316, SS316L and more
