Help CenterCyclone Diplegs Use Hex Metal
Related Products
Specifications
stainless steel hex metal1:ISO9001:2000
2:material:aluminum
3:thickness:0.5-10mm
4:sheet size:1*2m,1.22*2.44m
2.Hole length:2cm-6cm
3.Mesh thick:1cm-2.5cm
4.Board thickness:1mm-3mm
Plate Width |
Aperture |
Plate Thickness |
Weight |
8 |
40x40 |
1.20 |
4.0 |
10 |
40x40 |
1.20 |
5.0 |
15 |
50x50 |
1.50 |
7.6 |
15 |
50x50 |
1.70 |
9.0 |
20 |
50x50 |
1.75 |
12.0 |
20 |
50x50 |
2.00 |
13.0 |
25 |
50x50 |
1.75 |
15.2 |

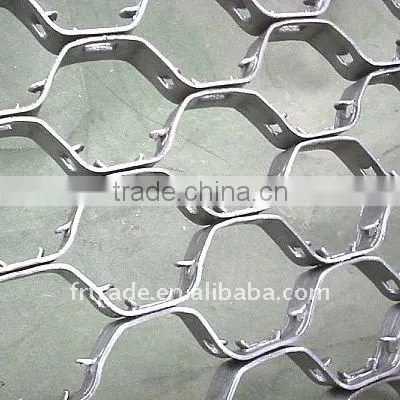

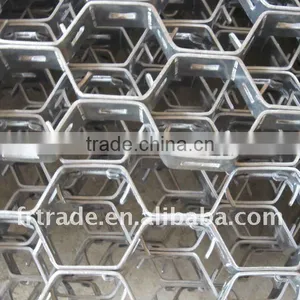

Application: Tortoise Shell Mesh has gotten extensive application in chemical industry,petroleum,power generation,etc.It appears good performance ,it is a hexagonal hole mesh ,with bar steel pressed and punched,three are small holes in every border for interflowing between the holes .

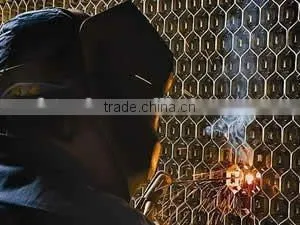

The mesh is welded on cyclone dust collector or on the inside wall of the cylinder,poured refractory material.So ,it has prolonged lifetime.The refractory material does not fall off to blockading the discharge hole .
Product synopsis: This product for my factory new development's big putty fingernail
hexsteel, the thermostable indefinite form lining material uses the hexsteel
reinforcement generally, the carbon steel (A3F) hexsteel, the peculiar circumstance
uses the 0Cr13 material quality, when the use the first hexsteel spot welding in the
boiler or on the hot air flue endophragm, then smudges the fire-proof material.
Add: We can design as your needs,many of mainframe factories cooperate with us to
produce metal parts;we has already supplied kinds of liner metal faburic parts for
many petrifaction equipment making enterprise.our products can be used for petrol
chemical;it is favorable to catalyst equipment as one of liner structures.
