Specifications
2013Best quality 20% off QTJ4-26D production flow chart1)ISO/SGS/BV/CE/TUV certificated
2)High Capacity
3)Easy Operat
2013 Best quality 20% OFF QTJ4-26D production flow chart
1)best price
2)Easy operate
3)ISO/SGS/BV/CE/TUV Certificated
4)High capacity
5)Muti-funcation
Shandong Hongfa Scientific Industrial & Trading Co., Ltd built in 1990, 4 machine manufacture factories in China, 39 branches in the world, and with ISO9001-2008, CE, BV, TUV international certification
(1)Factory informantion of QTJ4-26D production flow chart
| Area | Workshop area: 80-100m2, all factory area 3000m2, the bigger, the better |
| Worker | five |
| Ratio of raw material | cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5. |
| Hollow block weight |
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
|
| Raw material comsumption | 50-70T per day |
| Water consumpting per day | 3%--5% of raw material weight |
(2)Brief introduction of QTJ4-26D production flow chart
QTJ4-26 block machine: used the European advanced flat vibration manufacturing technique for reference, with the lower power; it realizes the super strong vibration effect, mixing every material effectively. And the upper mould vibration compression makes the brick with average density and high strength, as well as the large-scale equipment.
(3)Productivity of QTJ4-26D production flow chart
|
Sample |
Size |
Quantity |
Cycle molding |
Per hour |
Per day |
|
Hollow brick
|
|
400*200*200 |
4 |
26-30s |
400pcs |
4000pcs |
|
400*150*200 |
5 |
24-28s |
500pcs |
5000pcs |
|
color brick |
|
225*112.5*60
|
9 |
20-24 |
900pcs |
9000pcs |
(4)Main technical parameter of QTJ4-26D production flow chart
Molding pieces |
390*190*190 4pcs/mold |
Molding cycle |
26s |
Productivity |
3000-4000 pcs/day |
Vibration frequency |
4200r/min |
Power |
11.25kw |
Dimension |
3600*1700*2560mm |
Pallet size |
880*550*30mm |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite , and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstone , grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road paving, squares, gardens, landscaping, city constructions, etc. |

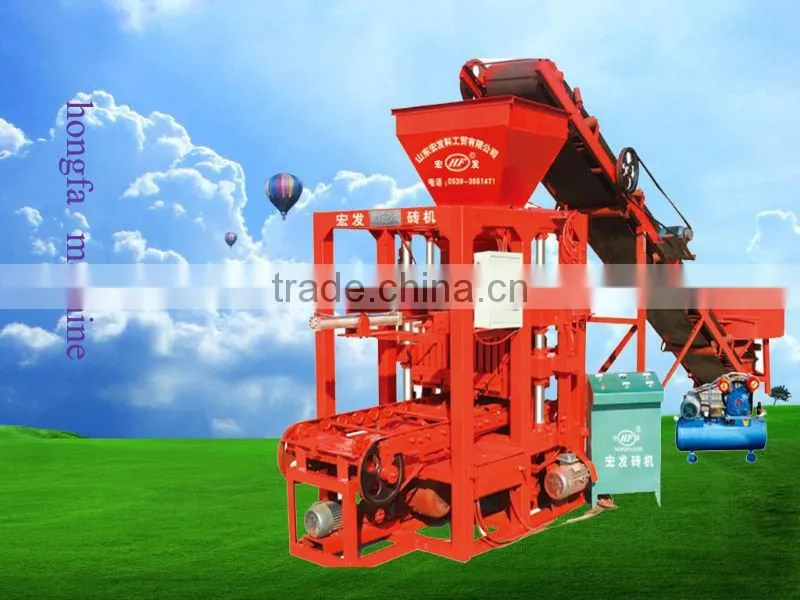

1) Photos of main machine with details

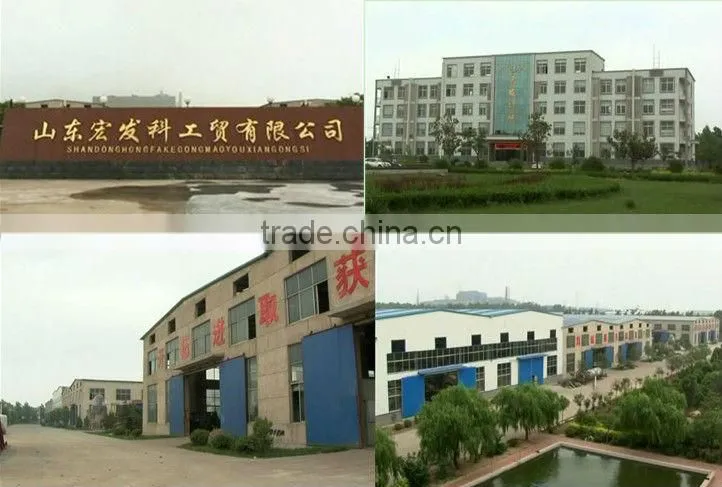

(2) Four machine manufacure factories in China and 39 branches all over the world
3) This machine can make all kinds of blocks by changing mould
4) Customers from all over the world
5) Exquisite techniques with reliable quality assurance
6)Four factories assure mass production of timely shipment capacity and excellent after-sales service
7)International Certification: ISO, SGS, BV, CE
Warmly welcome to call us, email us, cooperation and selection of quality products,
Contact person: Shirley Gu
Skype: shirley-machine
Phone: 0086 159 639 06212
QQ: 744204613
Promise
·Welcome to our website,you will find your best like styles!
·Wanna you see,just wanna you do now!
·Your satisfaction is necessary to our success.
·Our goal is to provide you with the best level of customer service, and we welcome your comments and suggestions
