Specifications
1)Multi-function2)ISO/ CE certification
3)Fully-automatic
4)High capacity
5)Fault diagnosis system,Controlled PLC
QT12-15 Automatic Brick Making Machine
(1) Productivity
|
Size |
Quantity |
Cycle moulding |
Per hour |
Per day |
Hollow brick |
400*200*200 |
12 |
20-25s |
1728-2160pcs |
17300-21600pcs/day |
Porous brick |
240*115*90 |
35 |
15-20s |
5400-7200pcs |
54000-72000pcs/day |
Standard brick |
240*115*53 |
62 |
15-17s |
12700-14400pcs |
12700-14400pcs/day |
(2) Main Technical Parameter (QT12-15)
Dimension |
9350*2520*2950mm |
Molding Cycle |
12--25(s) |
Productivity |
|
Vibration frequency |
4800r /min |
Exciting power |
68KN |
Pallet Size |
1300*900*30mm |
Overall Power |
44kw |
Total Weight |
|
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
3 Main Features
|
1,particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. |
| 2.Adopting synchronous vibration insures the products making average. The frequency can change according to different material. Low frequency in feeding material, high frequency vibration, makes the different material to have a optimal vibration way. |

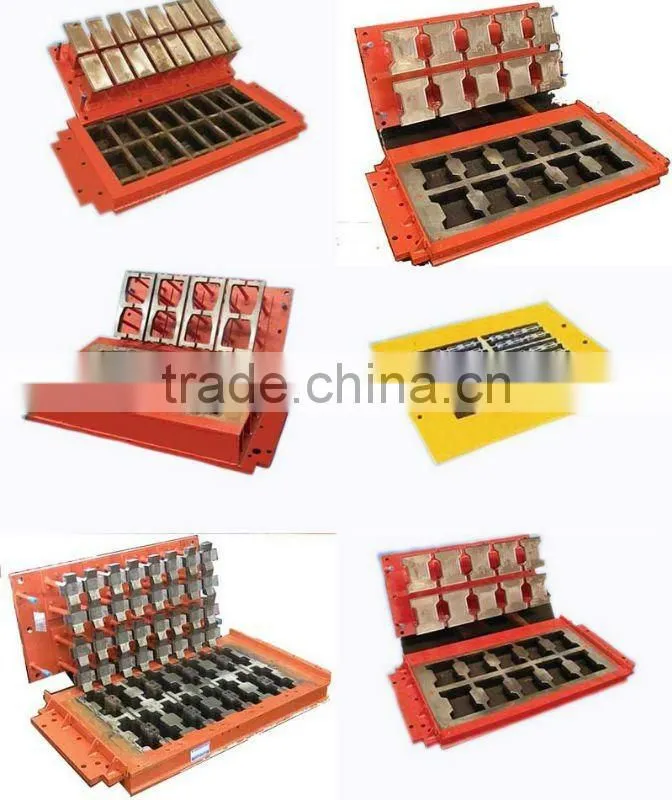

| 3.Using unique synchronous mechanism,which can effectively assure the mould box consistent with the height of brick around it; Scientific vibration system to ensure transmitted vibration force to each part of the mould box in equality,achieve materials’ feeding quickly and shorten molding cycle |
|
4.Strong vibration force,can reach about 68KN in a moment to ensure the finished brick with high- strength and keep the lower damage rate. |
|
5,The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long- distance controlling system, it can achieve scrutiny, controlling diagnosis. |
| 6.Imported electrical appliances and hydraulic pressure components to ensure the equipment stably working; Industrial computer deposits dozens of production formulas for users to choose. Equipped with automatic problem analyze system, intelligent analysis on the overall running status of the equipment. |

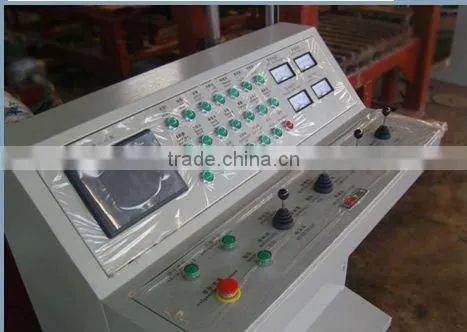

4.Control system
It adopts PLC intelligent control. and Control system is equipped with complete logic control, production
program, malfunction diagnosis system and remote control function. So it doesn’t need a professional
person to be the operator.
