Specifications
QT4-15C automatic hydraulic cement block making machinery 1PLC intelligent control2color face material feeding sestem

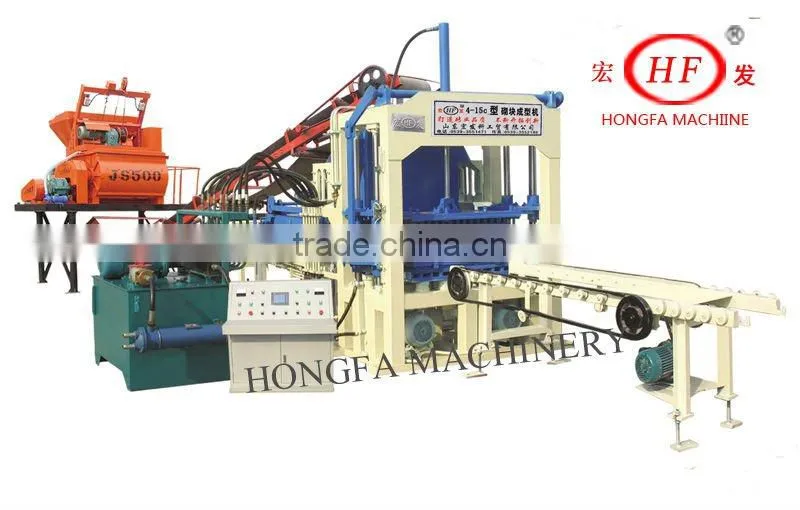

Automatic control professional color face paver block moulding machine / cement colour interlocking bricks making machines
|
Main Technical Specifications Automatic control professional color face paver block moulding machine / cement colour interlocking bricks making machines | |
Overall Dimension |
7100×1600×2610(mm) |
Rated pressure |
16MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
4600 rolls/minute |
Motors Power |
27.5KW |
Pallet Size |
1020*570(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
INTRODUCTION
Automatic control professional color face paver block moulding machine / cement colour interlocking bricks making machines
1. Control system: PLC intelligent control. Main-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. It doesn’t need a professional person but only need a simple training to the operator.
2. Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
3. Optional: Color face material feeder (layered material feeding)
4. Equipped with color face material feeding device, it could make various color face bricks , through-body Environmental protection bricks, road curb rocks, hydraulic blocks and sod bricks and so on.Main technical parameters
PRODUCTION
utomatic control professional color face paver block moulding machine / cement colour interlocking bricks making machines
|
Sample |
Size(mm) |
Quantity |
Cycle molding |
Per hour |
Per day |
|
Hollow brick
|
|
400*200*200 |
4 |
15-20s |
960pcs |
96000pcs |
|
400*150*200 |
8 |
15-20s |
1920pcs |
19200pcs |
|
Color brick |
|
225*112.5*60 |
14 |
18-22s |
3360pcs |
26800 pcs |
Color brick |
|
200*100*60 |
18 |
18-22s |
3600pcs |
28800pcs |

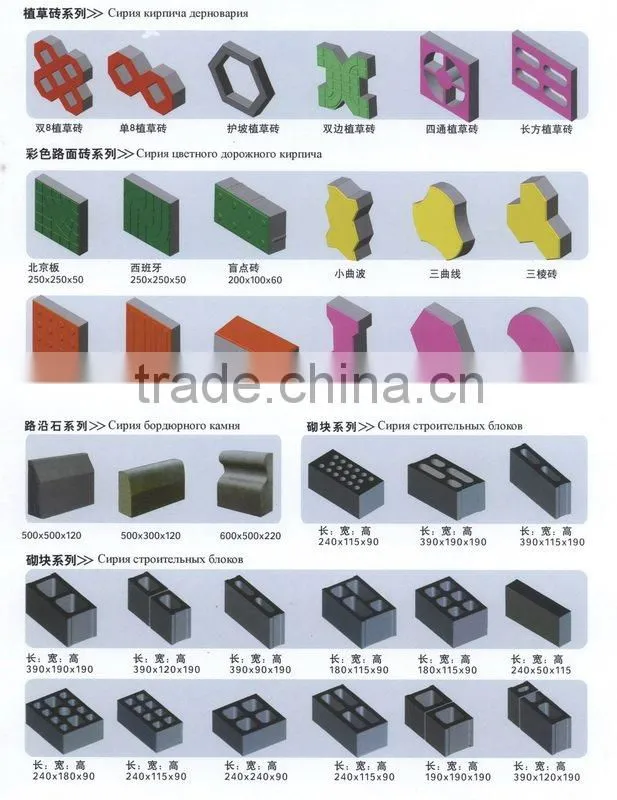

Finished Products Sample
Automatic control professional color face paver block moulding machine / cement colour interlocking bricks making machines
Six reasons for choosingShandong Hongfa
|
· Famous brand in China
|
|
· After-sale services all over the world
|
|
· One of ten influence quality and reputation in China
|
|
· ISO9001:2000 quality system certificate
|
|
· The leader of block machine production manufacturer and sale in China
|
|
· Reach the standard of international quality requirements
|
Please feel free to contact us for more information or any help .
