Specifications
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq strong quality competitive pricelarge capacity block machine full-auto block plant lightweight blocks making machine in Iraq
for< hollow bricks ><porous bricks ><solid blocks ><color pavers ><curbstones >

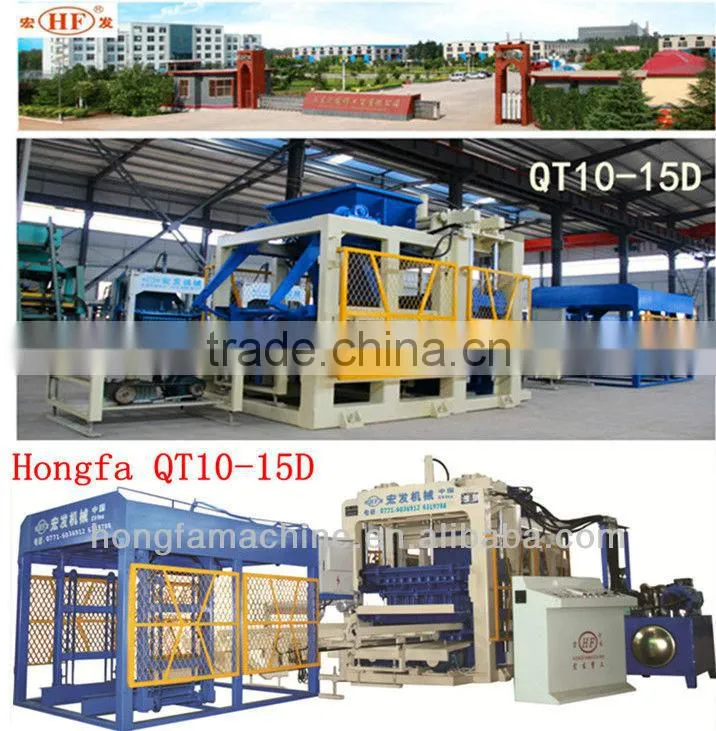

QT10-15D type:
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
Advantage :
A. The frame of the host machine is used hight quality 20*20CM square tube steel, all from the best steel supplier Laigang, Jinggang.
B. Import the most advanced Europe hight tech, apply the universal joint in the machine,so the machine running more stable and the motors not easy to burn.
C. To use the most famous Hydraulic brand - Calyca from Taiwan.
D. The eletrical components and touch screen are all used imported Siemens.
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
| Main Technical Specifications | ||||||
| Overall Dimension | 7500×2500×3020(mm) | |||||
| Rated pressure | 21MPa | |||||
| Main vibration form | Platform vibration | |||||
| Cycle Time | 15-20seconds | |||||
| Vibrating Frequency | 2800-4500 rolls/minute | |||||
| Vibration | 100KN | |||||
| Motors Power | 49KW | |||||
| Weight | 11T | |||||
| Pallet Size | 1220*900(mm) | |||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
Productivity | ||||||
| Brick Style | Size mm | Cycle molding | QTY /Mould | Per hour | Per 8 hours | |
| Hollow brick | 400*200*200 | 15--20S | 10 | 1800~2400pcs | 14400-19200pcs | |
| Prorous brick | 240*115*90 | 15--20s | 27 | 4860~6480pcs | 38880-51840pcs | |
| Solid block | 240*115*53 | 15-17s | 56 | 11850~13440pcs | 94800-107520pcs | |
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
Blocks sample:
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
Production line design :
QT10-15D major block machine is an automatic type , the production line can be designed by your ideas and local situation .The support equipments can be chosen in each section to make production line according to your exact need.If you like to share you opinion , i can help you make a design

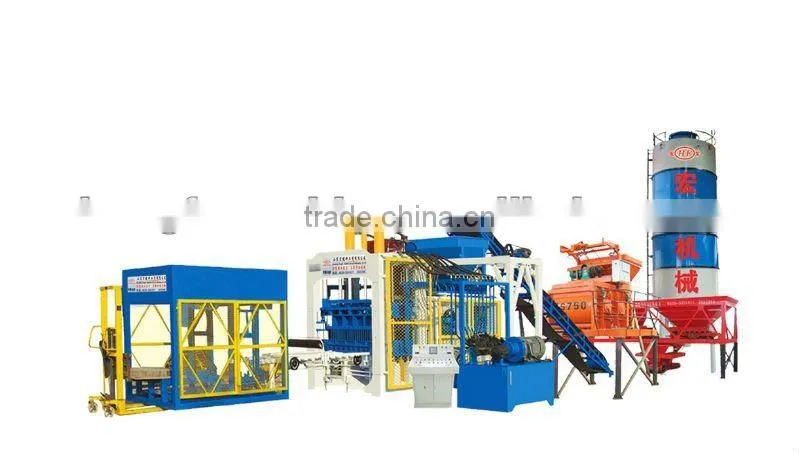

Simple production line :
kind one :
1,Major QT10-15D block machine
2,JS750mixer
3,8m conveyor belt
4,Pallets
Kind two:
1,Batching machine PLD1200
2,JS750mixer
3,8m conveyor belt
4,Major QT10-15D block machine
5,Stacker
6,manual forklift
7,Pallets

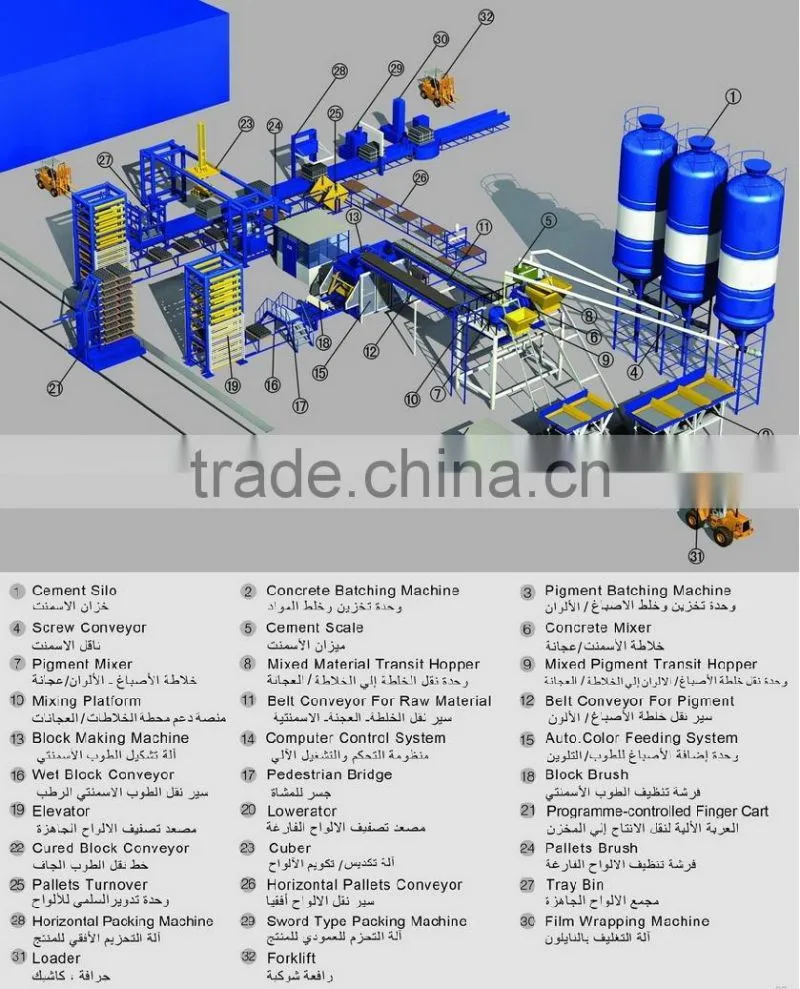

Fully automatic production line sketch one :

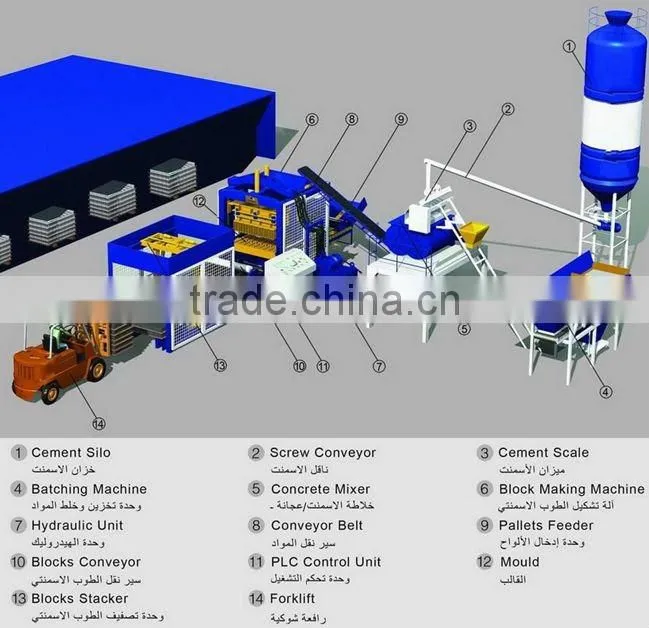

Fully automatic production line sketch two :
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
Land and labour need :
Needs 5-6 labour from material mixing to finished blocks transfering , the working aera needs 120-200m2 (simple production line), the raw material store and finised blocks store depends on the local situation.
Service :
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours .
1.Delivery time:within 30 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers. and the buyer only pay for the airtickets, the foods and the hotel for our engineer .
Shipping container need :
Major QT10-15D block machine,JS750mixer,and 8m conveyor belt can be put in one 40HQ container when delivery,if need other support equipments cubic meters,please kindly let me know,i will help you check.
large capacity block machine full-auto block plant lightweight blocks making machine in Iraq
Details quality achieves strong body !
Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 120 countries .
Thanks for your time !
It is our pleasure to be of service to you my friend . Your enquiry is great help for us !
Sale manager : Amy Liu MB:0086 13969983506 Skype: donghaowen66
